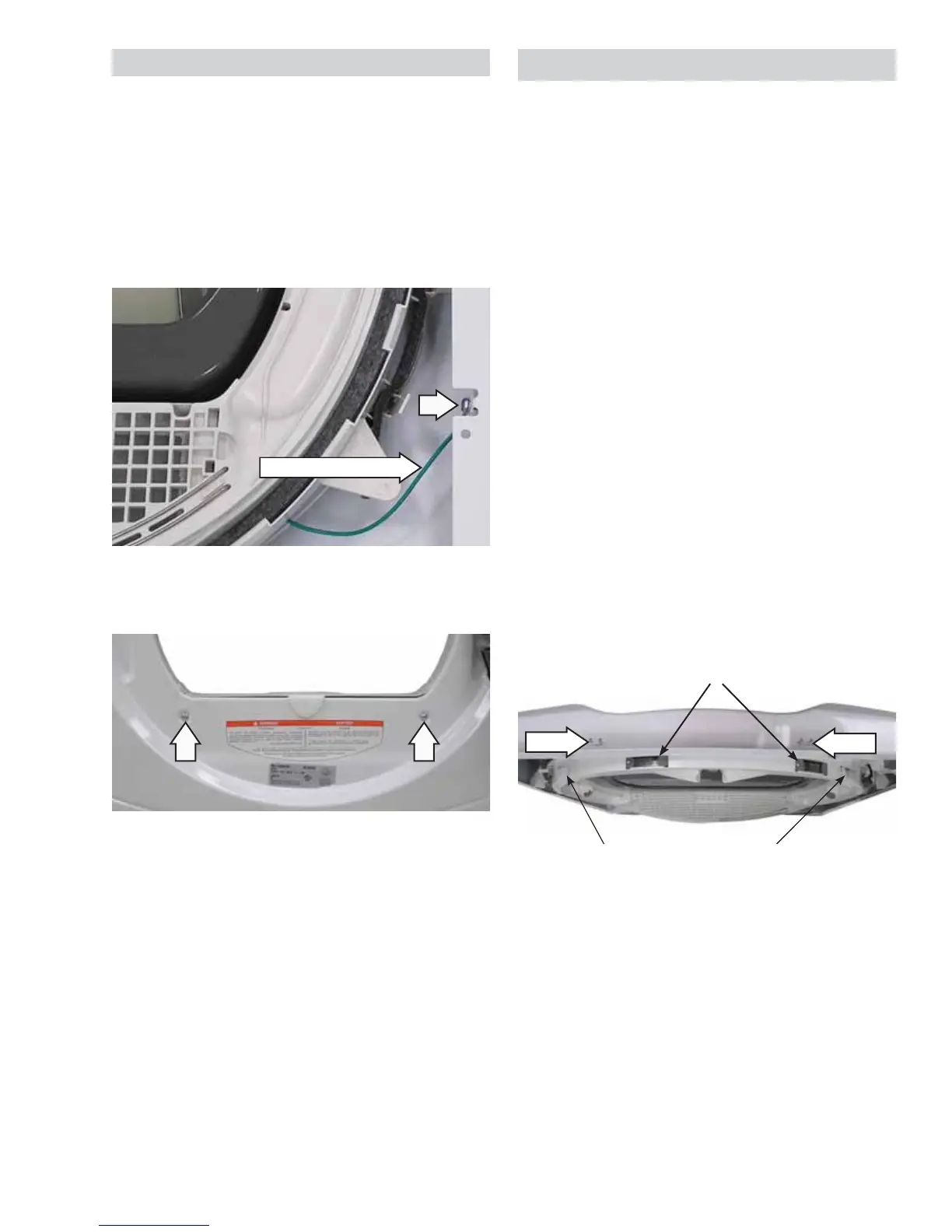

To remove the drum slide assembly:
1. Remove the air duct assembly. (See Air Duct
Assembly.)
2. Grasp each side of the drum slide assembly
and unsnap from the front panel. Pull the top
of the drum slide assembly down and inward to
release the assembly from the 2 tabs located at
the top of the front panel.
Drum Slide Assembly
The drum slide assembly is located on the back
side of the front panel and utilizes 4 drum slides.
Two white outer slides are used as guides, and 2
dark color center (top) slides are used to support the
weight of the drum. When replacing the slides, the
dark-colored support slides must be used to replace
the top support slides. Guide slides may also be
replaced with support slides.
Caution: Do not replace the center (top) support
slides with the white guide slides. Damage to the
dryer will result.
Note: To replace the individual drum slides, follow
steps 1-7 of the front panel assembly. (See Front
Panel.) Tilt the front panel out and remove the drum
slide.
Support Slides
Guide Slide Guide Slide
Tab
Tab
3. Remove the single Phillips-head screw that
attaches the drum light receptacle and remove
the receptacle from the drum glide assembly.
Caution: Upon reassembly, ensure that the door
switch, drum light and sensor wiring are retained
and routed properly to avoid contact with the drum.
Air Duct Assembly
The air duct assembly houses the lint fi lter, steam
nozzle, trap duct felt seal, and the 2 sensor rods. It is
located on the back side of the front panel.
To remove the air duct assembly:
1. Remove the front panel. (See Front Panel.)
2. Remove the single Phillips-head screw that
attaches the sensor ground wire to the cabinet.
Sensor Ground Wire
3. Remove the 2 Phillips-head screws that attach
the air duct assembly to the front panel.
4. Grasp each side of the air duct assembly and
unsnap the air duct from the front panel.
Caution: Upon reassembly, ensure that the door
switch, drum light, and sensor wiring are retained
and routed properly to avoid contact with the drum.
Note: The trap duct felt seal can be replaced by
extracting the seal from the channel located on the
air duct assembly.
