– 39 –

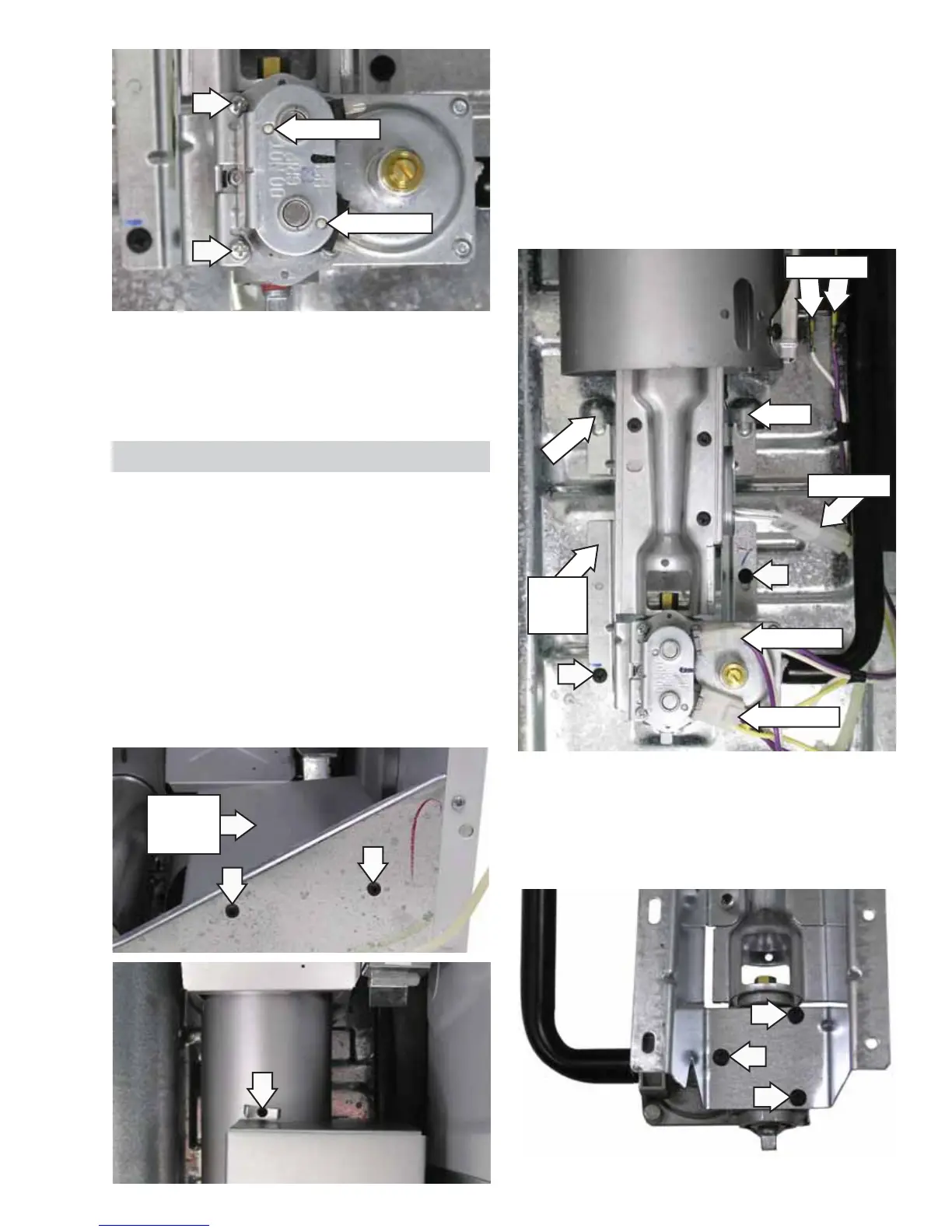

6. Lift the bracket vertically. Lift coils to remove.
Note: Upon reassembly, ensure the locator pins are
inserted into the holes provided in the coil bracket.
Locator Pin
Locator Pin
Gas Valve
The gas valve is attached to a bracket located in the
bottom, right, front corner of the dryer cabinet.
To remove the gas valve:
1. Shut off the gas supply to the unit.
2. Disconnect gas supply from the burner inlet pipe.
3. Remove the drum. (See Drum.)
4. Remove 2 Phillips-head screws from the front
frame and the Phillips-head screw from the rear
of the gas valve cover.
Gas Valve
Moisture
Shield
5. Disconnect the ignitor wire harness and the 2
wires from the fl ame detector.
6. Disconnect the coil wire harness from each coil.
7. Remove the 2 Phillips-head screws that attach
the gas valve bracket to the dryer fl oor.
8. Pull the bracket toward the front of the dryer to
disengage tabs from dryer fl oor.
Disconnect
Disconnect
Disconnect
Tab
Tab
Disconnect
Gas
Valve
Bracket
9. Remove the coils from the gas valve. (See Gas
Valve Coils.)
10. Turn the bracket over. Remove the 3 Phillips-
head screws that attach the gas valve to the
gas valve bracket.
(Continued Next Page)
