Note: If replacing the electronic control, transfer the
model selector harness to the replacement control
board in the same location as on the original. If
harness is not transferred, it will generate an E8
fault code. (See Service Test Mode.)

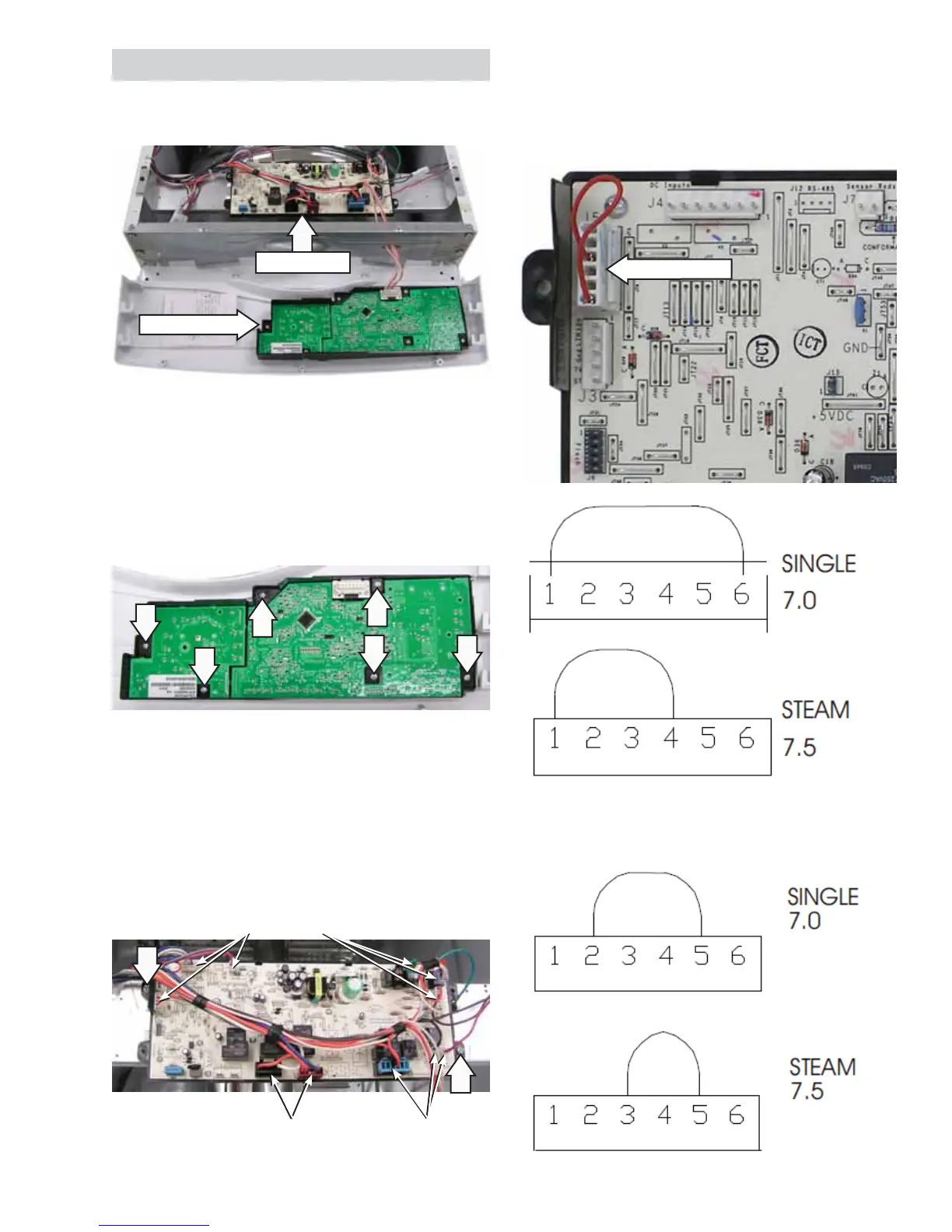

Electronic Control
The electronic control consists of a control board
and a power board.
To remove the electronic control board:
1. Set the control panel in the service position. (See
Control Panel.)
2. Remove the 6 Phillips-head screws that attach
the selector board to the control panel.
Power Board
Control Board
To remove the electronic power board:
1. Remove the top panel. (See Top Panel.)
2. Disconnect 11 wires and wiring harnesses from
the power board.
3. Remove the 2 Phillips-head screws to release
the power board from the power board bracket.
Disconnect
Disconnect
Disconnect
Model Selector
Electric Models
(Non – Steam)
(Non – Steam)
Gas Models
To Next Page
