– 30 –

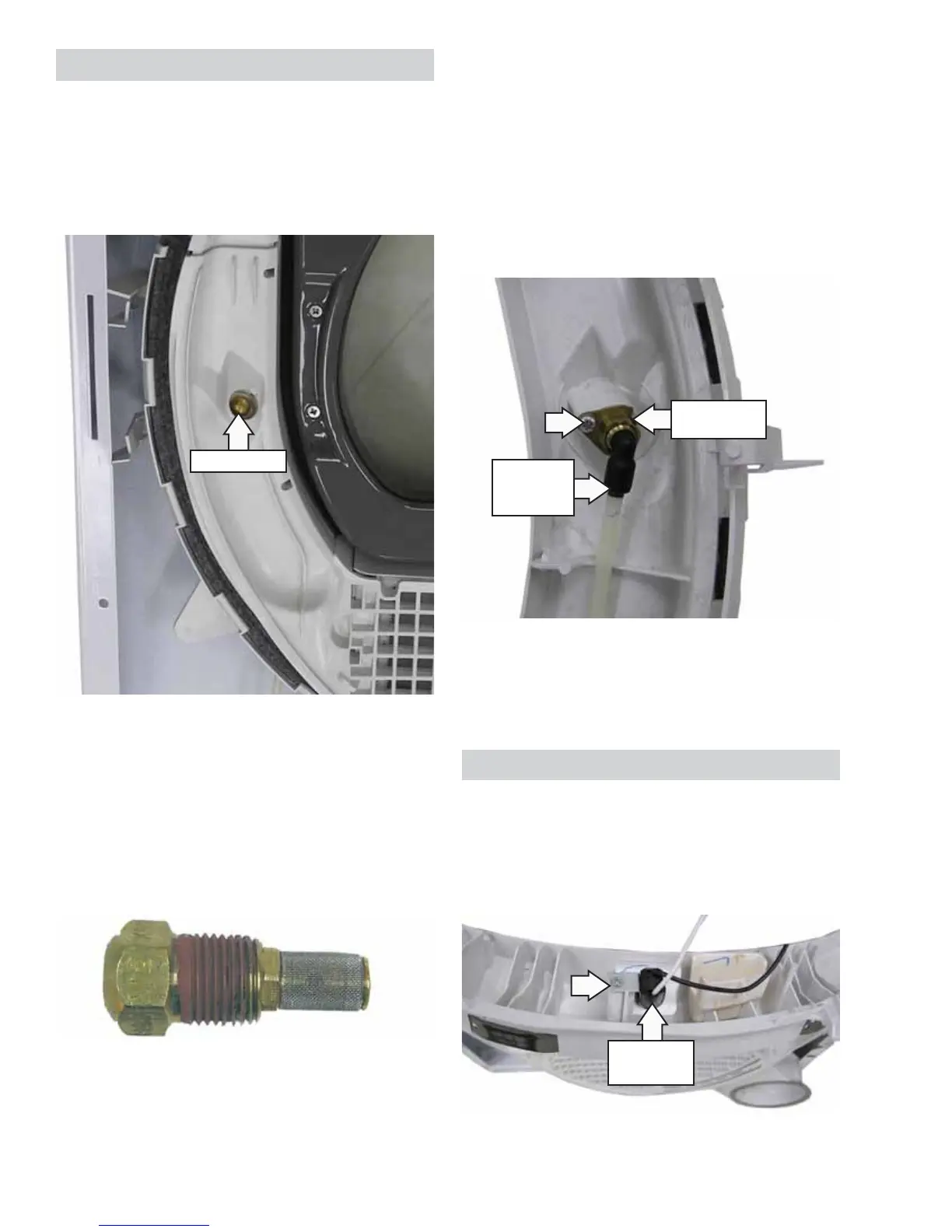

Steam Nozzle
The steam nozzle is located inside the front of the
dryer on the right side of the air duct assembly. The
steam nozzle consists of a brass orifi ce and a fi ne
fi lter screen. If the orifi ce should become plugged
or restricted, it should not be cleaned. Replace a
plugged or restricted steam nozzle.
Steam Nozzle
Note: The replacement steam nozzle will have
thread lock pre-applied to the screw threads.
Nozzle with Thread Lock Applied
The steam nozzle can be replaced without
disassembly of the dryer. Replacement can be
performed by opening the dryer door to access
the steam nozzle. A 7/16” or 11-mm nut driver can
be used to unscrew the nozzle from the air duct
assembly.
To replace the steam nozzle connector:
1. Remove the air duct assembly. (See
Air Duct
Assembly.)
2. Press on the John Guest connector collar and
release the water line from the steam nozzle
connector.
3. Remove the Phillips-head screw that attaches
the nozzle to the nozzle housing.
Steam Nozzle
Connector
John Guest
Connector
Collar
4. Pull the nozzle connector out of the housing.
Drum Light
Receptacle
Drum Light Receptacle
The drum light receptacle is attached to the inside
of the front panel with a single Phillips-head screw.
It is necessary to remove the drum slide assembly
to replace the drum light receptacle. (See
Drum Slide
Assembly.)
