GE HOME GENERATOR SYSTEM 11000 WATT - Access Ports

13
Structure
5 ft (1.5 m) min
18 in (45.7 cm) min
Standby
Exhaust
Direction
5 ft
(1.5 m)
A
A
B
Structure
5 ft (1.5 m) min
18 in (45.7 cm) min
Standby
Exhaust
Direction
5 ft (1.5 m)
A
A
B
Two Structure Installations
Structure
5 ft (1.5 m) min
Standby
Exhaust
Direction
5 ft (1.5 m)
A A
B
Structure
5 ft (1.5 m) min
18 in (45.7 cm) min
Standby
Exhaust
Direction
5 ft (1.5 m)
A
B
Shrubs, Tree or
Vegitation

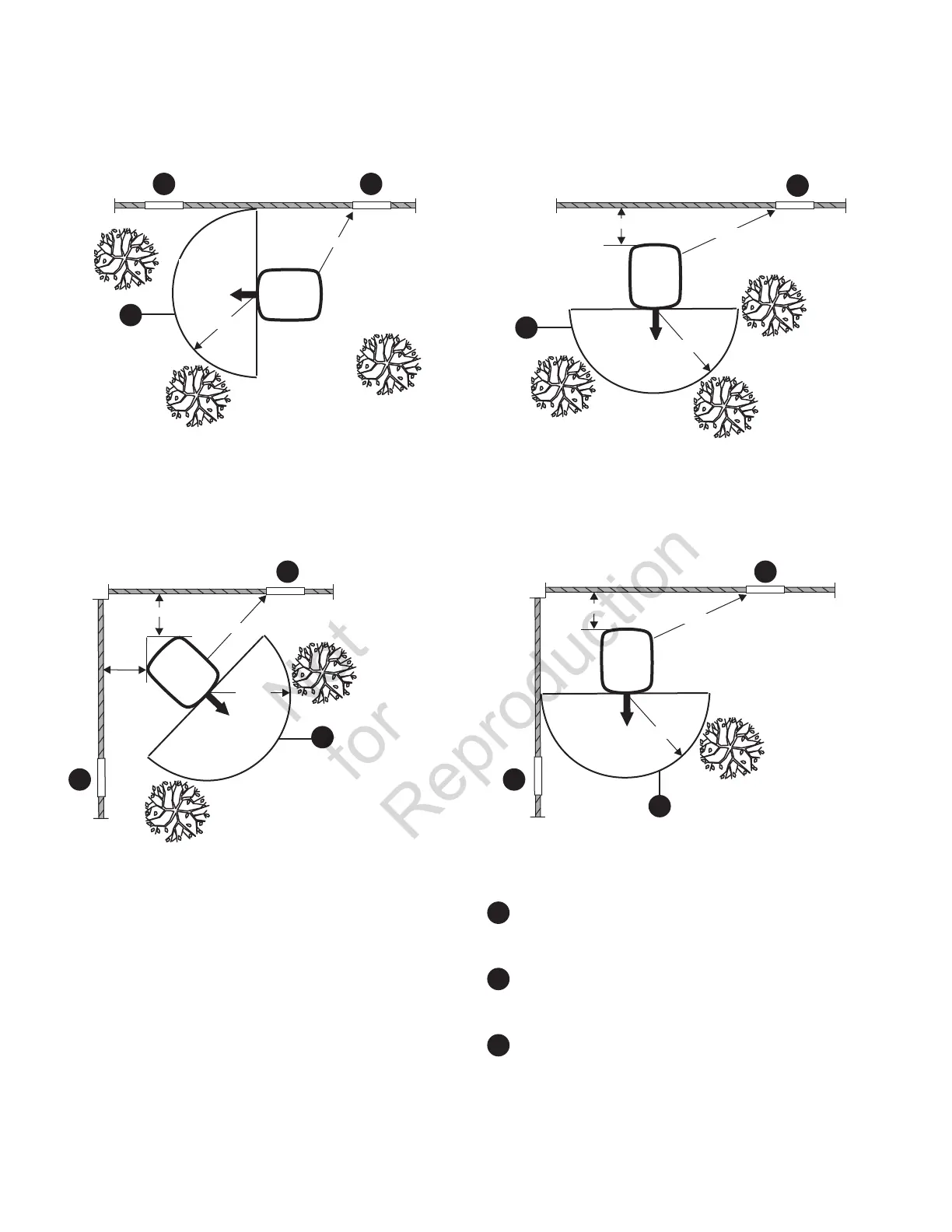

Single Structure Installations
A
Standby weatherproof enclosure must be at least 5 ft
(1.5 m) from windows, doors, any wall opening, shrubs
or vegetation over 12 inches (30.5 cm) in height.
B
Exhaust outlet side of weatherproof enclosure must
have at least 5 ft (1.5 m) minimum clearance from any
structure, shrubs, trees or any kind of vegetation.
C
Standby weatherproof enclosure must have a
minimum of 4 feet (1.2 m) overhead clearance from
any structure, overhang or trees.
NOTICE DO NOT place weatherproof enclosure under a deck
or other type of covered structure that may confine airflow.
Legend for Generator Locations to reduce the risk of fire.
