Electrical and Fuel Inlet Locations

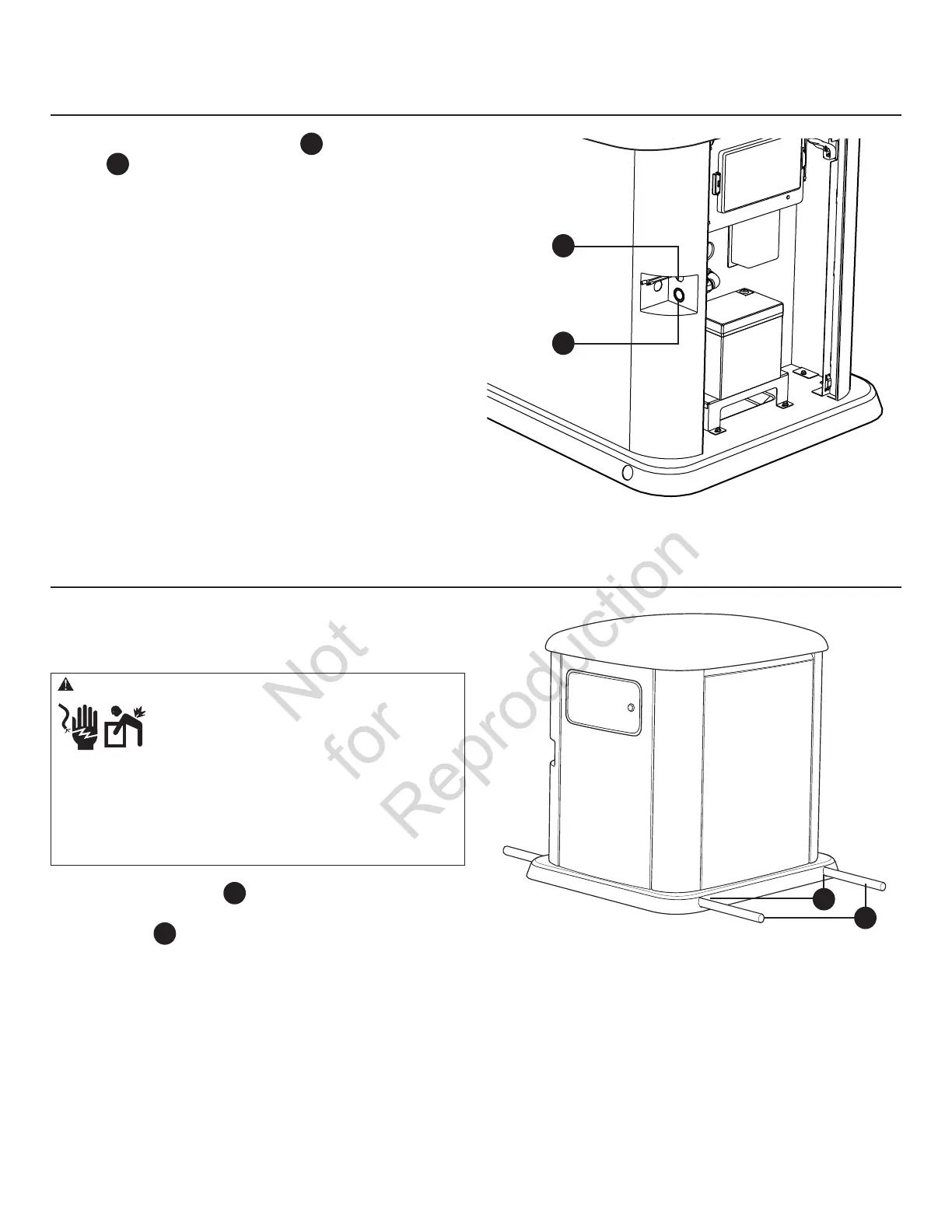

The 3/4 inch N.P.T. fuel inlet connector
A
and electrical inlet
location
B
is shown at right.
The home generator is shipped alr
eady attached to its
mounting pad. Unless mandated by local code, a concrete
slab is not required.
Lifting the Generator
The generator weighs more than 240 kg (530 pounds). Proper
tools, equipment and qualified personnel should be used in
all phases of handling and moving the generator.
Two 48” lengths of 1” pipe
C
, supplied by the installer, are
required to lift the generator manually. Insert pipes through
the lifting holes
D
located near the unit’s base.
You may also lift the unit using a “hook and hoist” method
attached to the lifting pipes, provided that you use a
spreader bar to ensure that the chains or cables DO NOT
touch the generator’s roof.
After unit is in place, fill the lifting holes with the supplied
lifting hole plugs.
C
D
WARNING Hazardous Voltage - Contact with power lines could
cause electric shock or burn, resulting in death or
serious injury.
Lifting Hazard / Heavy Object - Could result in
serious injury.
• If lifting or hoisting equipment is used, DO NOT contact any
power lines.
• DO NOT lift or move generator without assistance.
• Use lifting pipes as described in Lifting the Generator.
• DO NOT lift unit by roof as damage to generator will occur.
