GE Innova Series - Floor Hole Layout and Template Usage

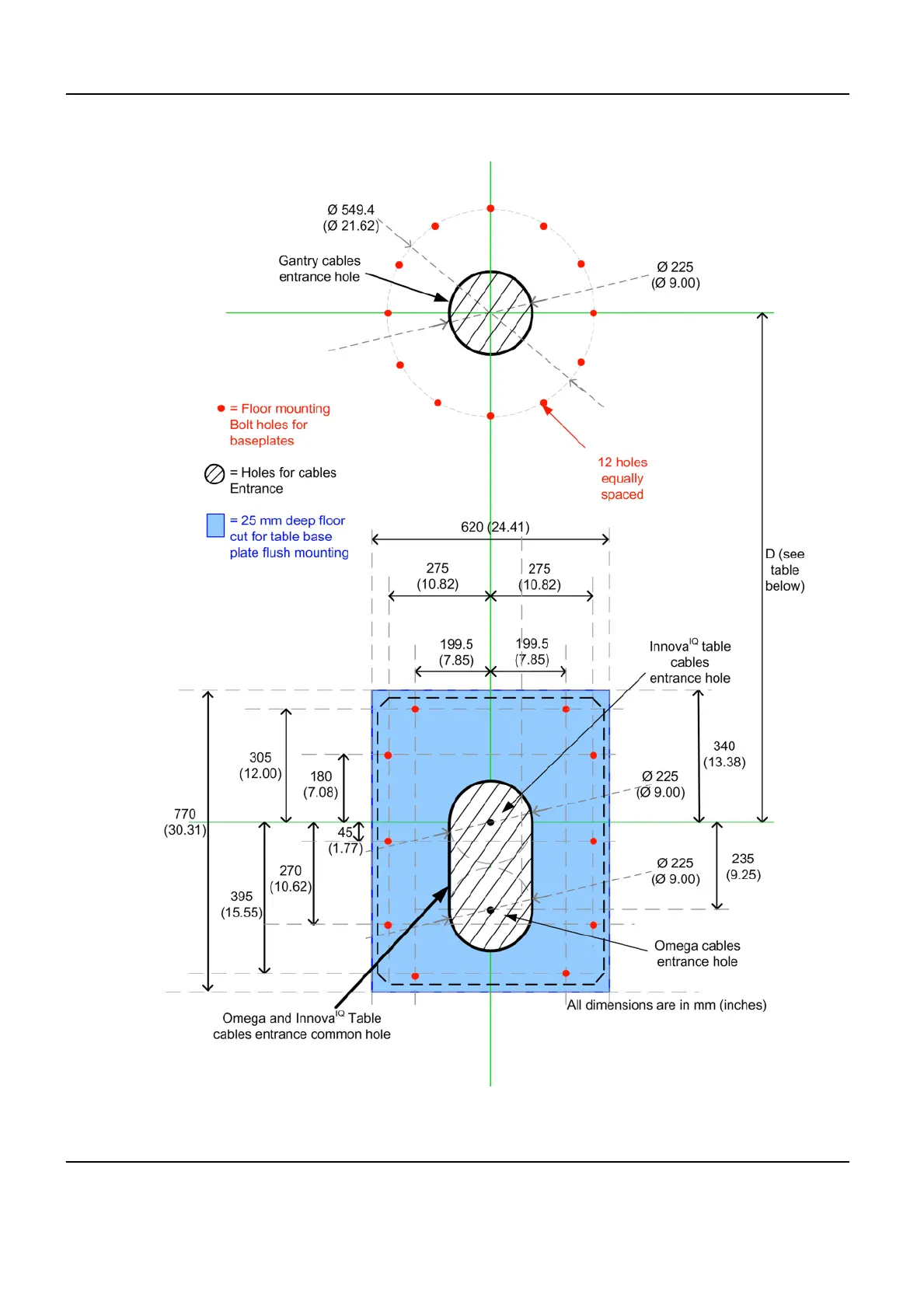

Illustration 3-1: Hole Location in concrete floor
Single Plane and Biplane Innova Systems Pre–Installation Kit Installation Procedures
GE Healthcare Direction 2290880-12-1EN, Revision 1
50 1 Templates
