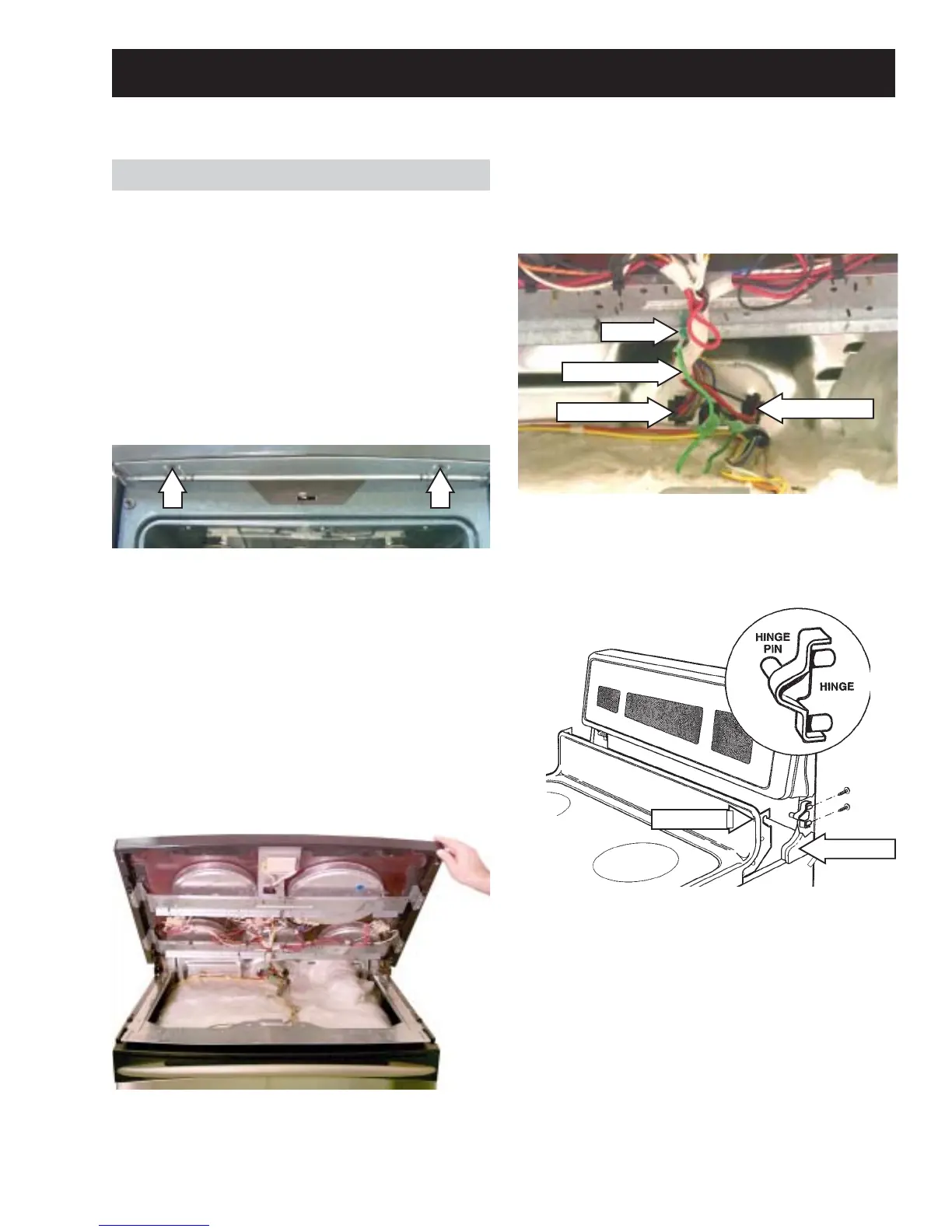

– 17 –
Caution: Lifting the cooktop panel too high can
break the glass.
Caution: Lifting the cooktop panel too high can
pull wires out of the electrical connectors.
Note: Some components can be replaced by
propping the cooktop panel without removing it.
3. Lift the front of the cooktop panel upward to
approximately 45°.
6. Lift the front of the cooktop panel upward to
approximately 45° (see illustration (A) on next
page).
7. Lower the rear of the cooktop panel to
disengage the hinges from the hinge pins (see
illustration (B) on next page).
8. Lift the cooktop panel upwards and over the
hinge pin and remove the cooktop panel (see
illustration (C) on next page).
4. Disconnect the 2 electrical connectors.
5. Remove the screw and disconnect the
grounding wire.
Note: The cooktop panel hinge slots rest on a
hinge pin mounted to each end plate.
Range Components
Cooktop Panel
The ceramic glass cooktop is sealed into the
cooktop frame and is not replaceable as a
separate part. The cooktop panel comes as a
complete assembly (frame and ceramic glass).
Removal and Replacement
1. Disconnect power.
2. Open the door and remove the 2 screws
which secure the cooktop panel to the front
oven frame.
(Continued next page)
Ground Wire
Screw
Disconnect
Disconnect
Hinge Slot
End Plate
