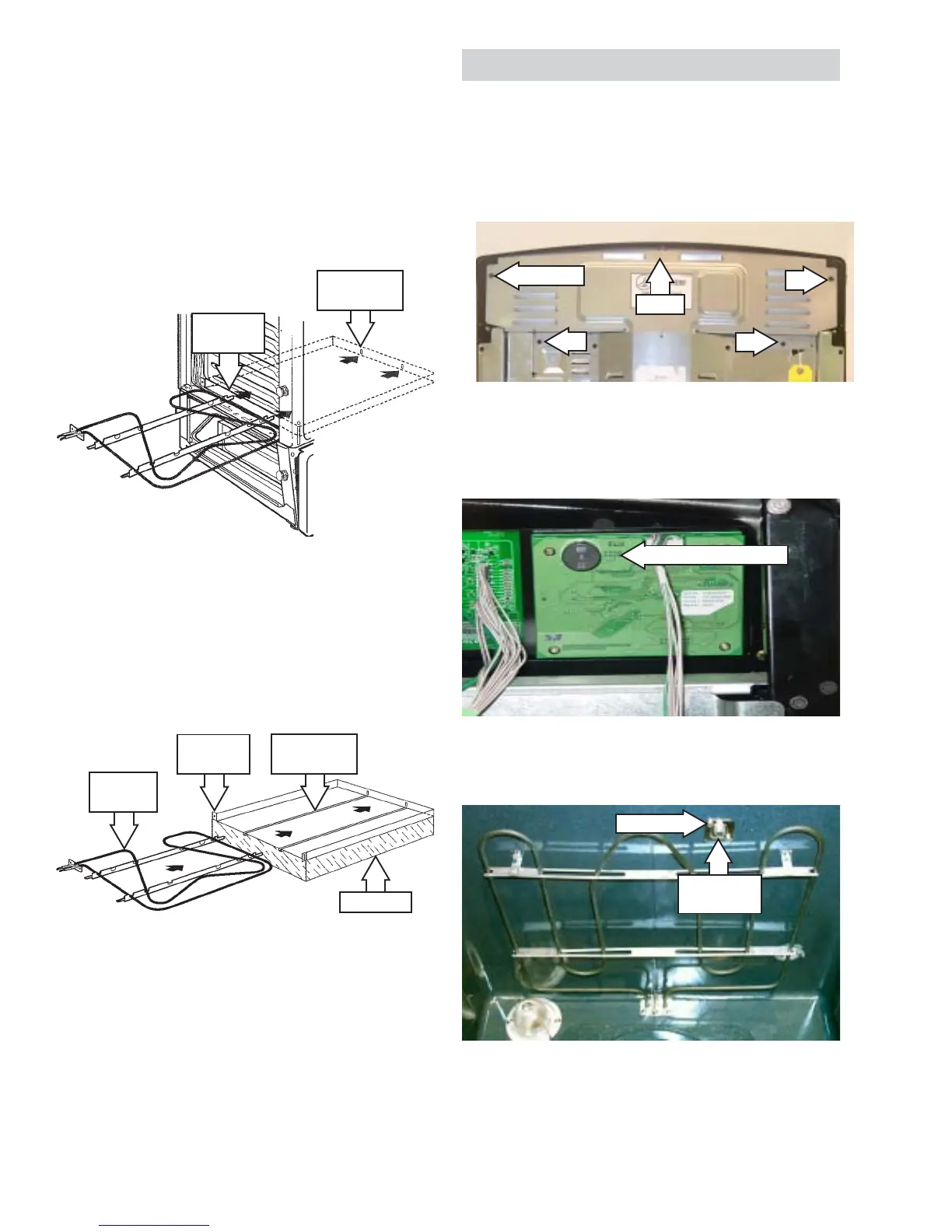

GE JB905 Technical Service Guide

– 22 –
6. Remove the nut, washer, and probe
receptacle.
5. Remove 2 screws that attach the meat probe
receptacle to the top of the oven liner.
3. Remove the Cooktop Panel.
4. Disconnect the electrical connector from the
main control board.
2 Screws
Probe
Receptacle
15. Grasp the bake element on both sides and
gently pull it towards you as you remove it
from the housing.
Note: The opposite side of the bake element has
two alignment tabs which fit into the alignment
slots on the other side of the housing. When
installing the bake element, be sure that the
alignment tabs follow the alignment channels into
the locator slots.
Note: The bottom of the bake element housing
bows upward due to the insulation beneath it.
Use a long flat-bladed screwdriver to gently hold
down the reflector pan when removing or
installing the bake element into the reflector pan
alignment channels.
Insulation
2 Alignment
Channels
Bake
Element
Reflector
Pan
2 Alignment
Slots
2 Locator
Tabs
Electrical Connector
Meat Probe Receptacle
Removal and Replacement
1. Disconnect power.
2. Remove the 4 screws and control panel
cover.
4 Screws
Cover
