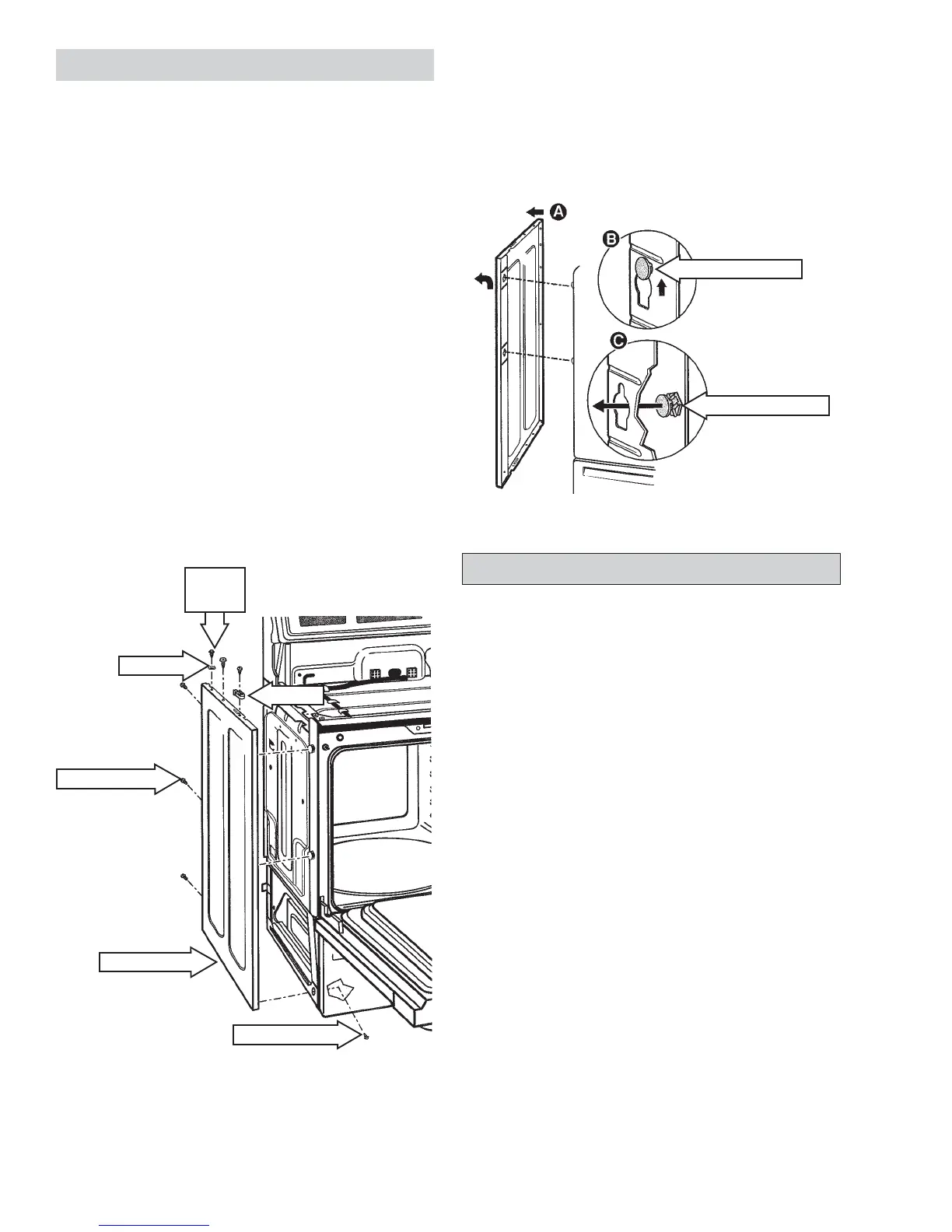

8. Grasp the front and rear portion of the side
panel (A).
9. Lift the side panel up (B) and pull it towards
you (C) to disengage the two rubber
grommets.
Rubber Grommet
Rubber Grommet
Washer
Tab
3 Rear Screws
Side Panel
Hidden Screw
3 Top
Screws
Side Panel
The side panels shield oven wiring, insulation, and
the oven liner.
Removal and Replacement
The procedures to remove both the left and right
side panels are identical.
1. Disconnect power.
2. Remove the range from its installation.
3. Remove the Cooktop Panel.
4. Remove the storage drawer.
5. Remove the hidden screw near the leveling
leg.
6. Remove the 3 rear screws from the rear of
the side panel.
7. Remove the 3 top screws, washer, and tab
from the top of the side panel.
Hidden Bake Assembly -JB968 and JB988
The bake element is located beneath the oven
liner.
Removal and Replacement
1. Disconnect power.
2. Remove the range from its installation.
3. Remove the Cooktop Panel.
4. Remove the storage drawer.
5. Remove the Side Panel.
