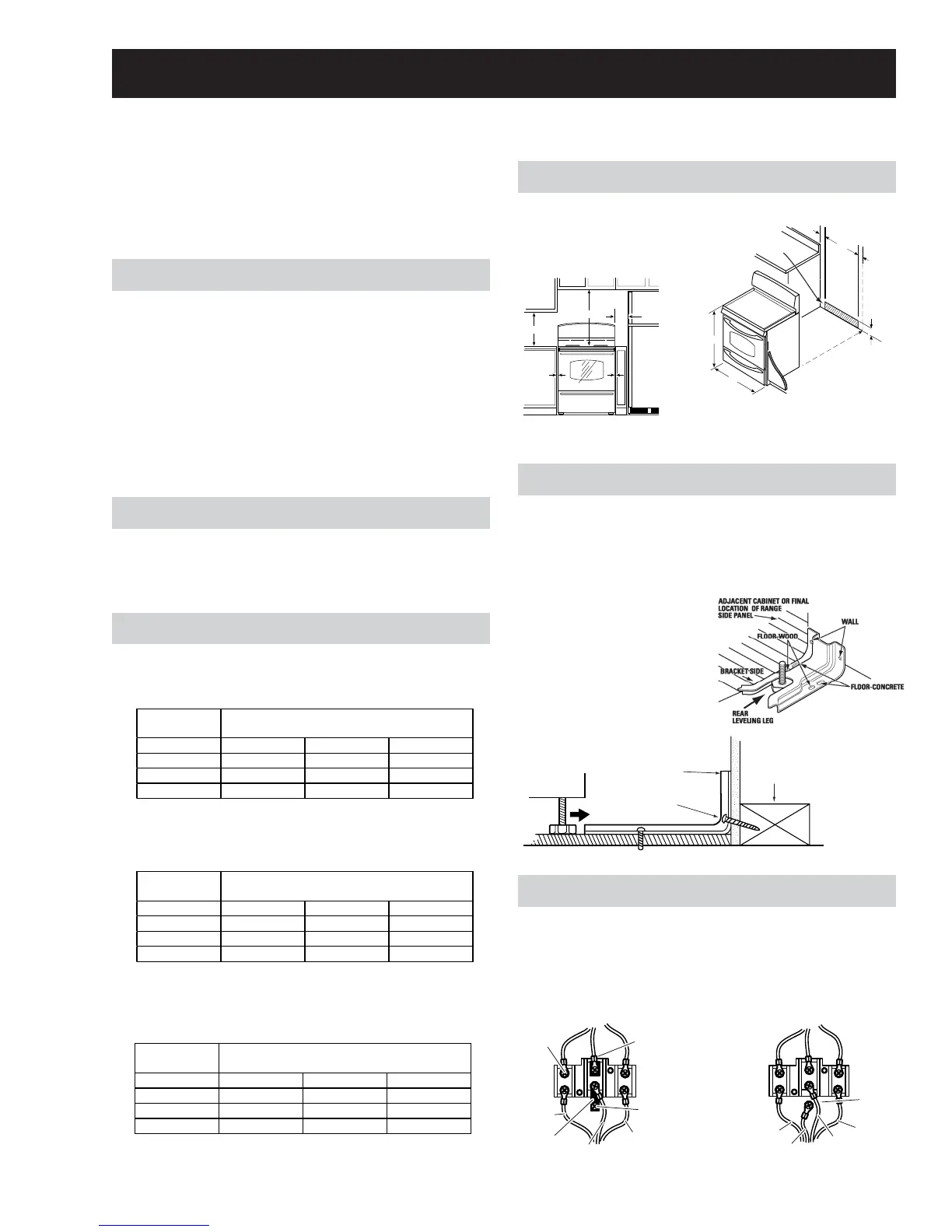

GE JB905 Technical Service Guide

– 5 –
Screw must enter
wood or metal
Bracket
Wall plate
Attachment to wall and floor
Installation Requirements
JB988
JB968
JB905
4 Wire Hook-Up
White
Wire
Green
Wire
Black
or Red
Wire
Black
or Red
Wire
Cut
Ground
Strap
Ground
Strap
Outer
Wire
Outer
Wire
Center
Wire
3 Wire Hook-Up
Ground
Neutral
Terminal
Screw
Ground
Screw
WARNING: All ranges can tip causing injury.
Install anti-tip brackets packed with range.
Brackets should be attached
to the floor or wall to hold
the right or left rear
leg leveler. Make sure
leg leveler re-engages
the bracket when range
is moved for any reason.
Installation information is for reference only. See
the Installation Instructions shipped with the
product for complete details and before
attempting to install the range.
Recommended
Spacing to
Heat Sensitive
Surfaces.
6"
MIN
30" MIN
18" MIN
0" 0"
*
*
MINIMUM DIMENSIONS BETWEEN
COOKTOP AND WALLS ABOVE COOKTOP.
25"
30"
36"
NOTE: Use a 4 foot power cord to prevent
interference with the storage drawer.
Power cords 4.5 or 6 foot long may have
to be dressed to allow for proper drawer closing.
ACCEPTABLE ELECTRICAL
OUTLET AREA
Orient the electrical
receptacle so the length
is parallel to the wall.
2 1/2"
2 1/2"
7 1/2"
NEC
Rating
Maximum Kilowatt Rating
208V 236V 240V
35 Amp - 12.4 12.4
40 Amp 12.4 15.4 16.0
50 Amp 17.4 21.4 22.0
NEC
Rating
Maximum Kilowatt Rating
208V 236V 240V
35 Amp 9.5 10.7 10.9
40 Amp 10.6 12.2 12.4
50 Amp 13.4 15.2 15.5
NEC
Rating
Maximum Kilowatt Rating
208V 236V 240V
35 Amp 8.8 10.0 10.2
40 Amp 10.1 11.4 11.6
50 Amp 12.6 14.3 14.5
Power Supply
This appliance must be supplied with proper
voltage and frequency, connected to an
individually grounded branch circuit, and protected
by a circuit breaker or time delay fuse as noted on
rating plate.
Wiring must conform to the National Electrical
Codes.
Grounding Specifications
Ground Path Resistance 0.10W Max.
Insulation Resistance 250KW Min.
Over Current Protection Ratings
Minimum Clearances
Anti-Tip Brackets
4-Conductor Connections
Effective January 1, 1996, the National Electrical
Code requires that new or rewired construction
utilize 4-conductor connections to electric ranges.
