Caution: When installing cooktop wiring, route
the wires away from the burner cans and rail
edges.
Note: If additional high temperature tape is
needed to bundle the wiring, use reflective
aluminum tape (PN: WB06X10551).
8. Label and disconnect the 4 terminal lugs from
the thermal element and remove the burner.
6. Remove the mounting bracket from the
burner.
7. Remove the springs from the spring posts.
Spring
Post
Spring
Post
Spring
Spring
Ta b
Tab
Terminal
Element

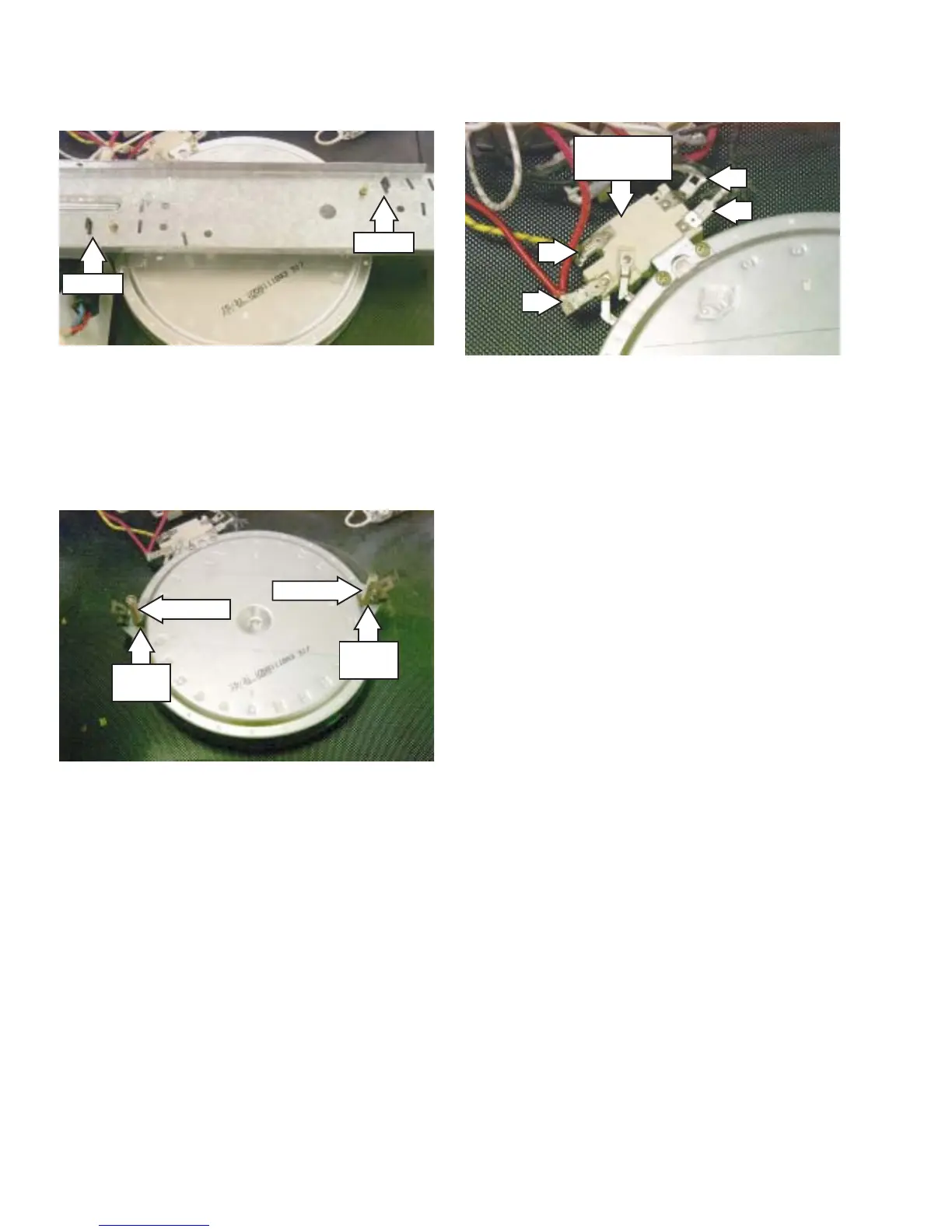

5. Use a flat blade screwdriver to press the 2
tabs free from the mounting bracket slots.
