Door removal
The door is very heavy. Be careful when removing and
lifting the door.
Do not lift the door by the handle.

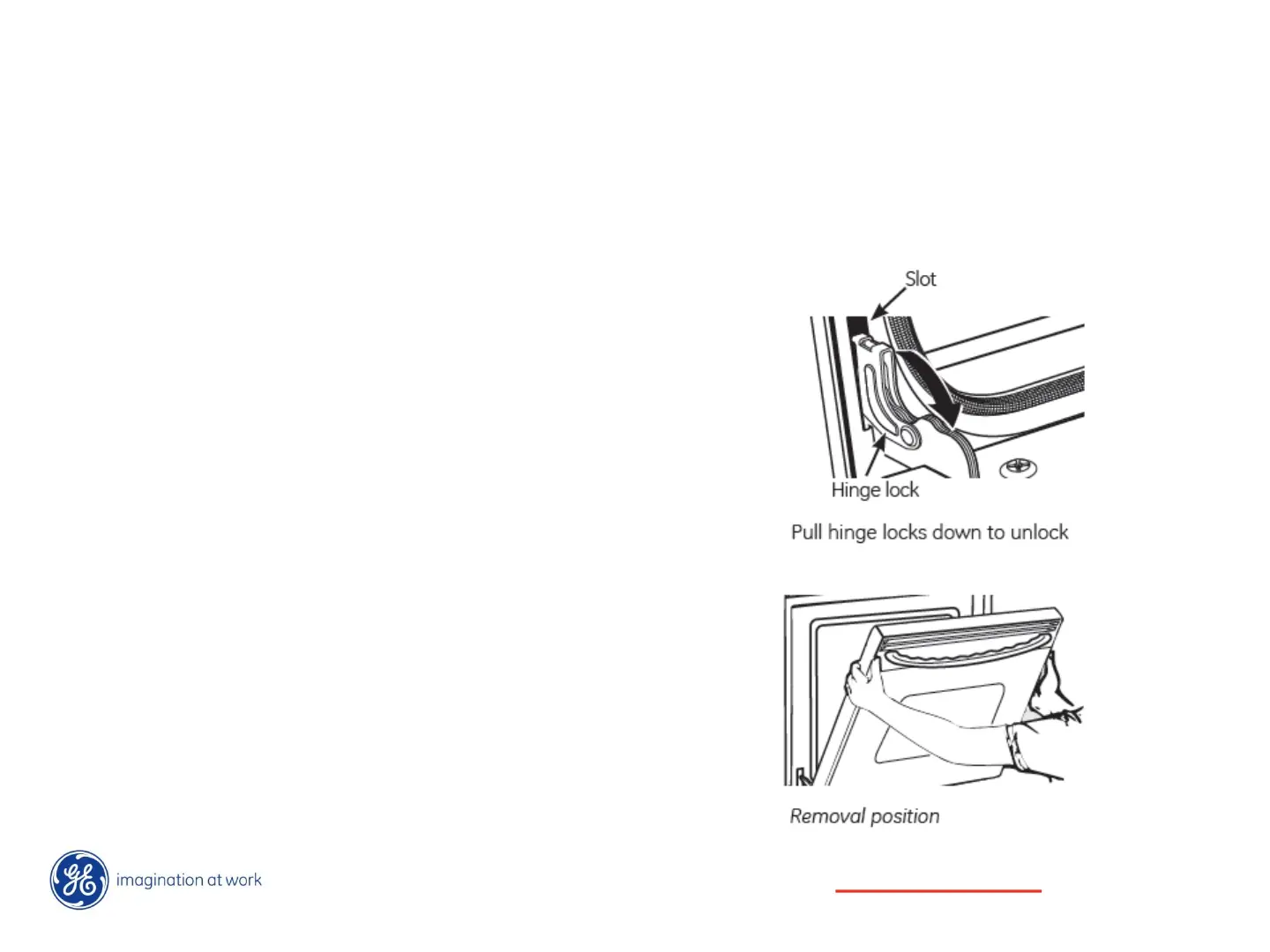

To remove the door:
1. Fully open the door.
2. Pull the hinge locks down toward the door frame, to
the unlocked position. A tool, such as a small flat
blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position. The door
should be open approximately 3" with no obstruction
above the door.
5. Lift door up and out until both hinge arms are clear
of the slots.
Back to T of C
30 lbs.
