GE JT5000 Technical Service Guide

42
GE Title or job number
11/26/2013

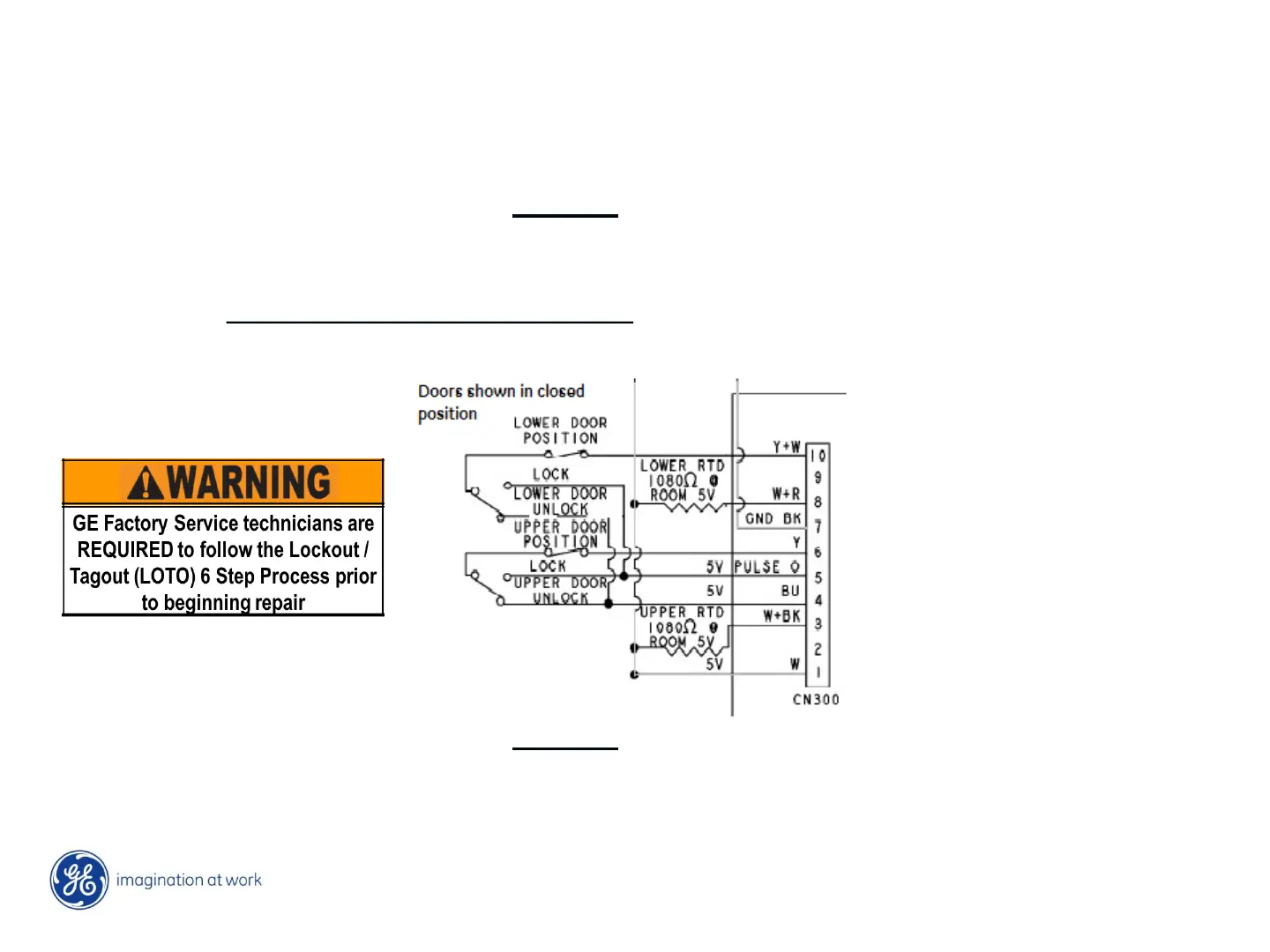

Door latch ERC T012 F90 thru F95
UPPER
F codes associated with latch switches are: F90,91,92
The door latch switch circuits have changed- In order to check lock and unlock circuits from ERC its important
to make sure doors are in closed position. The reading for the upper lock circuit should show continuity from Y
pin 6 (common) to BL pin 4 in UNLOCKED (BAKE) position and continuity from Y pin 6 to O pin 5 in LOCKED (SELF
CLEAN) position. Use UPPER readings for SINGLE ovens.
F codes associated with latch switches are: F93,94,95
In order to check lock and unlock circuits from ERC its important to make sure doors are in closed position.
The reading for the lower lock circuit should show continuity from Y/W pin 10 (common) to BL pin 4 in
UNLOCKED (BAKE) position and continuity from Y/W pin 6 to O pin 5 in LOCKED (SELF CLEAN) position.

GE JT5000 Specifications

General

Brand	GE
Model	JT5000
Category	Oven
Language	English
