GE JT5000 Technical Service Guide

46
GE Title or job number
11/26/2013
Control – T09 used in JK/JT1000 series only
P200
DLB
Broil
Bake

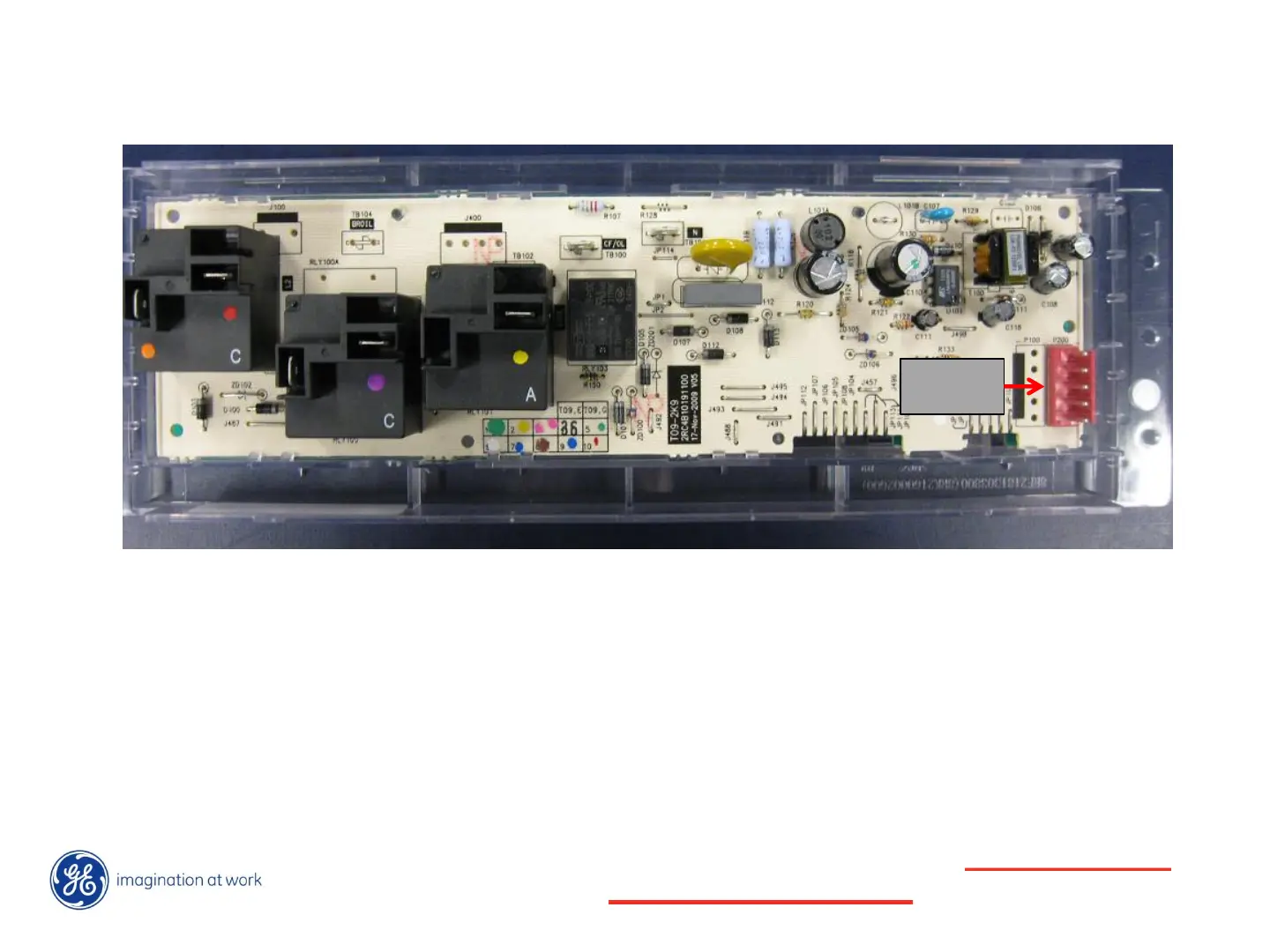

P200- Oven sensor and oven light
circuit
Bake relay- yellow dot- supplies L1 to
bake element
Broil relay- purple dot- supplies L1 to
broil element
DLB- red and orange dots- supplies L2
to both elements Back to definitions.
