GE JT5000 Technical Service Guide

71
GE Title or job number
11/26/2013

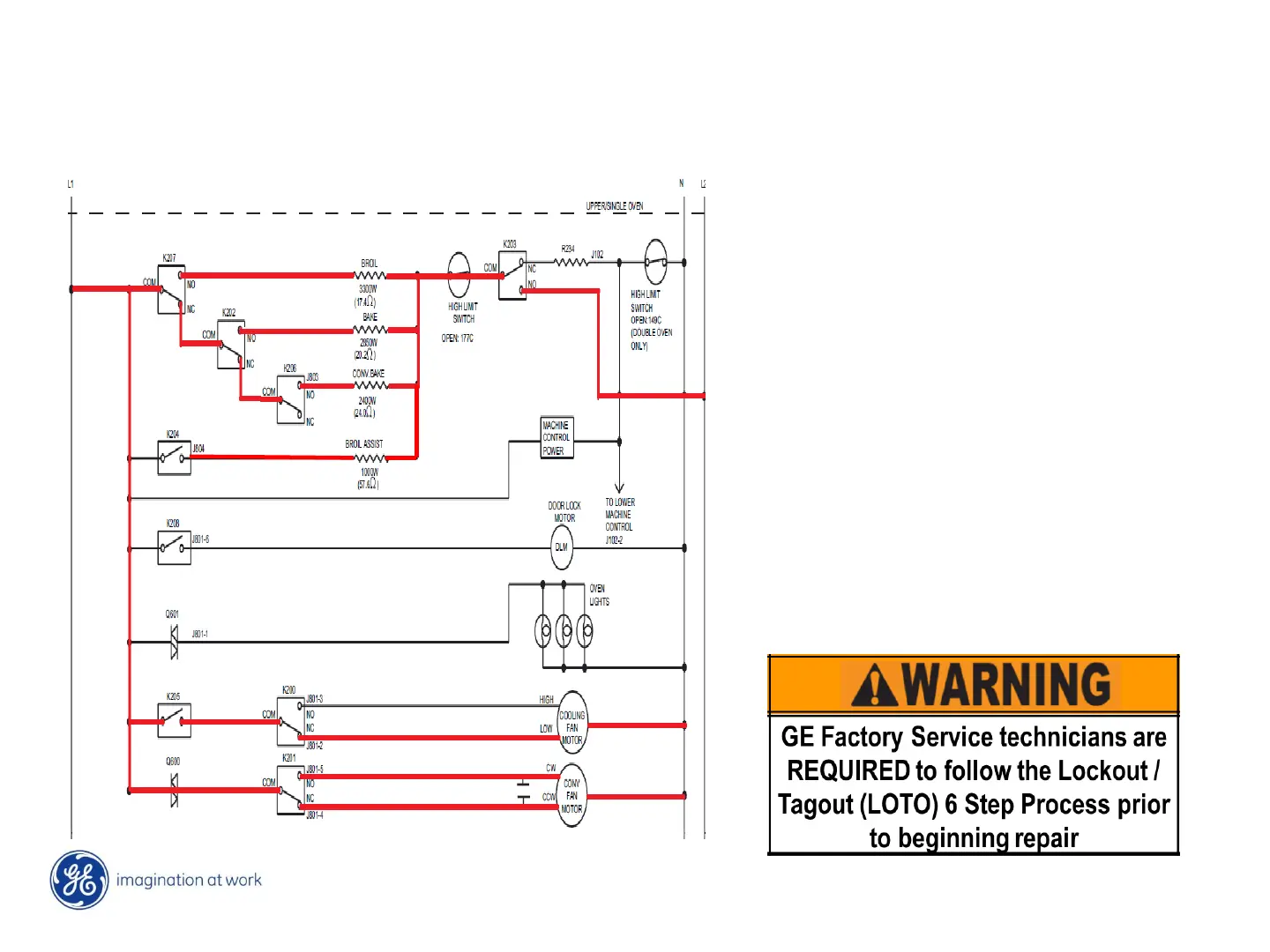

Troubleshooting- Elements/upper
All heating elements can be checked
from board. Remove power to unit.
(LOTO). Individual elements can be
checked from associated relay or
terminal plug to Orange wire on DLB
(Double Line Break), or check a
combination of 2 elements by checking
from Relay wire to relay wire. For
example: Purple to Yellow should show
approx. 37Ω. Checking both Broil units -
Purple to Purple/Yellow should show
approx. 75Ω. If elements check good,
but not to the Orange wire, suspect an
open HIGH LIMIT SWITCH.
