GE JT5000 Technical Service Guide

51
GE Title or job number
11/26/2013
Troubleshooting- light
Lamp circuit can be checked, with power
removed (LOTO) from TB101 to BK/W wire
on switch, should show lamp resistance. If
showing resistance 100Ω approx. Test
door plunger switch.

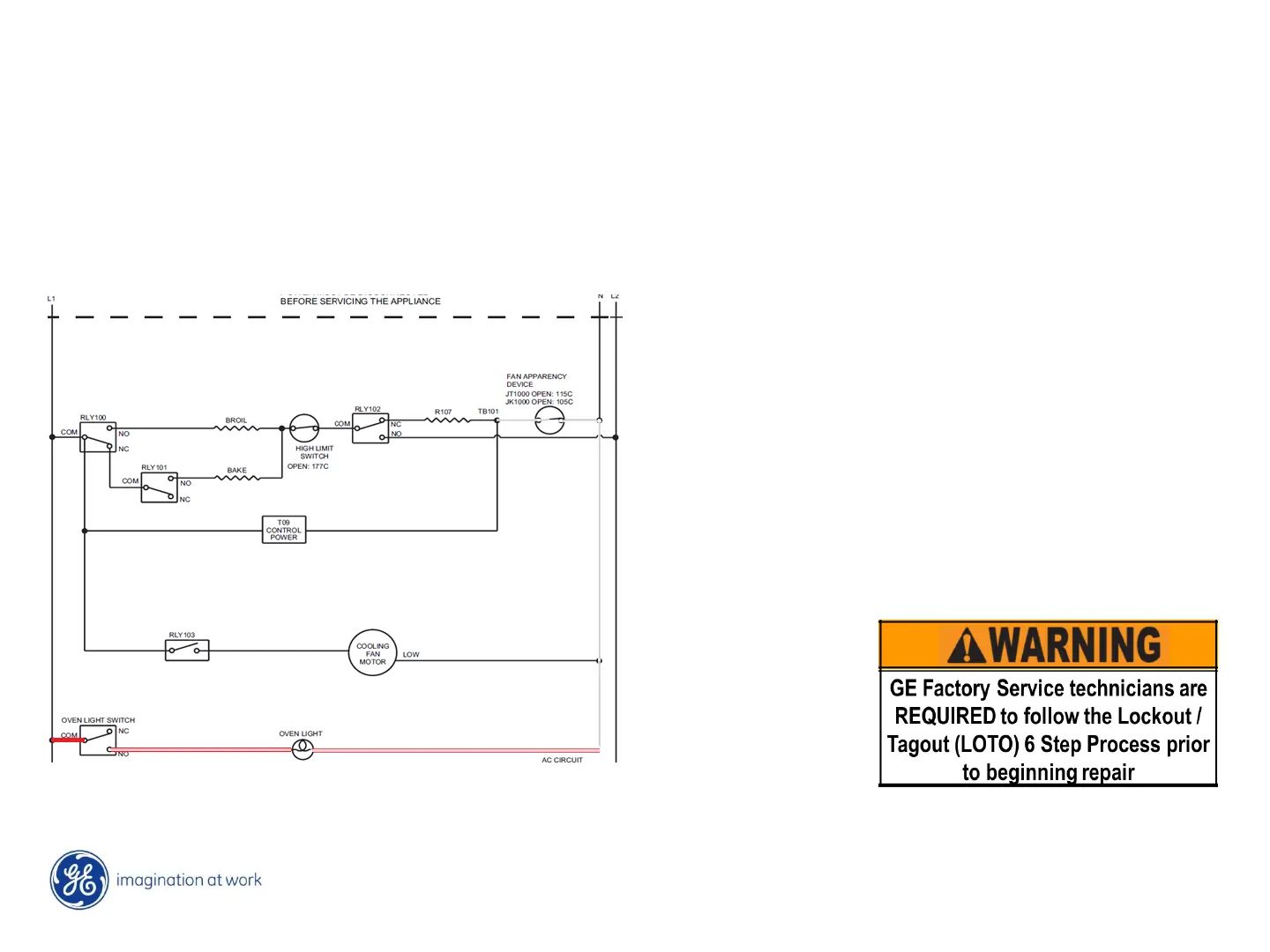

NOTE: Schematic on mini manual is
mislabeled for OVEN LIGHT SWITCH –
CORRECT wiring is shown in GREY
no
nc
