GE JT5000 Technical Service Guide

57
GE Title or job number
11/26/2013

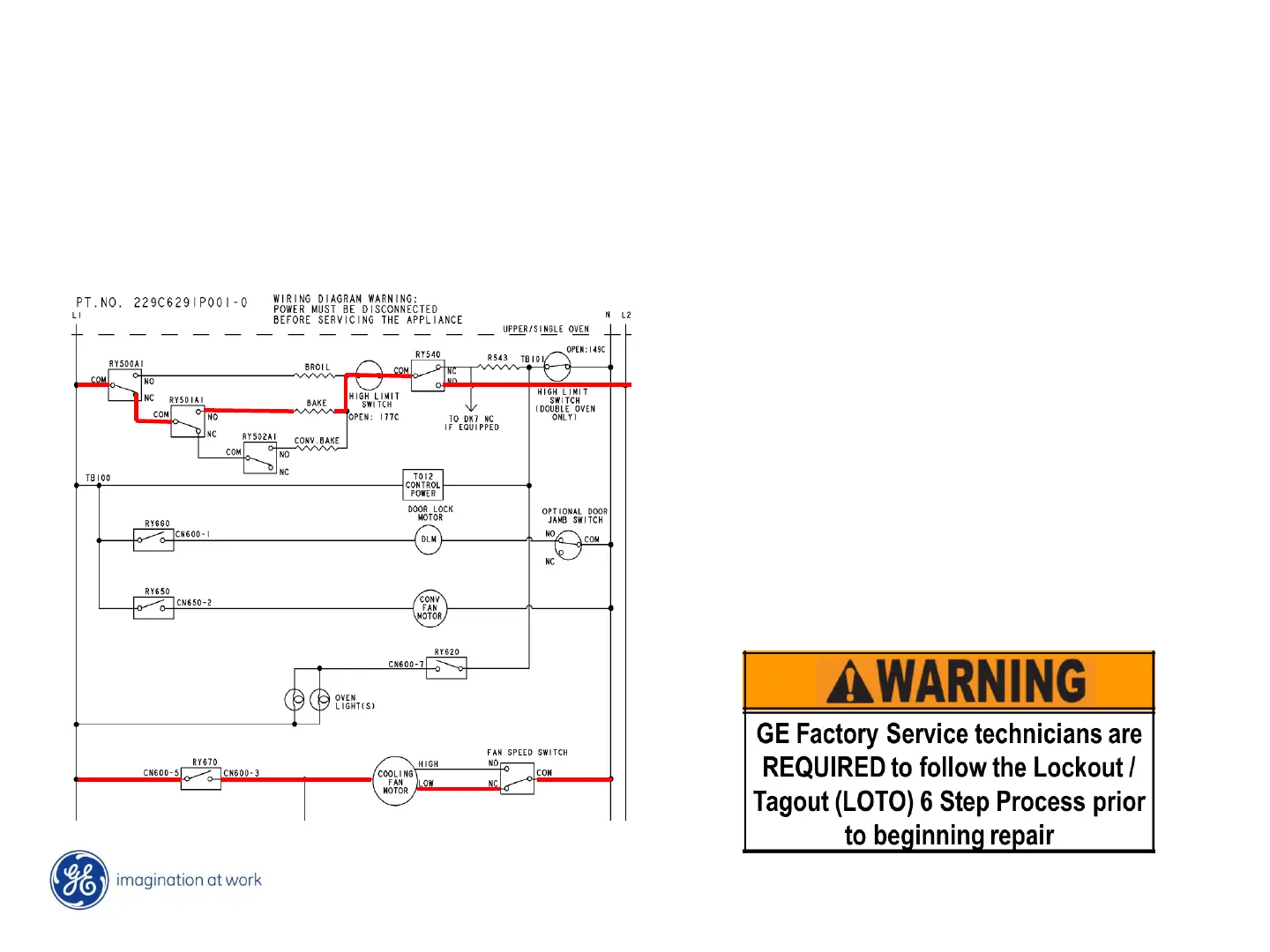

Troubleshooting- Bake -upper
If NO bake element function, with power
removed, (LOTO) check resistance from PR
wire on RLY500A to Y wire on RLY501A
should be approx. 35-40 Ω If ok, check
between PR on RLY500A to O on RLY540
should be approx. 15 Ω. If ∞ (open) suspect
HIGH LIMIT is open. Unit should also have no
BROIL function if HIGH LIMIT is open.
