GE JT5000 Technical Service Guide

21
GE Title or job number
11/26/2013
Door reinstall
To replace the door:
1. Firmly grasp both sides of the door at the top.

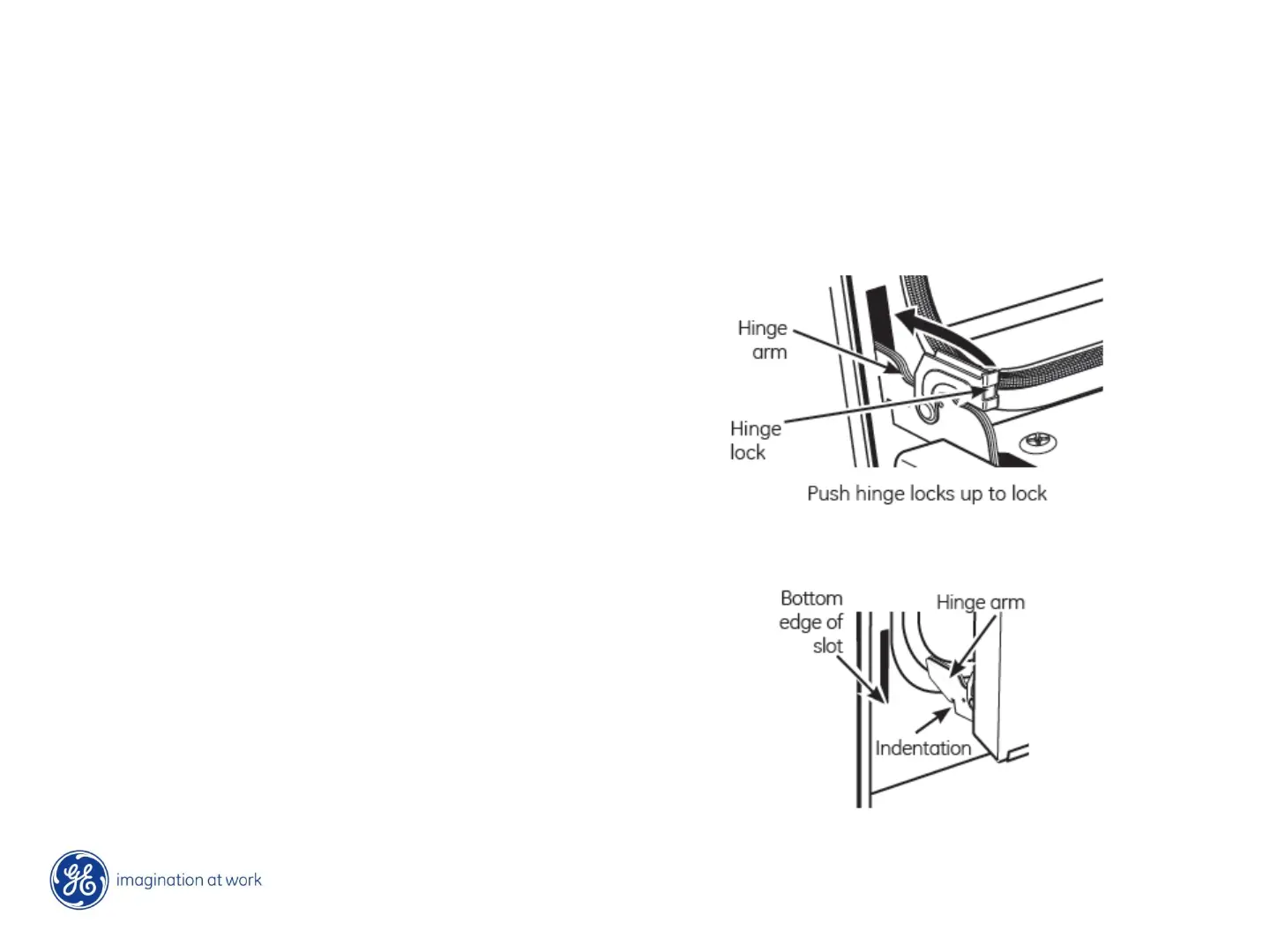

2. Starting on the left side, with the door at the same
angle as the removal position, seat the indentation of
the hinge arm into the bottom edge of the hinge slot.
The notch in the hinge arm must be fully seated into
the bottom of the slot. Repeat for right side.
3. Fully open the door. If the door will not fully open,
the
indentation is not seated correctly in the bottom edge
of the slot.
4. Push the hinge locks up against the front frame of
the
oven cavity, to the locked position.
5. Close the oven door.
