GE JT5000 Technical Service Guide

58
GE Title or job number
11/26/2013

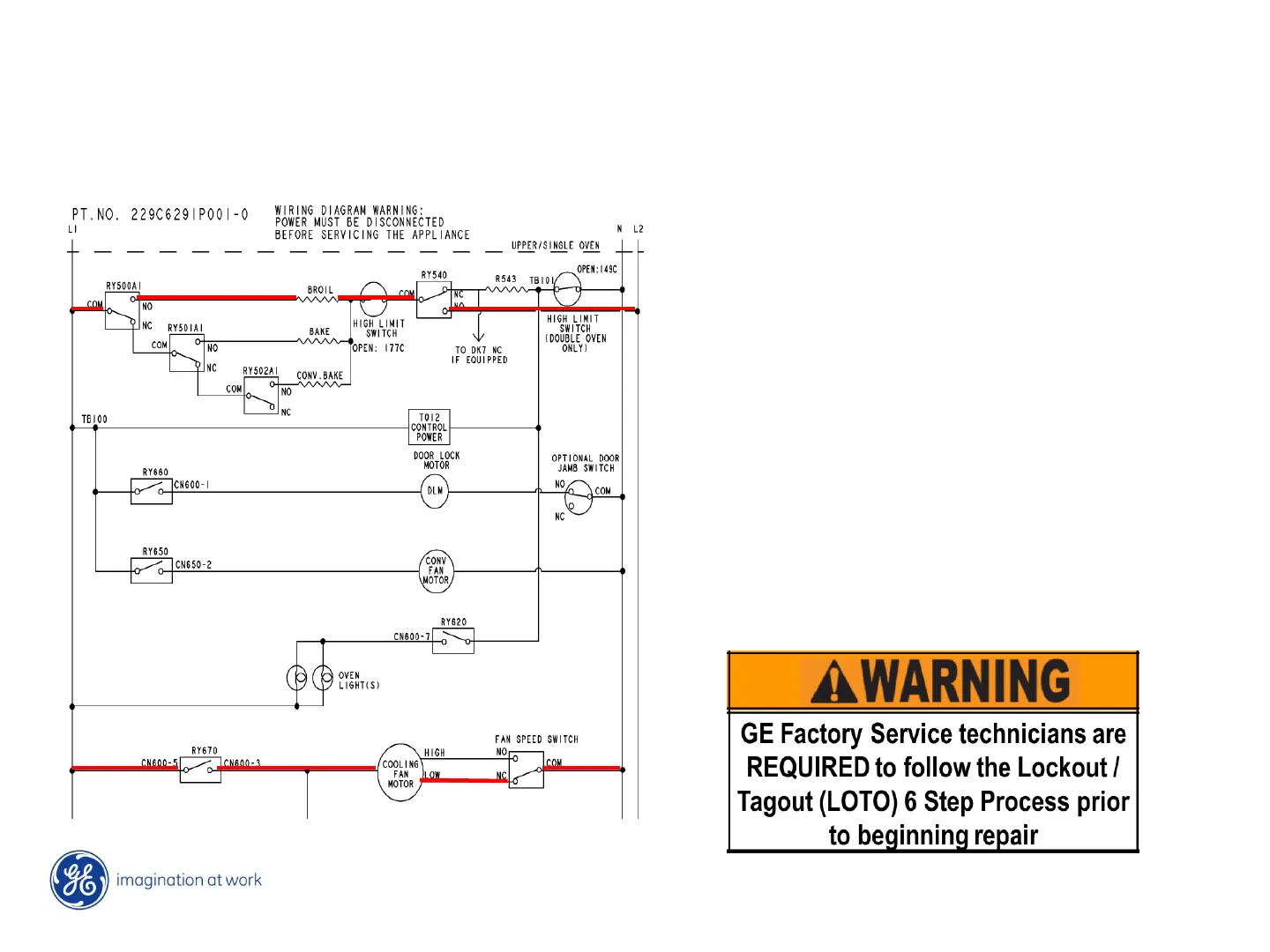

If NO broil element function, with
power removed, (LOTO) check
resistance from PR wire on
RLY500A to Y wire on RLY501A
should be approx. 35-40 Ω If ok,
check between PR on RLY500A to
O on RLY540 should be approx. 15
Ω If ∞ (open) suspect HIGH LIMIT
is open. Unit should also have no
BAKE function if HIGH LIMIT is
open.
