GE JT5000 Technical Service Guide

52
GE Title or job number
11/26/2013

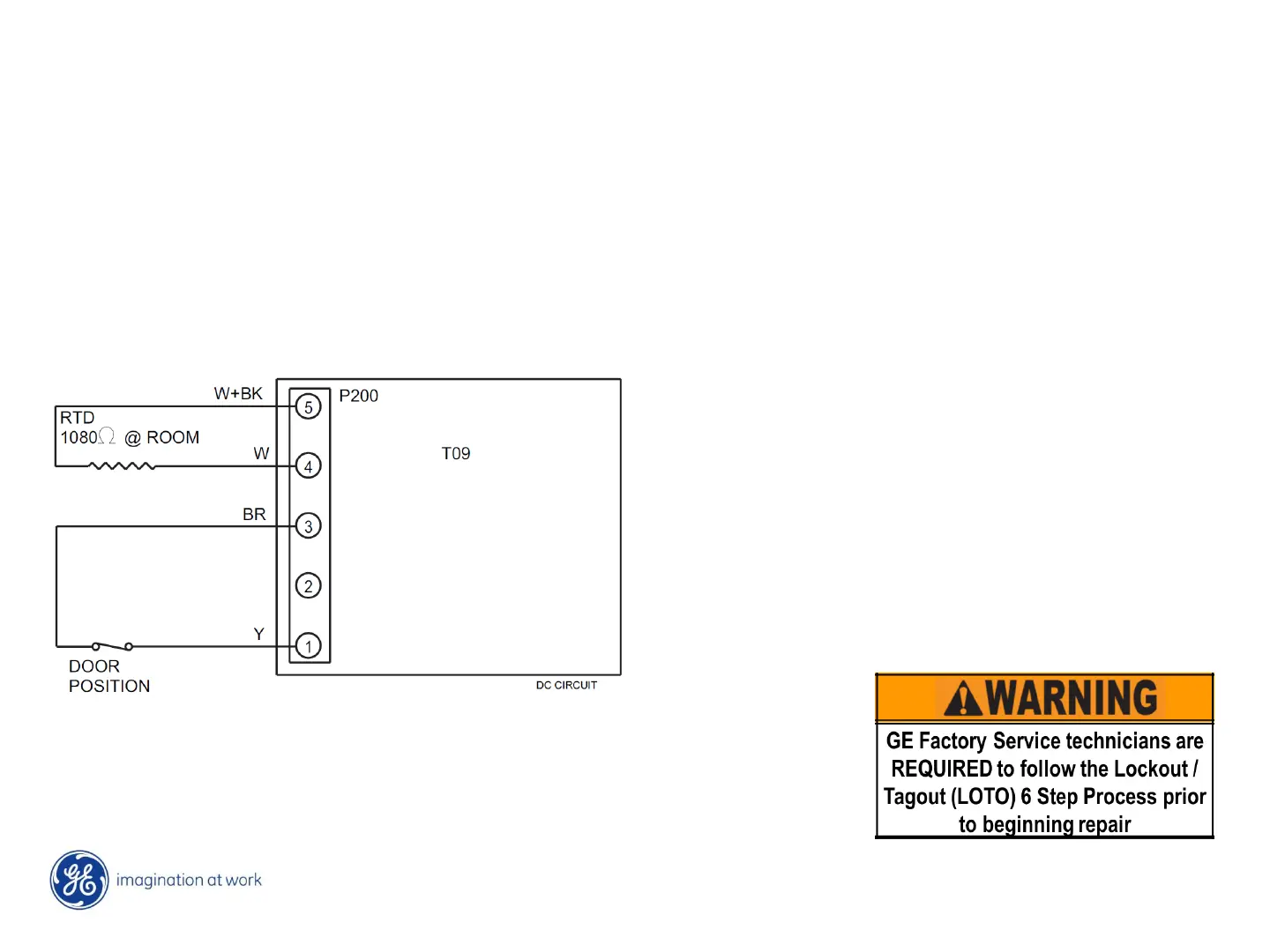

Troubleshooting- Sensor and door
position switch circuits
Sensor should measure approx. 1080 Ω @
room temp. W/BK to W wires on pins 4 – 5
on P200 @ board, with plug removed from
board. Door position switch is a feedback
circuit for board to know if door is closed
for STEAM CLEAN function and if door is
open for prolonged cooking times. With
door CLOSED it should measure a CLOSED
circuit from BR to Y wires on pins 1 - 3 on
P200 @ board, with plug removed from
board.
