GE JT5000 Technical Service Guide

34
GE Title or job number
11/26/2013
Oven sensor continued (Machine Control) F20 thru F35

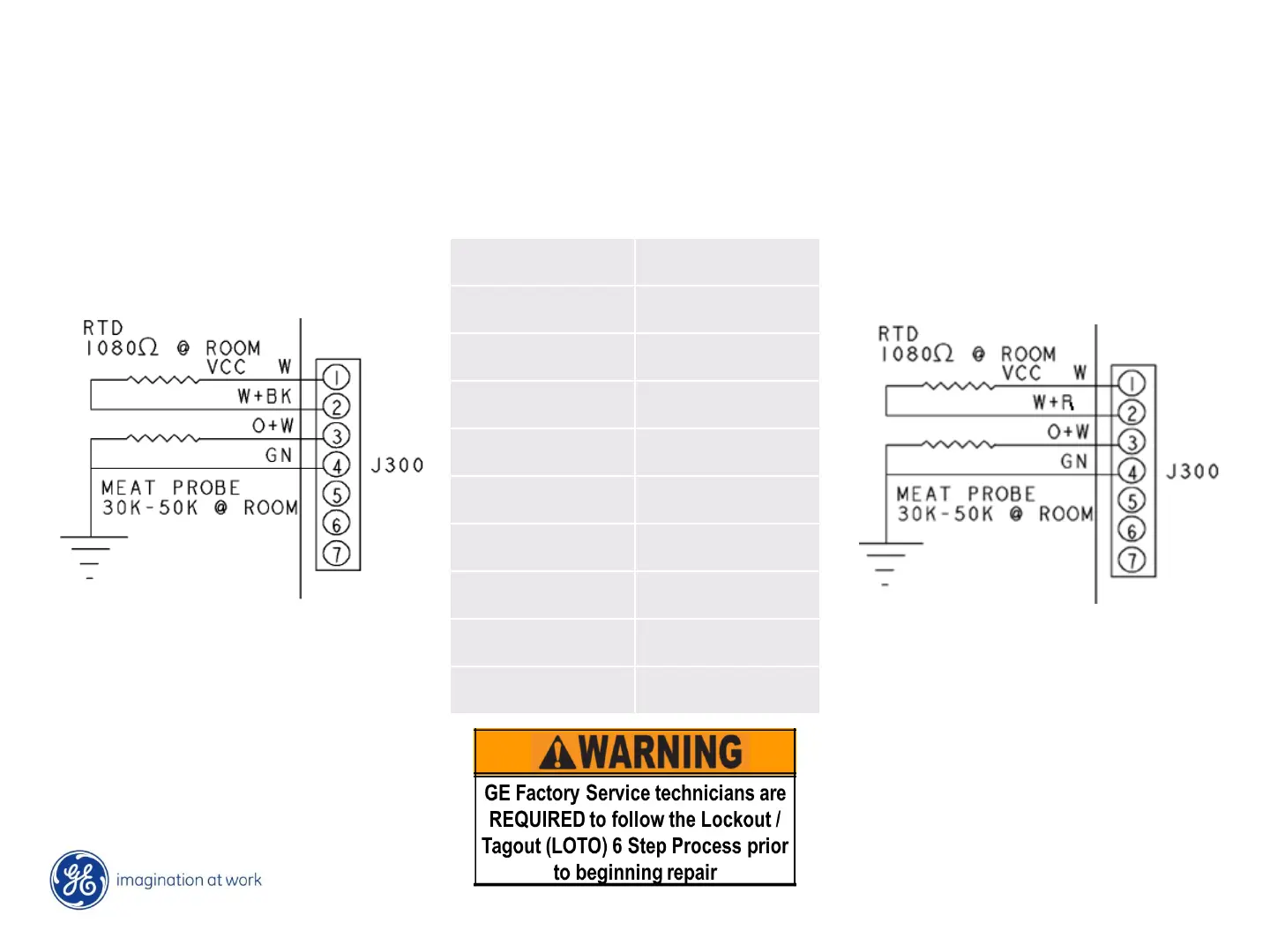

To check the Machine controls sensor circuits. Measure resistance of sensor circuit- For upper oven on
machine control board connector J300 pins 1 to 2 W to W/BK (F20, 21, 30, 31) and for the lower oven on its
machine control board connector J300 pins 1 to 2 W to W/R (F22, 23, 32, 33)
Sensor resistance @
f°
100
°f =approx.
1143
Ω
140
°f =approx.
1226
Ω
180
°f =approx.
1309
Ω
220
°f =approx.
1391
Ω
260
°f =approx.
1473
Ω
300
°f =approx.
1554
Ω
350
°f =approx.
1654
Ω
370
°f =approx.
1694
Ω
400
°f =approx.
1754
Ω
430
°f =approx.
1813
Ω
450
°f =approx.
1852
Ω
470
°f =approx.
1892
Ω
500
°f =approx.
1950
Ω
550
°f =approx.
2047
Ω
600
°f =approx.
2142
Ω
650
°f =approx.
2237
Ω
700
°f =approx.
2331
Ω
800
°f =approx.
2516
Ω
Lower oven - wires 1 to 2
Upper oven - wires 1 to 2
