B-Mode Controls (cont’d)

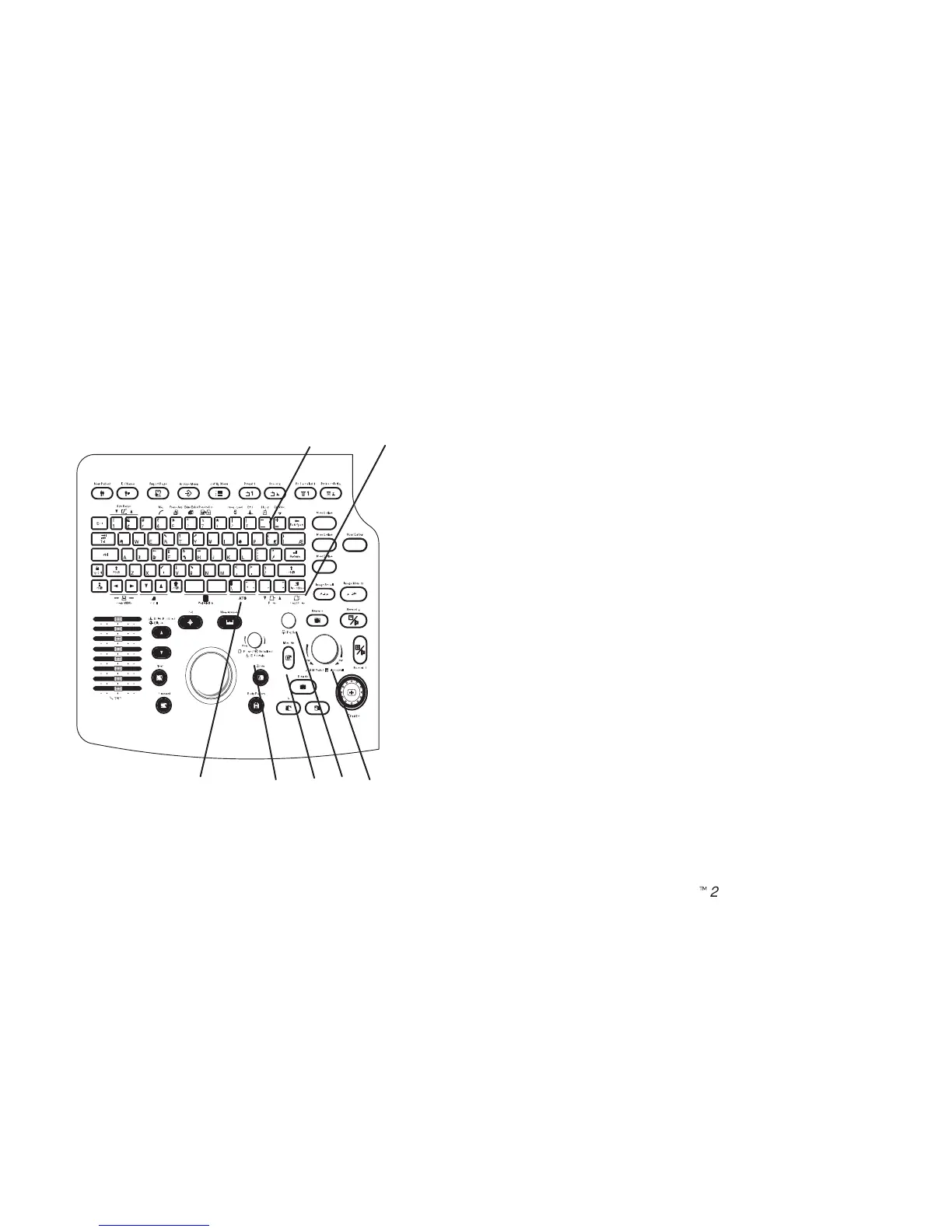

The keyboard controls that effect B-Mode are as follows:
9. Combi Focus—Controls the Focus Combination Value.
10. ATO—Used to optimize the image based upon a specified region of
interest or anatomy within the image.
11. Rotation—Changes the depth at which the selected number of focal
zones are optimized.
12. Reverse—The GE logo at the top of the sector wedge corresponds
to the orientation mark on the probe body. When Reverse is active, the
image flips and the GE logo switches to correspond to the probe mark.
13. Depth—Controls the distance over which the B–Mode images
anatomy.
14. B/M Gain—Controls the amount of echo information displayed in an
image.
15. Biopsy—Enables the electronic biopsy zone(s) available for the
active probe.
15 9
10 11 12 13 14
To Next Page
