Circumference/Area - Ellipse (B–Mode)
Perform a circumference/area using the ellipse method for calculations such as
AC, HC, LVAMd, LVAd and Volume.

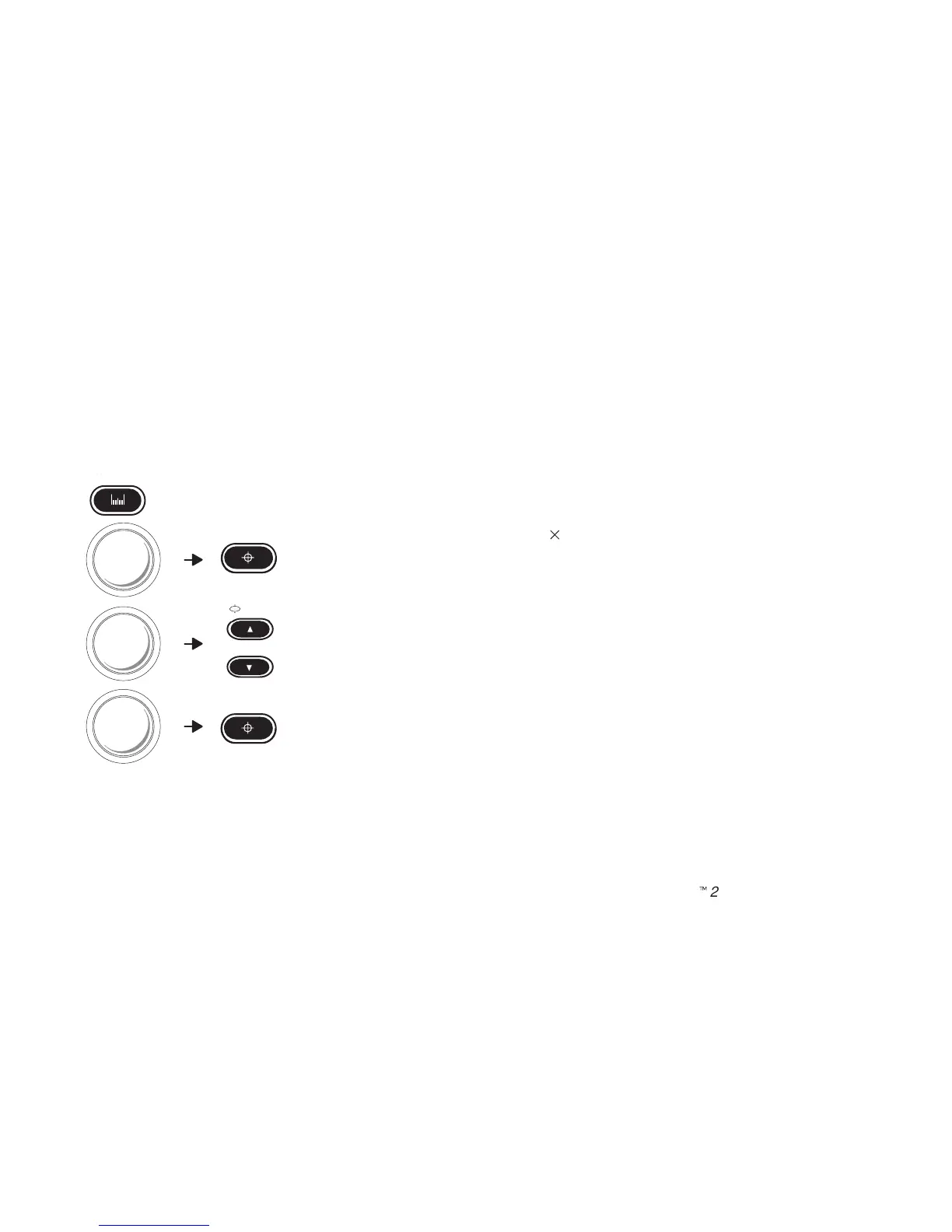

Press Measurement once.
Use the Trackball to move the “
” cursor to either end of the major axis of the
area to measure. Press Set to fix the start point cursor.
Use the Trackball to move the second cursor to the major axis measurement end
point. Press the Ellipse up/down arrow key. An ellipse having an initial circle
shape appears.
Use the Trackball to position the ellipse, as necessary, and to size the measured
axis. Press Set to complete the ellipse measurement and record the
circumference and area.
Measurement
Set
Ellipse
Set
To Next Page
