GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
8-14 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-7 Install Base System (cont’d)
4.) The following screen appears. Press
B then Enter to initialize the C drive
Starting loading Base Image Software. The following appears.
CAUTION
If you select [A], all the archive would be lost.

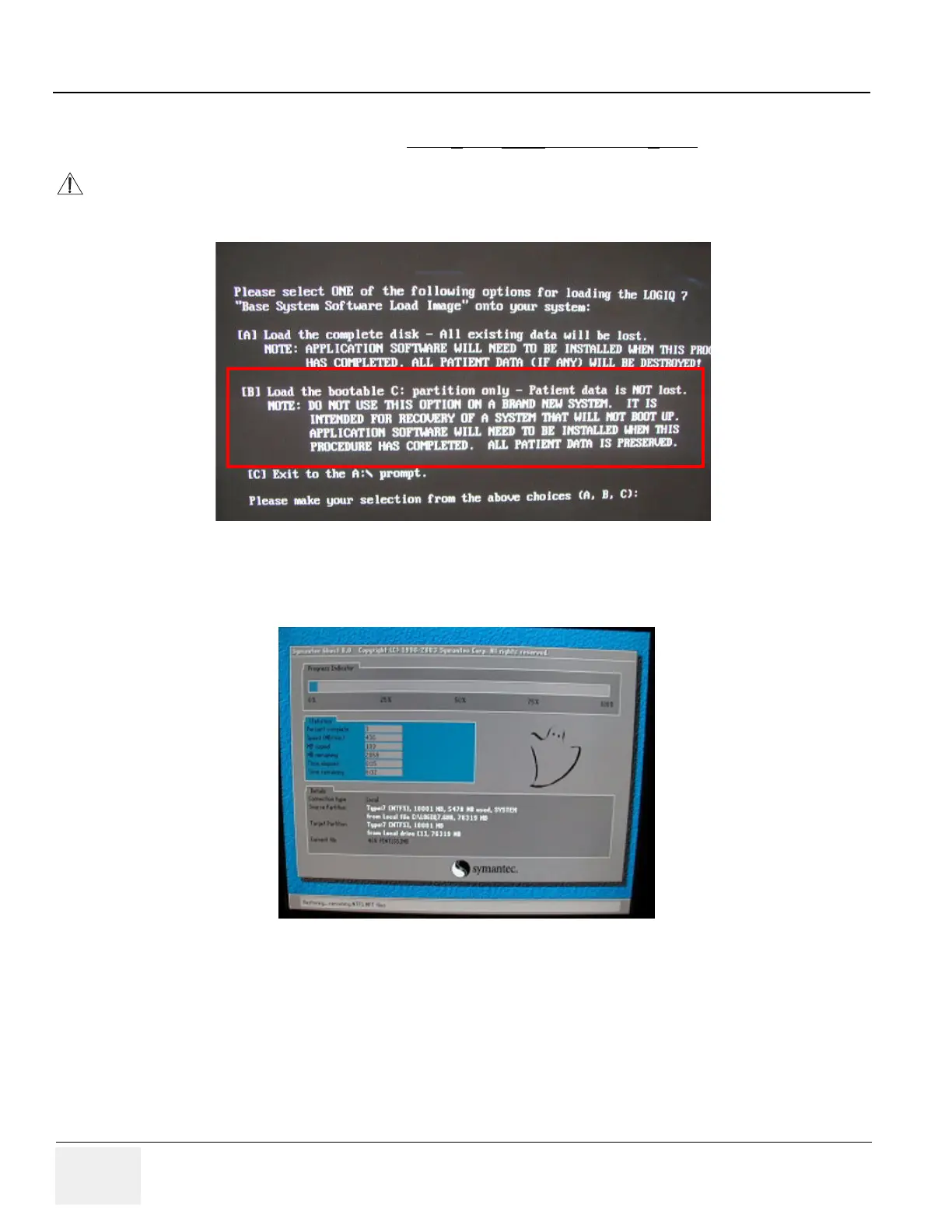

Figure 8-121 Selecting Initialized Drive
Figure 8-122 Software Loading Start Screen
To Next Page
