GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
8-24 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-8-4 Hardware Device Check: (cont’d)
4.) If X or ! is displayed:
- Left-click on the device with x mark, then rigtht-click on Enable.
- Left-click on the device with ! mark, then rigtht-click on Properties to perform the device driver
reconfiguration. When some files are required, designate the file in the directories of
C:\WINDOWS\SYSTEM32 or C:\WINDOWS\SYSTEM32\DRIVERS. If they are not found,
search them using a windows search function.
5.) Close the window.
6.) Go to 8-3-8-4 Hardware Device Check:
8-3-8-5 LAN Parameter Setting
1.) On the desktop, left-click on My Network Places, then right-click on Properties...
2.) Verify that two network icons appears. (If “Local Area Connection” icon does not appear, the
hardware failure might occur.)
3.) Using the right trackball button, double-click on Local Area Connection.
4.) When the following window appears, it will be automatically closed later.

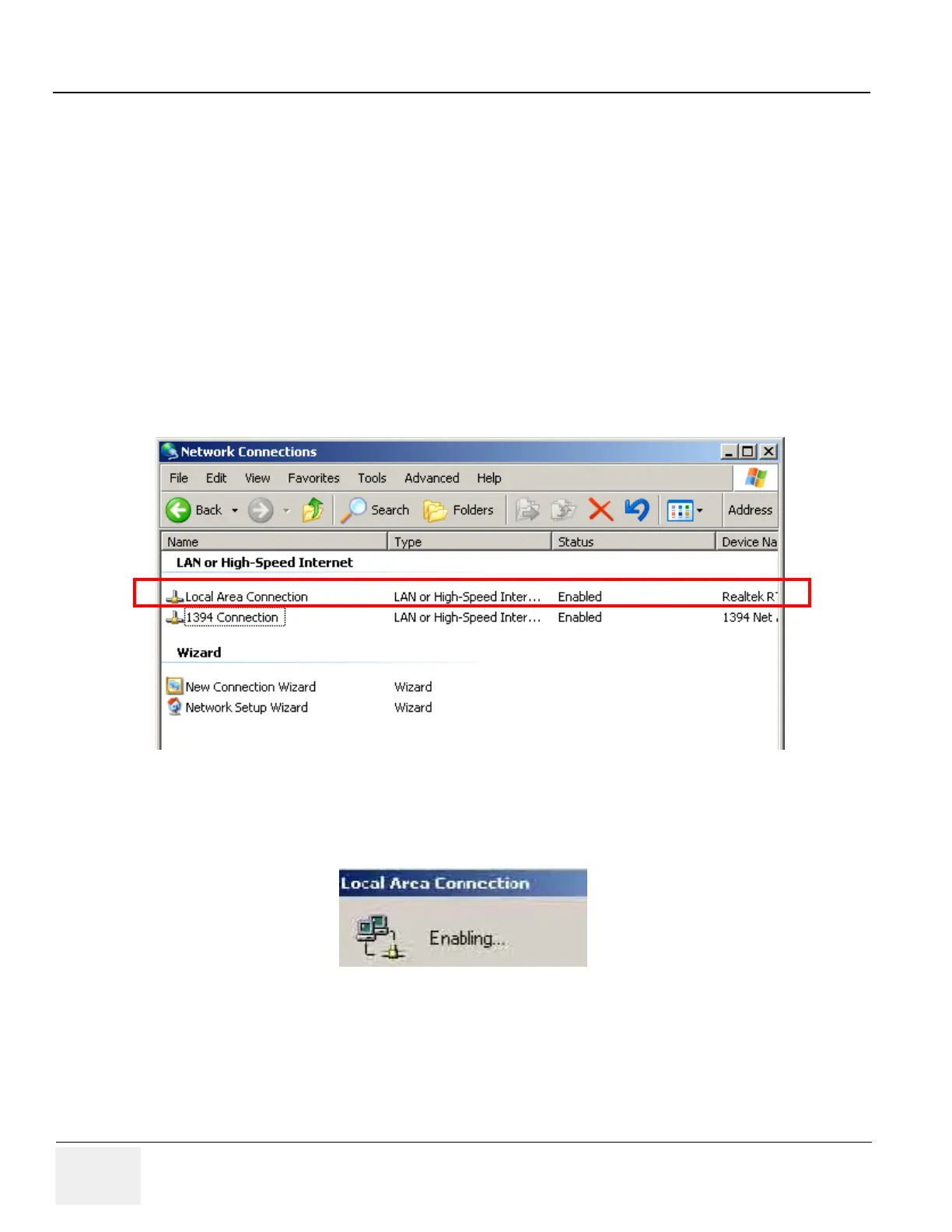

Figure 8-137 Network Connections
Figure 8-138 Local Area Connection Enabling
To Next Page
