GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
8-38 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-10-1 Confirmation of the software version
1.) Touch the Utility button on the Touch Panel.
NOTE: The Operator Login window appears. Select
adm (Administrator) for the Operator field.
Adm (Administrator) will be shown in the Operator field as default.
Enter the password which is configured already (or the password might not be necessary).
Then click on
Log on.

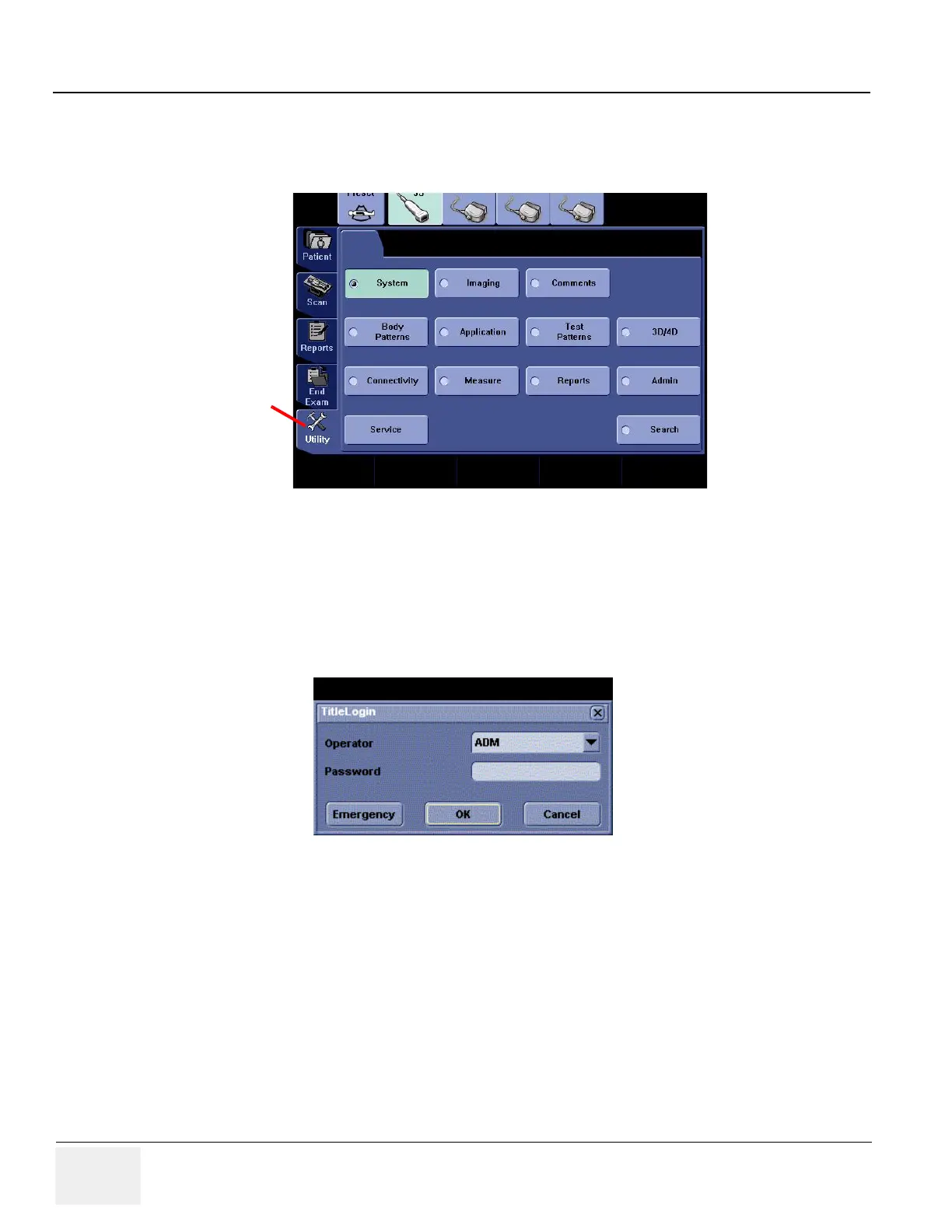

Figure 8-154 Utility
Figure 8-155 Log on
Press
Utility
button.
To Next Page
