DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 9-5 - Renewal Parts List for Original LOGIQ S6 (BT06) 9-13
9-5-3 Monitor

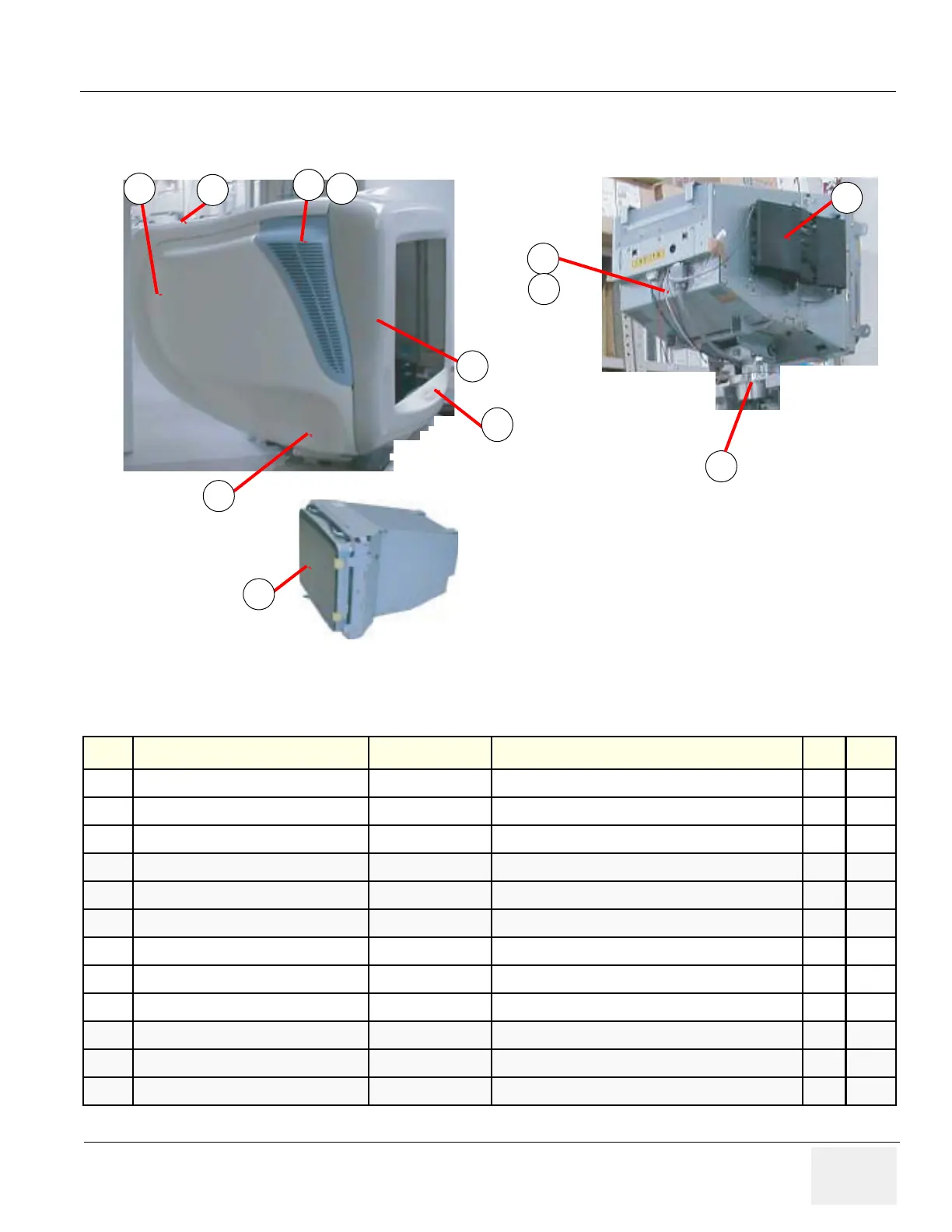

Figure 9-194 Monitor
Table 9-76 Monitor
Item Part Name Part Number Description Qty FRU
30 CRT MONITOR ASSY 2283334-5 Monitor, not including the following parts (31 ~ 41) 1 1
31 MON-REAR-WSP-ASSY 2303930 rear cover of monitor 1 1
32 MON-CAP-ASSY 2303932 cap to cover screws 1 2
33 MON-FRONT-ASSY 2303929-3 front cover of monitor 1 2
34 SPEAKER & BRACKET ASSY 2386616 2 1
35 USER SW ASSY OF MONITOR 2297050 microphone and switch 1 1
36 MON-CABLE-ASSY 2304171 cable 1 1
37 NECH-PIPE 5147551 1 1
38 NECK ASSY 2284225 1 1
39 Grill, Left 2279675 1 2
40 Grill, Right 2279676 1 2
41 CRT CONN ASSY 5155394 CB47+CB48+CB49 1 1
34
31
32
39
40
38
30
33
35
36
37
41
