3-4 Section 3-1 - Overview
Section 3-2 Receiving and Unpacking the Equipment (cont’d)
NOTE: Check the shipping container for special instructions. Verify that the container is intact. In some
cases a secondary container may be used. If so, ask the carrier for unpacking instructions.
NOTICE
For the protection of LCD monitor, re-use the packing sleeve whenever possible, in case of shipment
after unpacking.

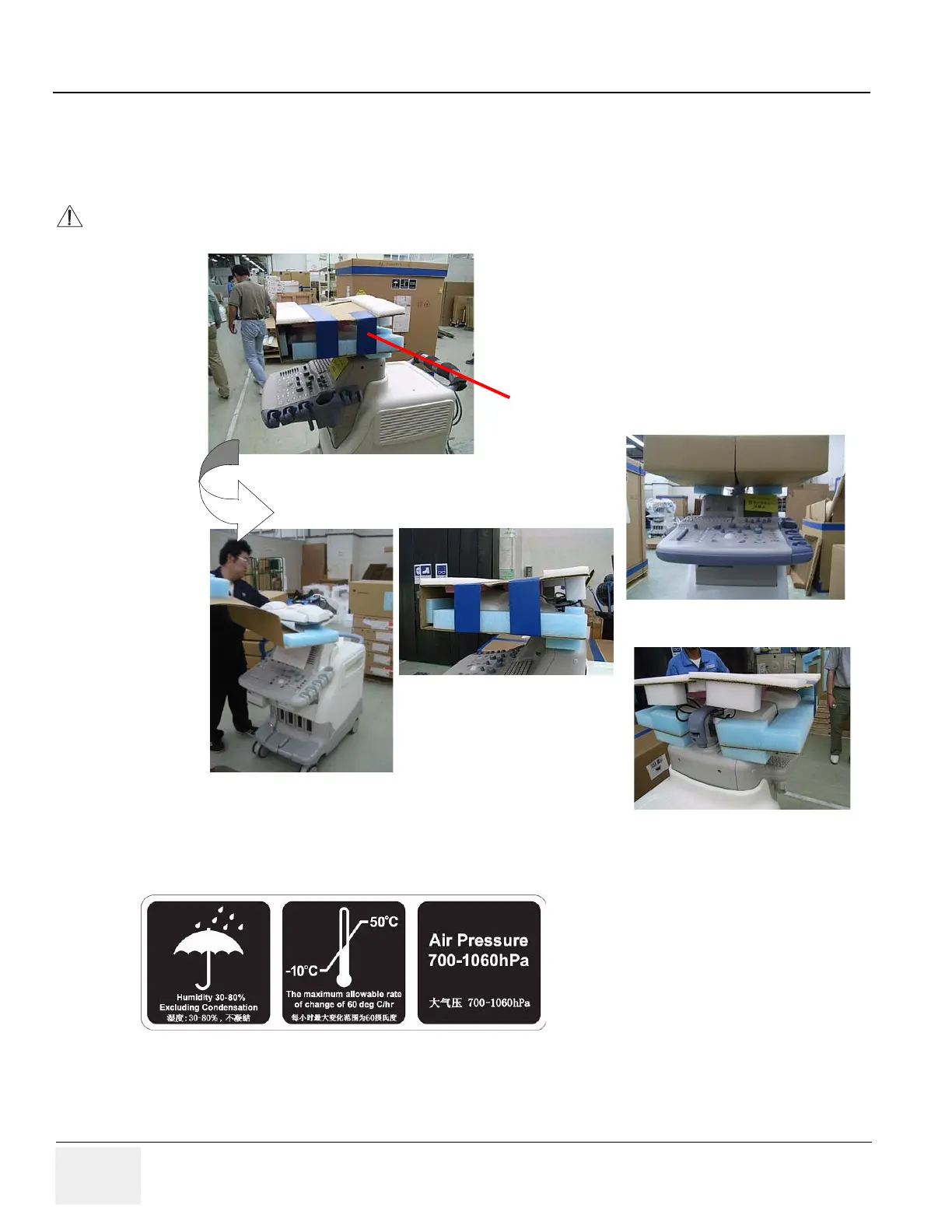

Figure 3-6 Labels on Package
Secure the LCD Sleeve with adhesive tape after
placing it to the proper location.
Adhesive Tape (Each side)
Turn over the LCD monitor, and
place the sleeve to the location
above. Make sure LCD arm is
locked.
Pull over the sleeve to the LCD arm, and
secure the LCD Sleeve with adhesive
tape after placing it to the proper
location.
Rear view after packed
Front view after packed
Note: These labels are attached onto the
shipping box, defining environment at
which consoles are to be transported or
stored.
