GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3BASIC SERVICE MANUAL
Section 8-3 - Loading Base Image Software 8 - 5
Section 8-3 Loading Base Image Software (cont’d)
6.) Select one of the options for loading the system. Select choice 1] to load the complete disk.
7.) Press any key to continue when below message display as shown below.

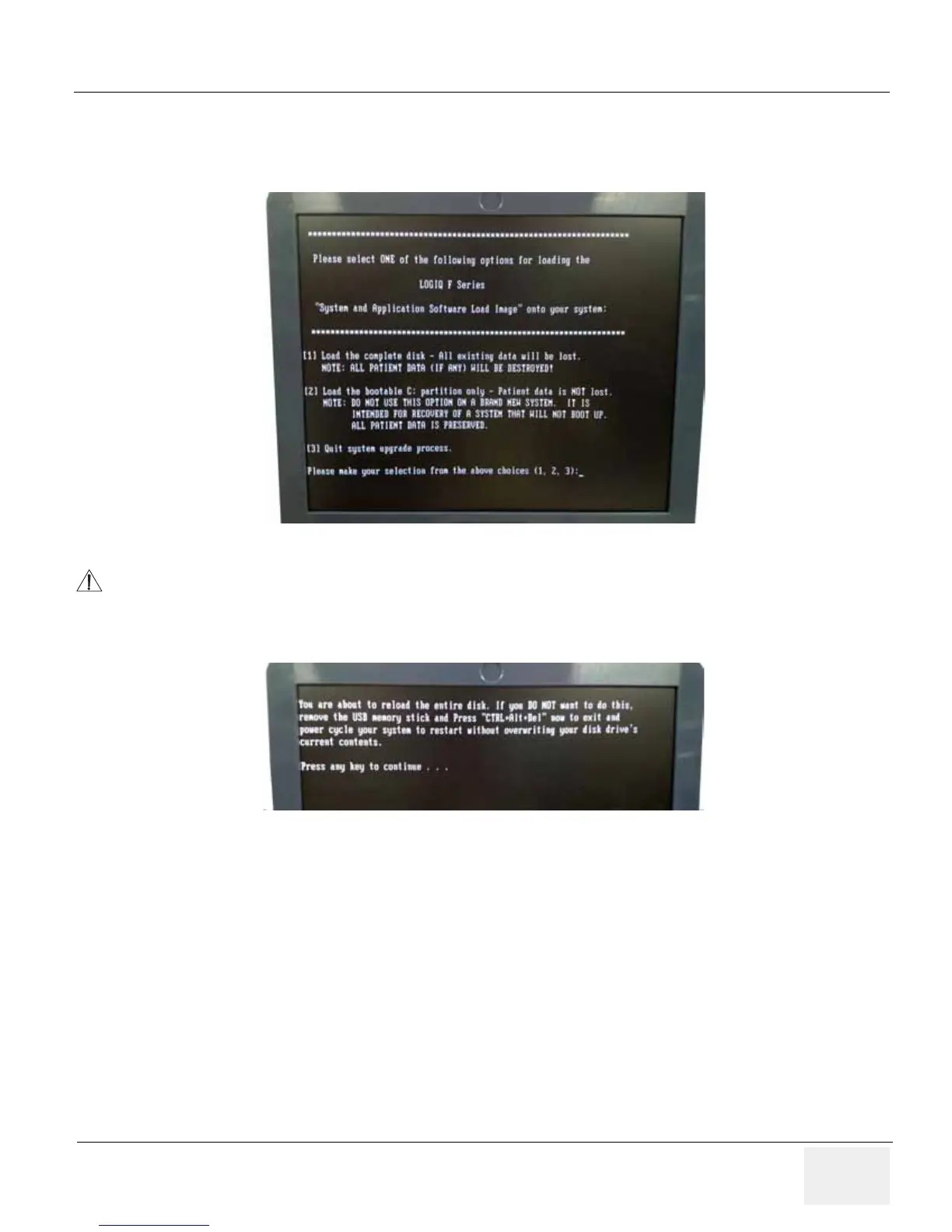

Figure 8-11 Selection for loading the system
While the software install procedure is designed to preserve data, you should select
choice [2] to format disk C only.
Figure 8-12 Upgrade continue message
