8 - 6
Section 8-3 - Loa
ding Base Image Software
Section 8-3 Load
ing Base Image Software
(cont’d)
8.)
System will be loaded as
shown in the screen below.
9.)
System updating finished, refer
to
Fi
gure 8-14 on p
age 8-6
.
10.)
Remove the USB stick, then pr
ess power key to restart
system.

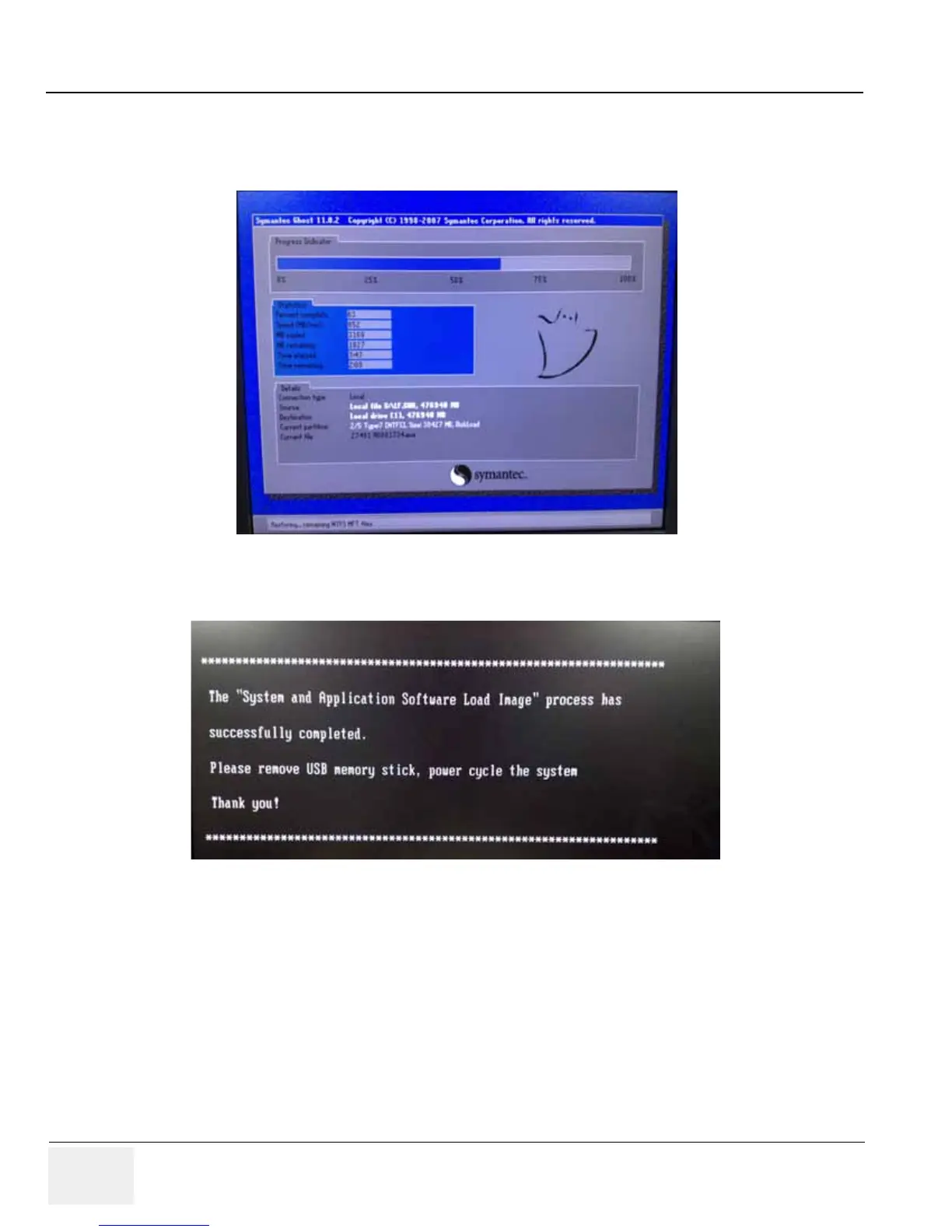

Figure 8-13 System Load
Figure 8-14 System upgrade
complete
