Powering On and
Connecting to the
Instrument

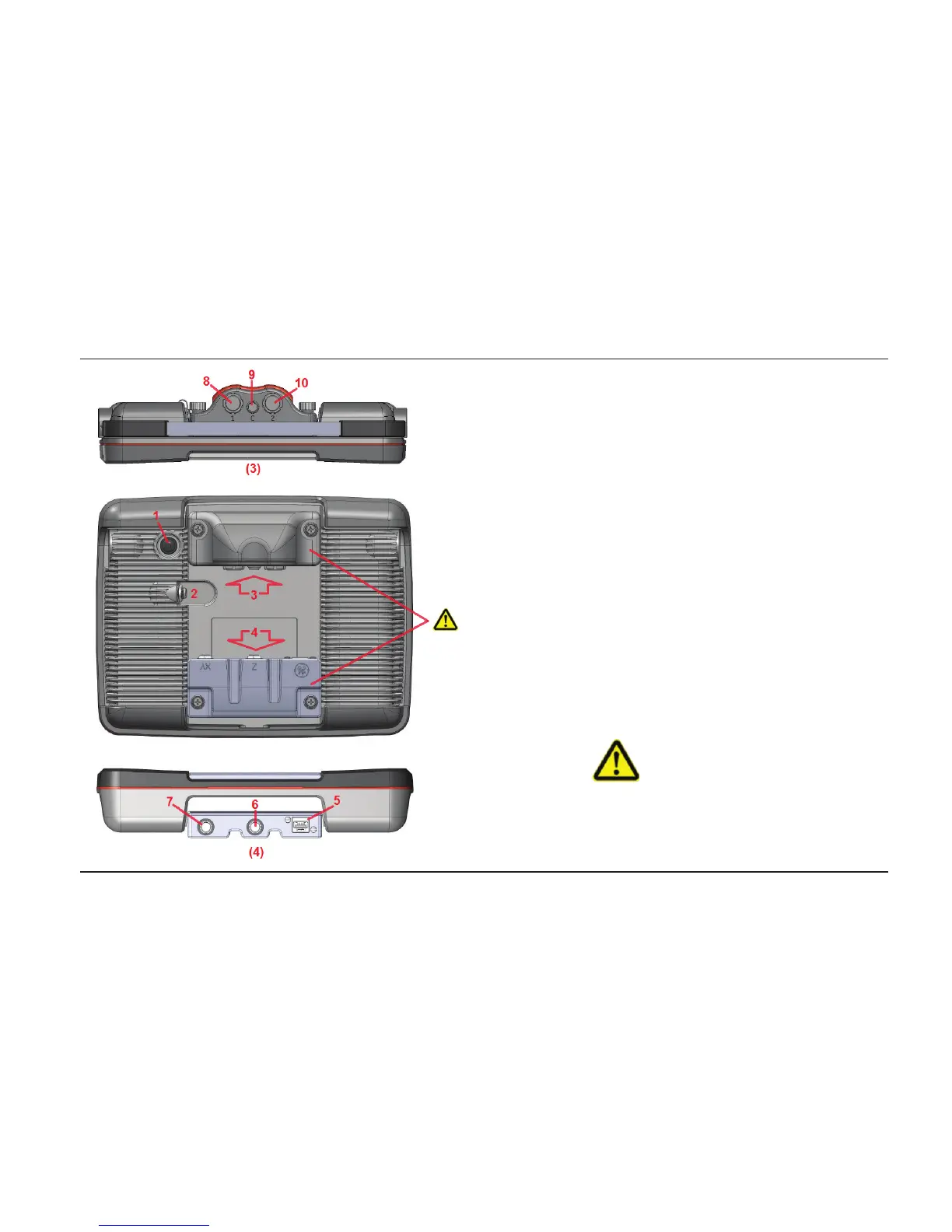

1 - Press and momentarily hold to power on the
instrument.
2 - Connect the AC power adapter here.
3 - EM probe connectors are inserted here (optional,
varies by probe type).
4 - Connectivity module includes various data ports
(optional)
5 – USB
6 – Encoder Z, Alarm and Inhibit signals
7 – Encoder XY and Encoder Index
8 – Input 1
9 – Conductivity Probe
10 – Input 2
CAUTION
The instrument must be powered OFF before
attaching or removing these or other modules. To
avoid equipment damage, only attach modules in
the correct orientation and to the proper port.
