Using the Data Review Tool
With the Strip Chart Overview enabled, the active data display can be frozen at
any time throughout the scan. This allows the user to use the Data Review Tool
to more closely review data acquired at any point during the indicated Scan
Time. Note that the user denes exactly what data to review

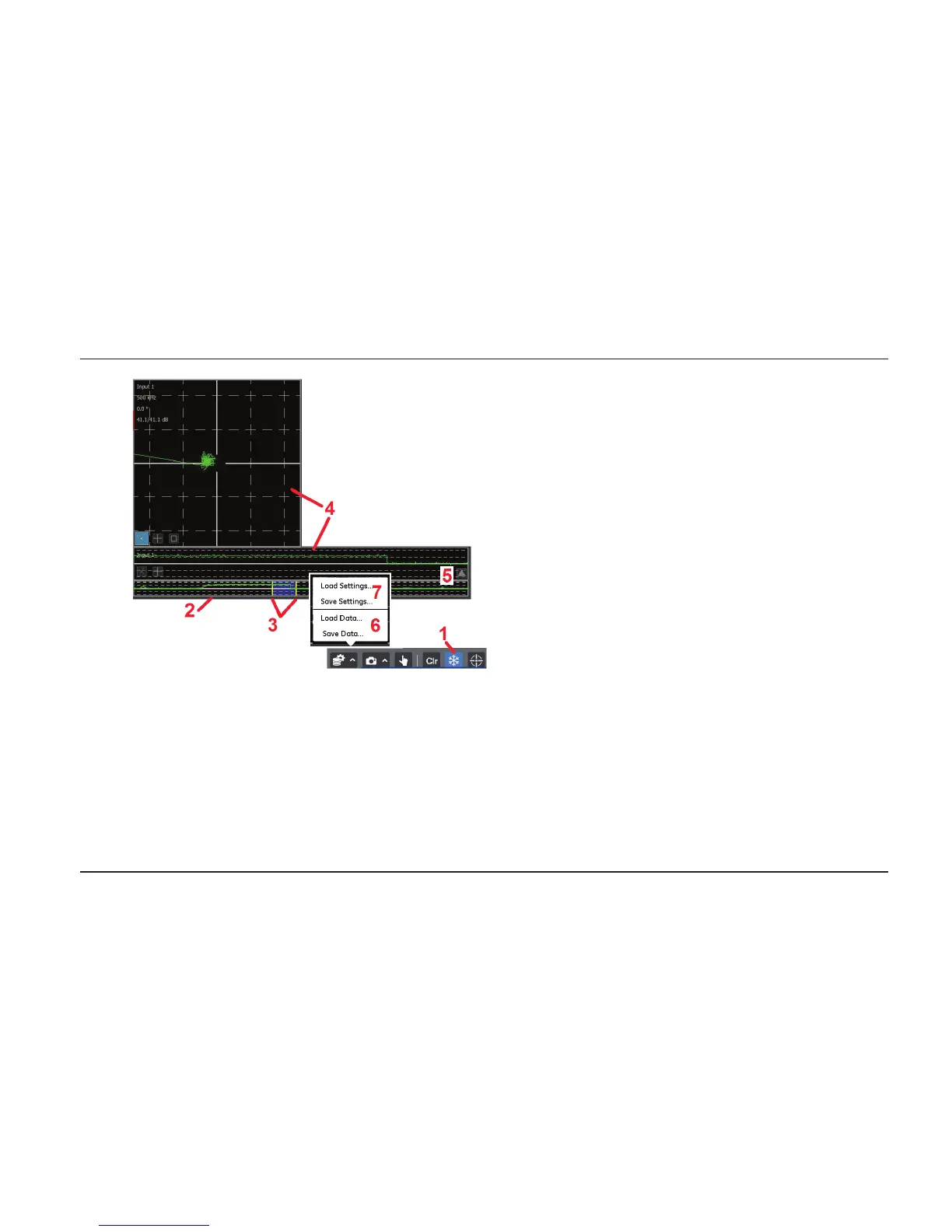

1 – Freeze the data display to use the Data Review
Tool. Touch again to return to live data display.
2 – The Strip Chart Overview shows all data
collected during the indicated Scan Time.
3 – Touch and drag any portion of the Strip Chart
Overview to review the data that falls within these
moveable yellow bars.
4 – The data acquired in the time period dened
by the moveable yellow bars appears in both the
Data View Screen and Strip Chart. Note that only
the data acquired in the dened time period now
appears in the Data View Screen and Strip Chart.
Note that once the overview tool is open, swiping or
pinching/expanding the main strip chart changes
the position and/or zoom level of the overview tool.
5 – Touch to open or close the Strip Chart Overview
tool.
6 – Select to Save currently acquired data (display
must rst be frozen) or to Load previously saved
data.
7 – Saves parameter settings for the currently
active workow. Settings can later be reloaded, but
only in the same workow.
