User's Manual Mentor EM Portable Equipment
Working with Gates
The Gates menu provides access to those
parameters that impact gate position, shape,
and functioning characteristics. A description
of each parameter is found in the Appendix.
Each workow's architect determines which
gate-controlling parameters are viewable and
adjustable. Refer to the previous pages of this
manual to access the EM Setup and Display menus.

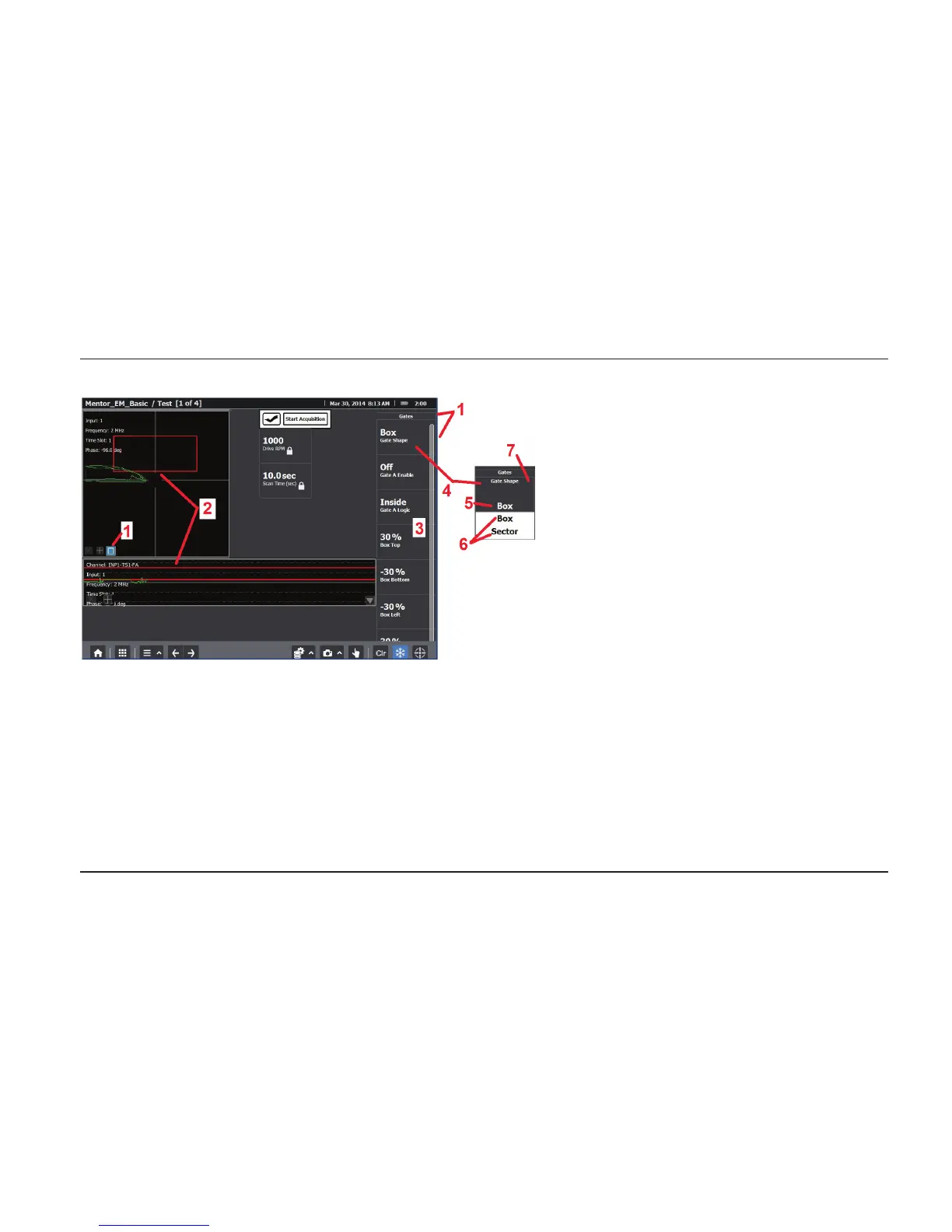

1 – Select the Gate Icon to open the Gates menu.
2 – Gates (change color and illuminate LED when
triggered by an alarm condition)
3 – Drag up or down to access all gate-conguring
parameters available for viewing or (if enabled)
modication. These include: Gate Shape (Box or
Sector), the number of gates enabled for each
channel, the triggering logic of each gate, and each
gate’s size and position.
4 – Touch the desired parameter control to activate
it and (if enabled) set its value.
5 – Displays the active parameter’s current value.
6 – Select the desired value for the active
parameter.
7 – Press to deactivate the parameter.
