MM2 Motor Manager 2 8-13
8 MM2PC
®
SOFTWARE 8.5 CHASSIS MOUNT UNITS
8
8.5 CHASSIS MOUNT UNITS 8.5.1 DESCRIPTION
MM2 chassis mount units no longer support automatic baud rate linking. The default communication
settings are 9600 baud, 8 data bits, one stop bit, no parity. It is necessary to initially communicate
with these settings and change them one at a time. After each change the master must be changed
to match the communication setting change in the MM2.
8.5.2 SETTING THE BAUD RATE AND PARITY
Assume your system communicates at 19200 baud and even parity.
1. Use MM2PC
®
to establish communications with the chassis mount MM2 at 9600 baud and no
parity.

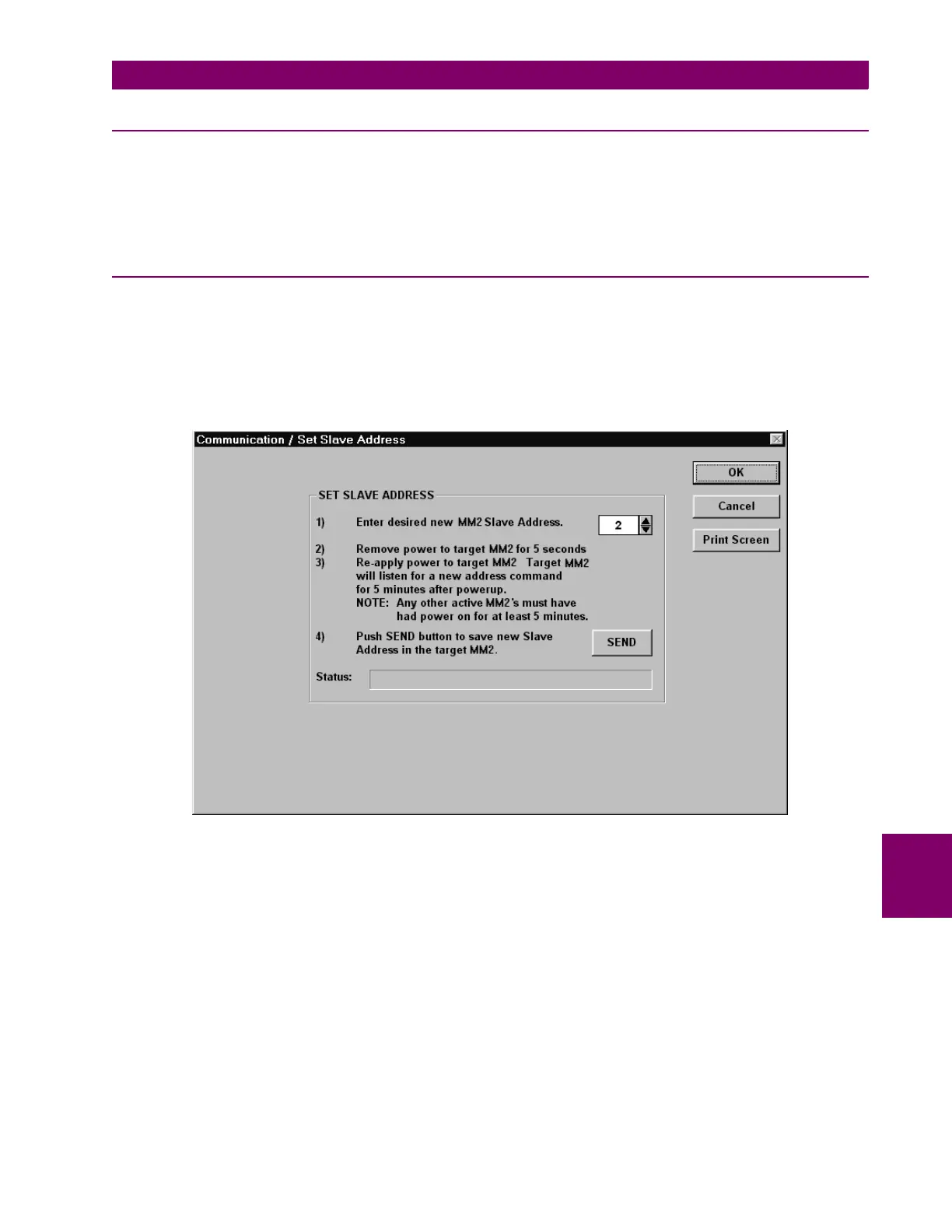

2. Select the Communication > Set Slave Address menu item and follow the on screen instruc-
tions to store the communication address of the MM2. When completed, select OK to exit.
