Working with setpoints and setpoint files
750/760 Quick Reference Guide 21
Adding setpoints files to the environment
The EnerVista 750/760 Setup software provides the capability to review and manage a
large group of setpoint files. Use the following procedure to add a new or existing file to the
list.

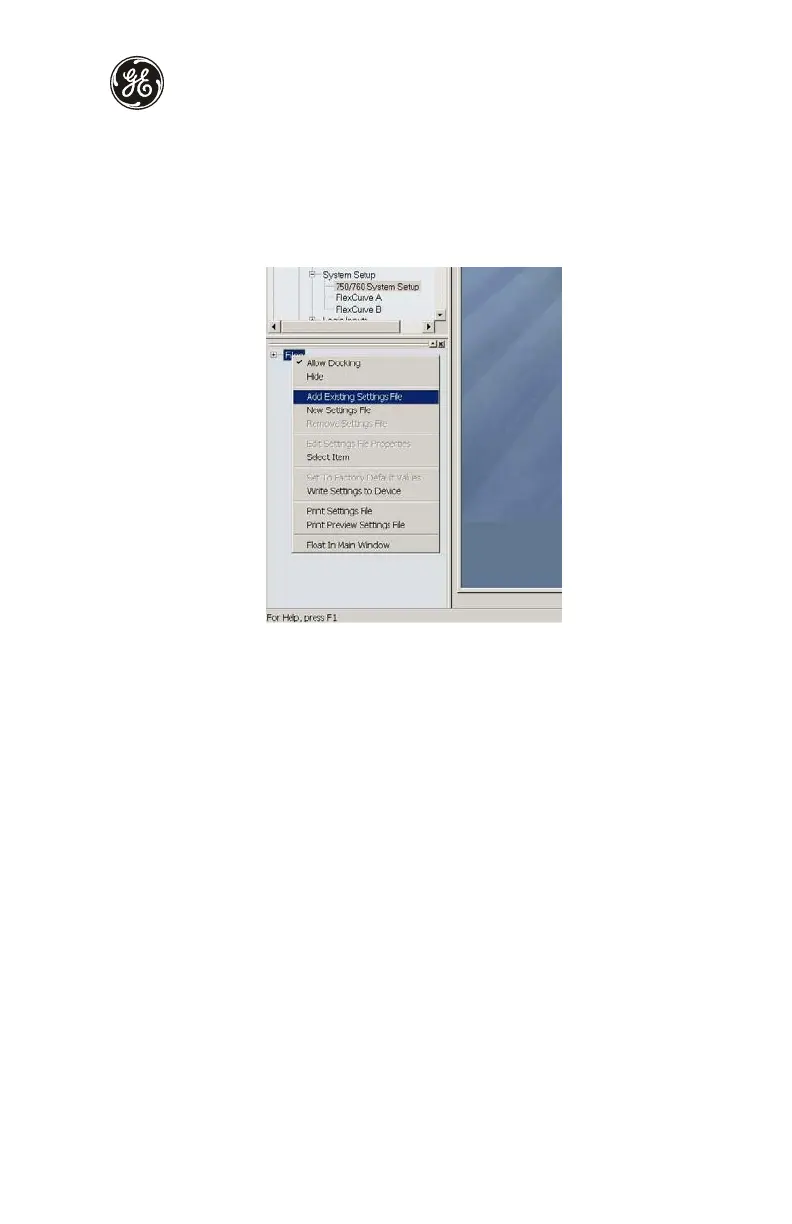

1. In the files pane, right-click on ‘Files’ and select the Add Existing Setting File item as
shown:
2. The Open dialog box will appear, prompting the user to select a previously saved
setpoint file. As for any other MS Windows
®
application, browse for the file to be
added then click Open. The new file and complete path will be added to the file list.
Creating a new setpoint file
The EnerVista 750/760 Setup software allows the user to create new setpoint files
independent of a connected device. These can be uploaded to a relay at a later date. The
following procedure illustrates how to create new setpoint files.
1. In the File pane, right click on ‘File’ and select the New Settings File item. The
EnerVista 750/760 Setup software displays the following box will appear, allowing for
the configuration of the setpoint file for the correct firmware version. It is important to
define the correct firmware version to ensure that setpoints not available in a
particular version are not downloaded into the relay.
2. Select the Device Type, Hardware Revision, and Firmware Version for the new setpoint
file.
3. For future reference, enter some useful information in the Description box to facilitate
the identification of the device and the purpose of the file.
4. To select a file name and path for the new file, click the button beside the Enter File
Name box.
