Working with setpoints and setpoint files
750/760 Quick Reference Guide 23

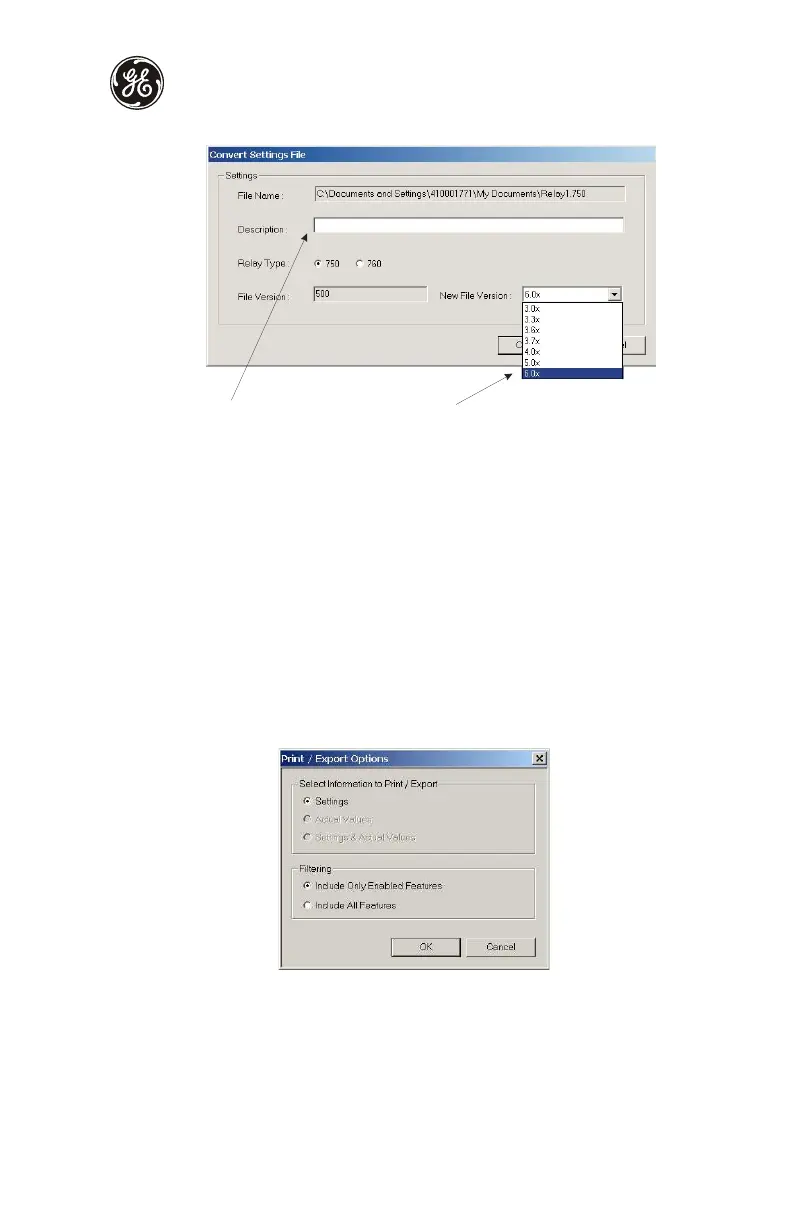

6. When complete, click Convert to convert the setpoint file to the desired revision. A
dialog box will request confirmation. See Loading setpoints from a file on page 24 for
instructions on loading this setpoint file into the 750/760.
Printing setpoints and actual values
The EnerVista 750/760 Setup software allows the user to print partial or complete lists of
setpoints and actual values. Use the following procedure to print a list of setpoints:
1. Select a previously saved setpoints file in the File pane or establish communications
with a 750/760 device.
2. From the main window, select the File > Print Settings menu item.
3. The Print/Export Options dialog box will appear. Select Settings in the upper section
and select either Include All Features (for a complete list) or Include Only Enabled
Features (for a list of only those features which are currently used) in the filtering
section and click OK.
4. The process for File > Print Preview Settings is identical to the steps above.
Setpoints lists can be printed in the same manner by right clicking on the desired file (in the
file list) or device (in the device list) and selecting the Print Device Information or Print
Settings File options.
A complete list of actual values can also be printed from a connected device with the
following procedure:
Select the desired setpoint version
from this menu. The 6.0x indicates
versions 6.00, 6.01, 6.02, etc.
Enter any special comments
about the setpoint file here.
