3–4 EPM 6000 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE
CHAPTER 3: INSTALLATION
Z From back of the panel, slide 2 DIN mounting brackets into the
grooves on the top and bottom of the meter housing, then snap
into place.
Z Secure meter to panel with a lock washer and #8 screw through
each of the two mounting brackets.
Tighten with a #2 Phillips screwdriver – do not overtighten.

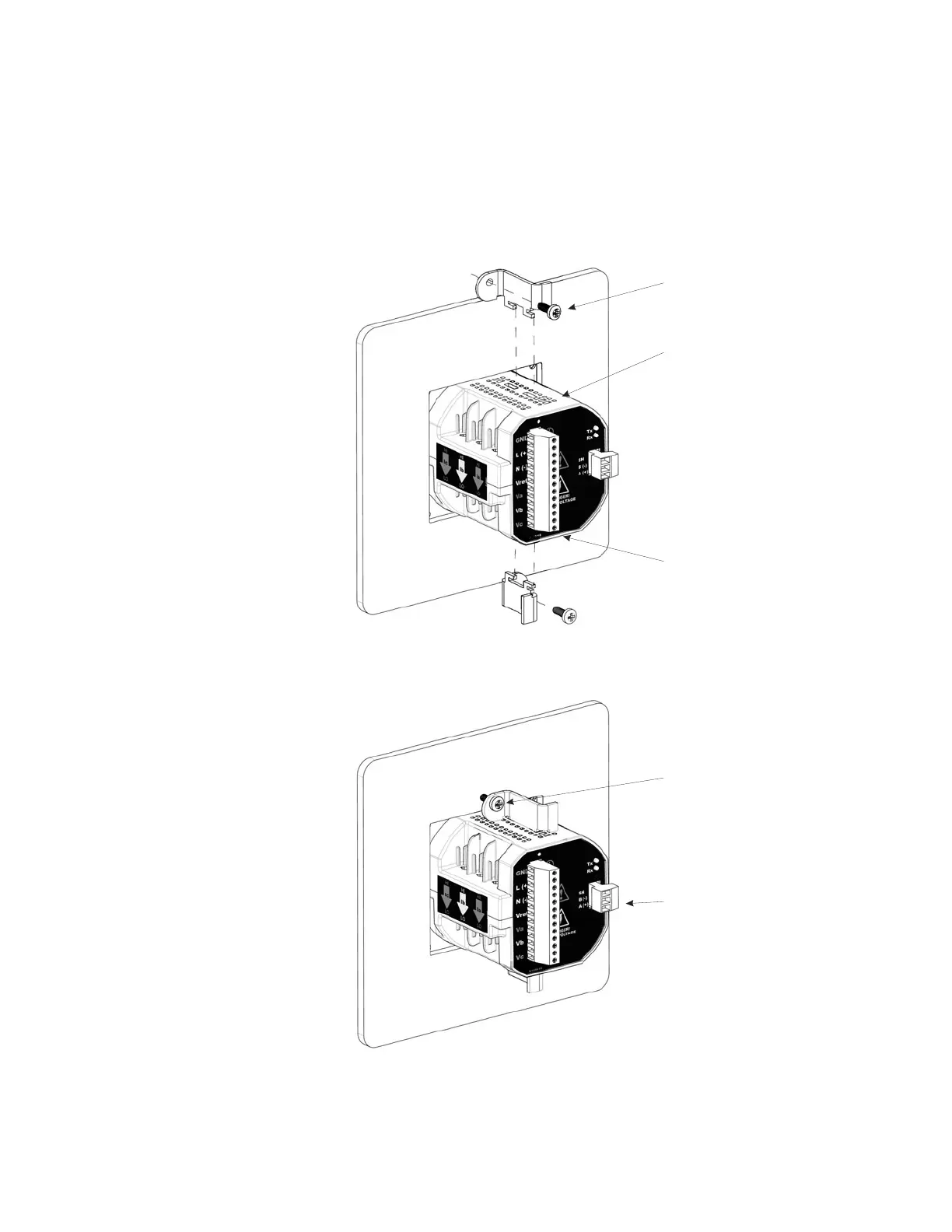

FIGURE 3–4: DIN Mounting Procedure
DIN mounting
bracket
top-mounting
bracket groove
bottom mounting
bracket groove
#8 screw
EPM 6000 meter
with NEMA 12
mounting gasket
