CHAPTER 3: INSTALLATION

EPM 6000 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 3–15

3.3.7 Delta, 3-Wire with 2 PTs and 2 CTs

For this wiring type, select 2CtdEL (2 CT Delta) in the meter programming setup.

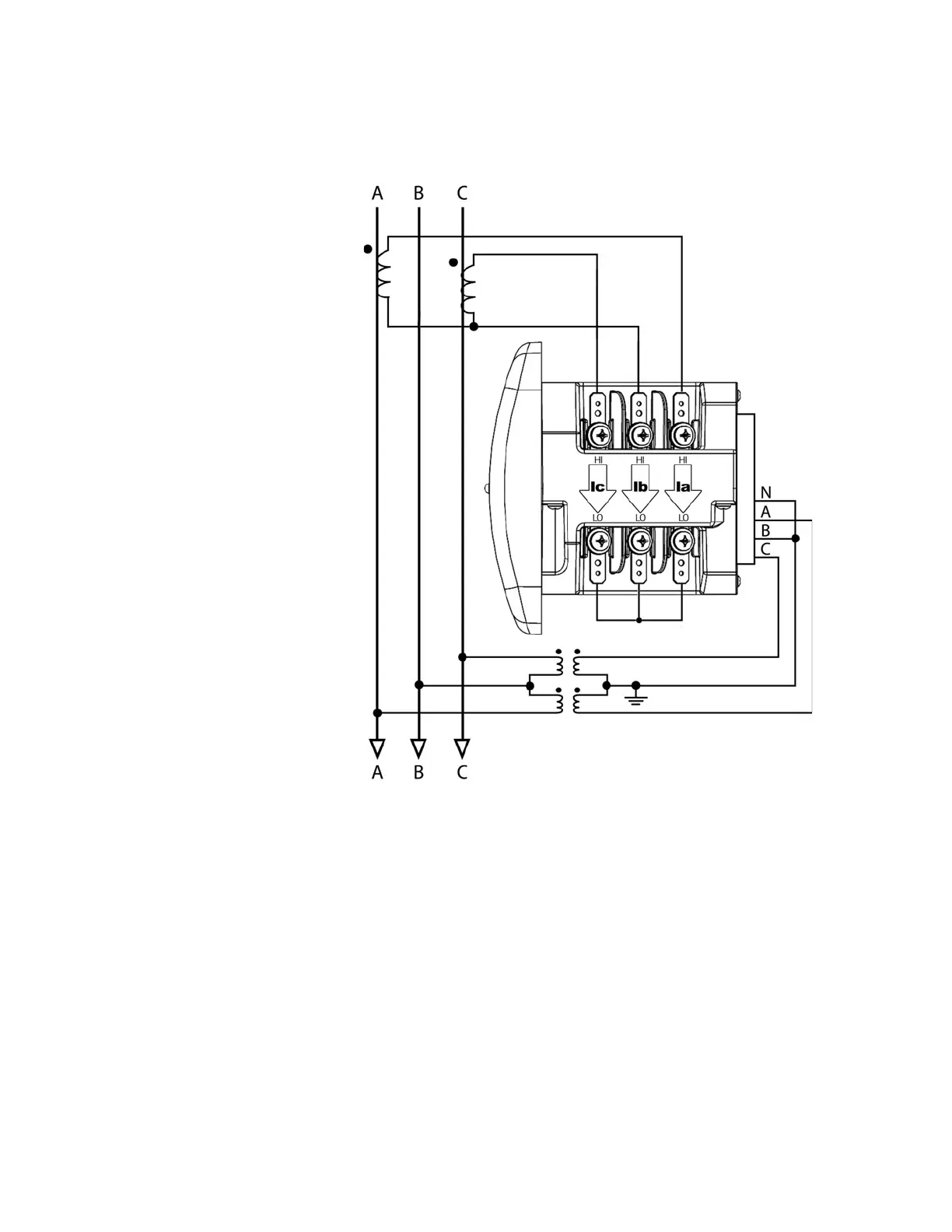

FIGURE 3–14: 3-Wire Delta with 2 PTs and 2 CTs
