CHAPTER 3: INSTALLATION

EPM 6000 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 3–11

3.3.3 Wye, 4-Wire with no PTs and 3 CTs, 2.5 Element

For this wiring type, select 2.5EL WYE (2.5-element Wye) in the meter programming setup.

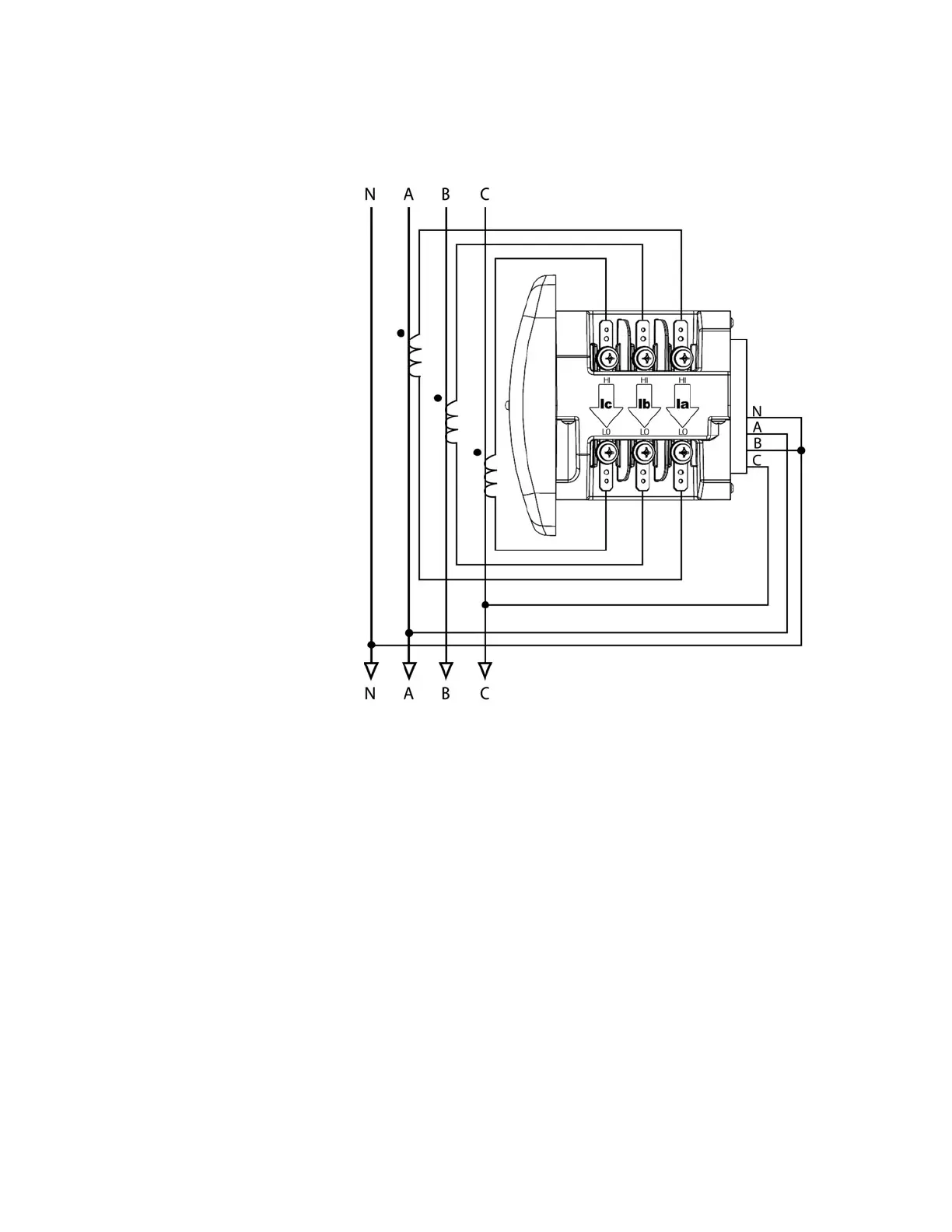

FIGURE 3–10: 4-Wire Wye with no PTs and 3 CTs, 2.5 Element
