3–20 EPM 6000 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 3: INSTALLATION

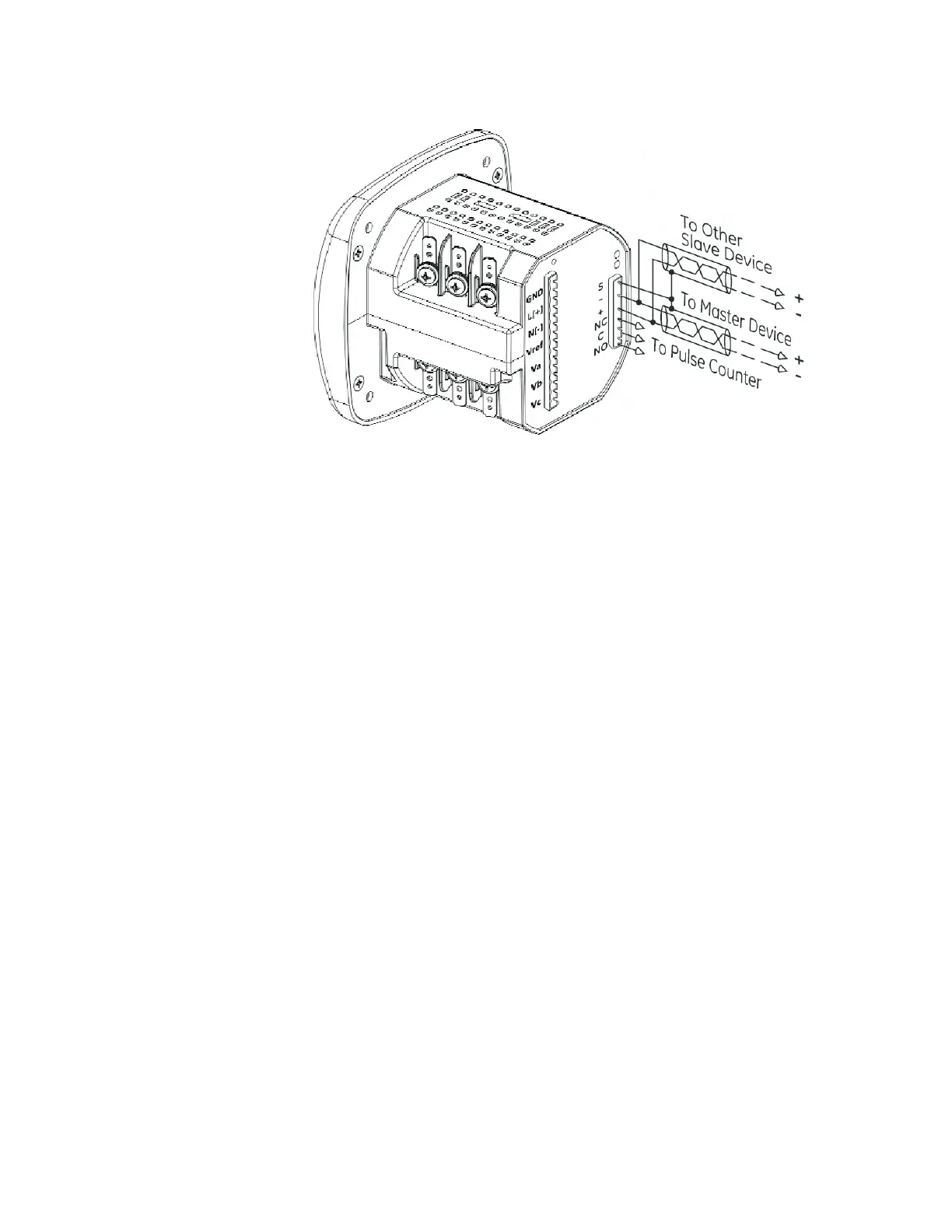

FIGURE 3–16: RS485 Communications Installation

The EPM 6000 COM2 port can be programmed through the faceplate or with software.

The standard RS485 port settings are:

Address: 001 to 247

Baud rate: 9.6, 19.2, 38.4, or 57.6 kbps

Protocol: Modbus RTU, Modbus ASCII, or DNP 3.0
