7–10 MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL
ACCESS USING RADIUS CHAPTER 7: ACCESS USING RADIUS

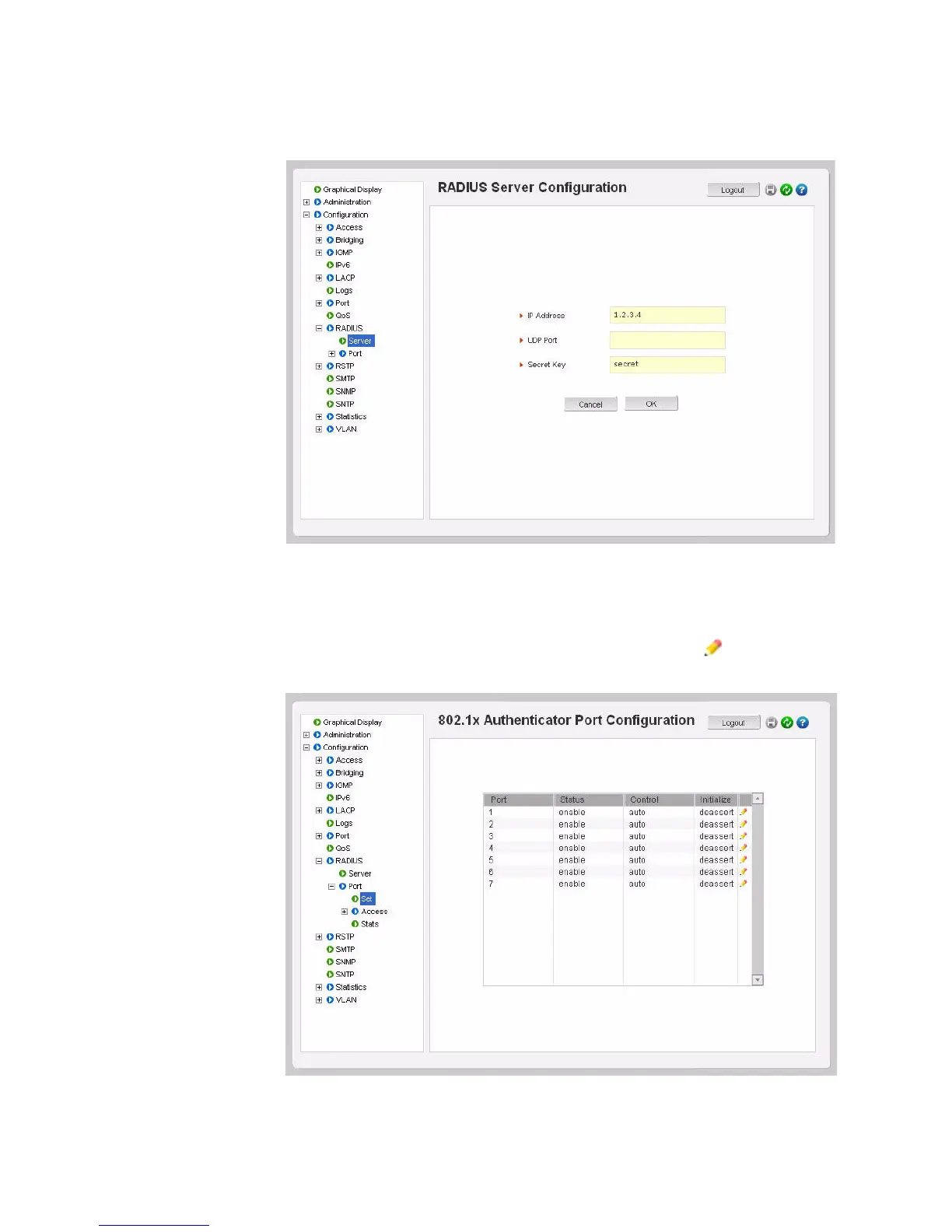

The following figure illustrates the editing of information for the RADIUS server. Note the
UDP port number can be left blank and the default port 1812 is used.
After configuring the server information, specific port information is configured.
Z Select the Configuration > Radius > Port > Set menu item to
configure the RADIUS characteristics of each port.
Z To edit the port settings, click on the edit icon ( ).
