CHAPTER 10: VLAN VLAN
MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL 10–23

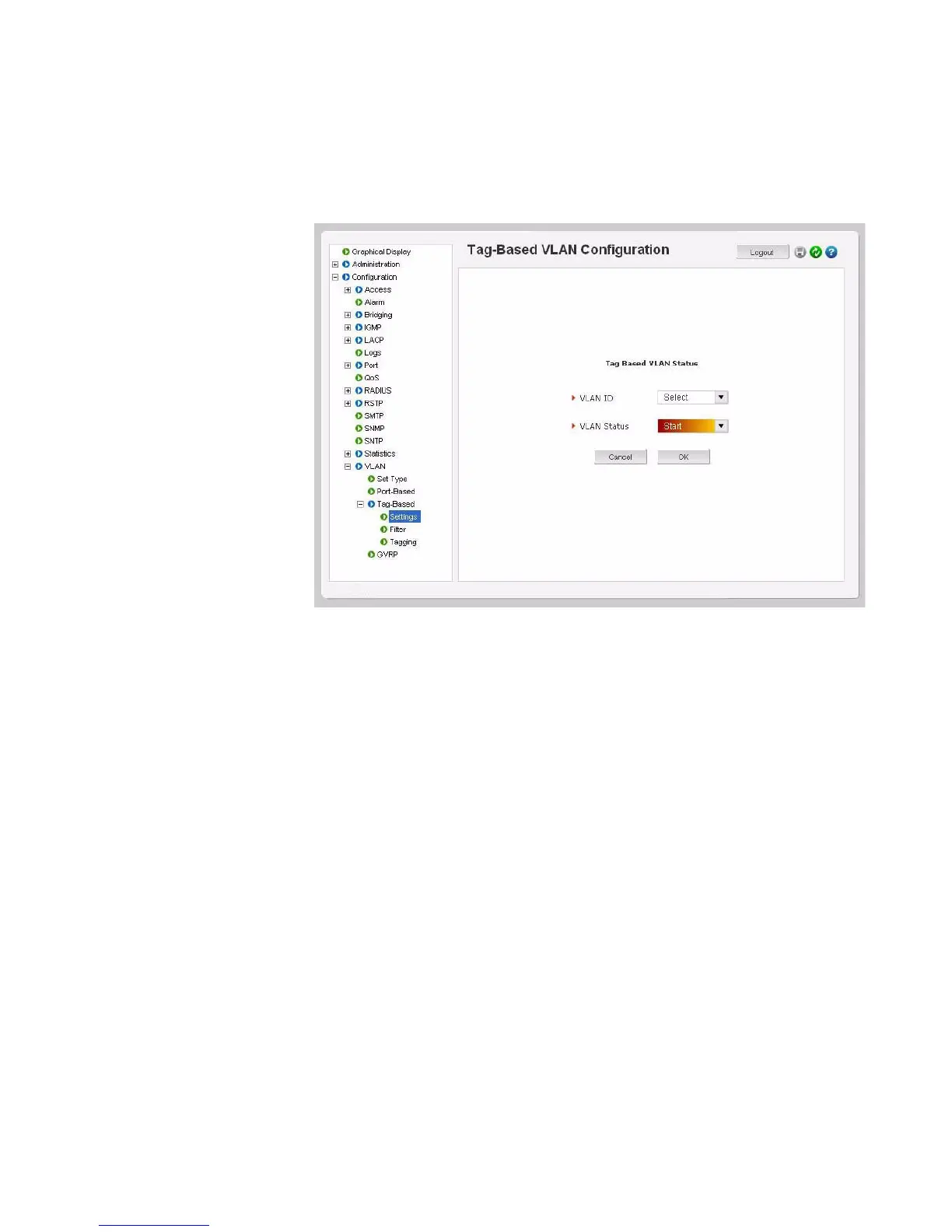

To activate the VLAN,
Z Click on the Status button under the Configuration >VLAN >Tag-
Based > Settings menu.
Z Click OK.
Tagged VLANs can be viewed from the Configuration > VLAN > Tag-Based > Tagging
menu.
To add or delete specific ports from a VLAN,
Z Click on Join & Leave button from the Configuration > VLAN >. Tag-
Based > Settings menu and specify the action.
In the example below, we will take port 2 and assign it to leave VLAN
10. After the action is completed, note that port 2 will belong to VLAN
1 only.
