CHAPTER 16: SNMP SNMP
MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL 16–13
Z When done adding stations, click OK.

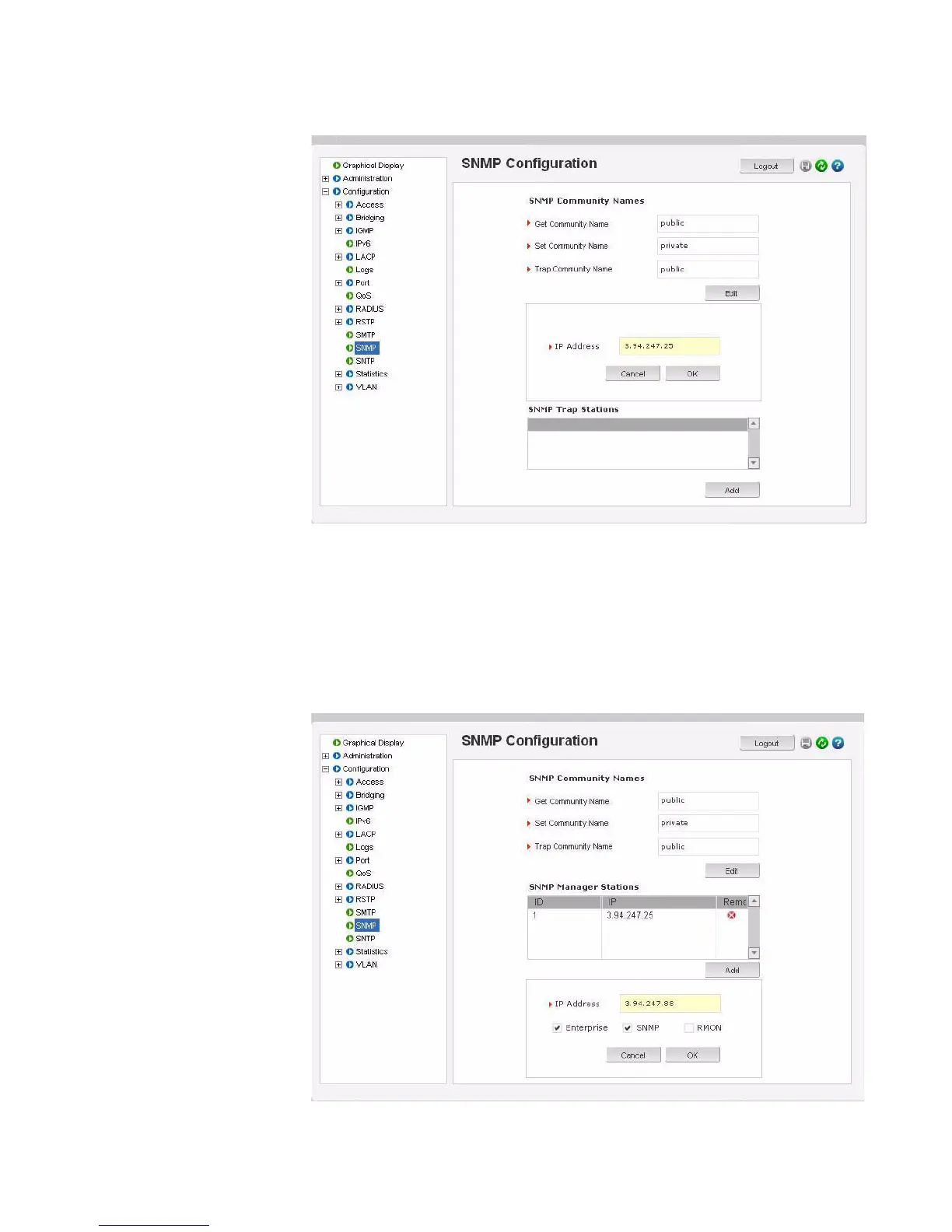

Z When adding SNMP trap receivers, click on the Add button on the
SNMP menu screen.
Z Make sure that each station can be pinged from the switch by using the
Administration > Ping menu.
Z Determine which sorts of traps each station will receive, as shown
above. If not sure, select all three types.
Z When done adding trap receivers, click OK.
