2.2 New Console (Z820) Installation
2.2.1 Preparative

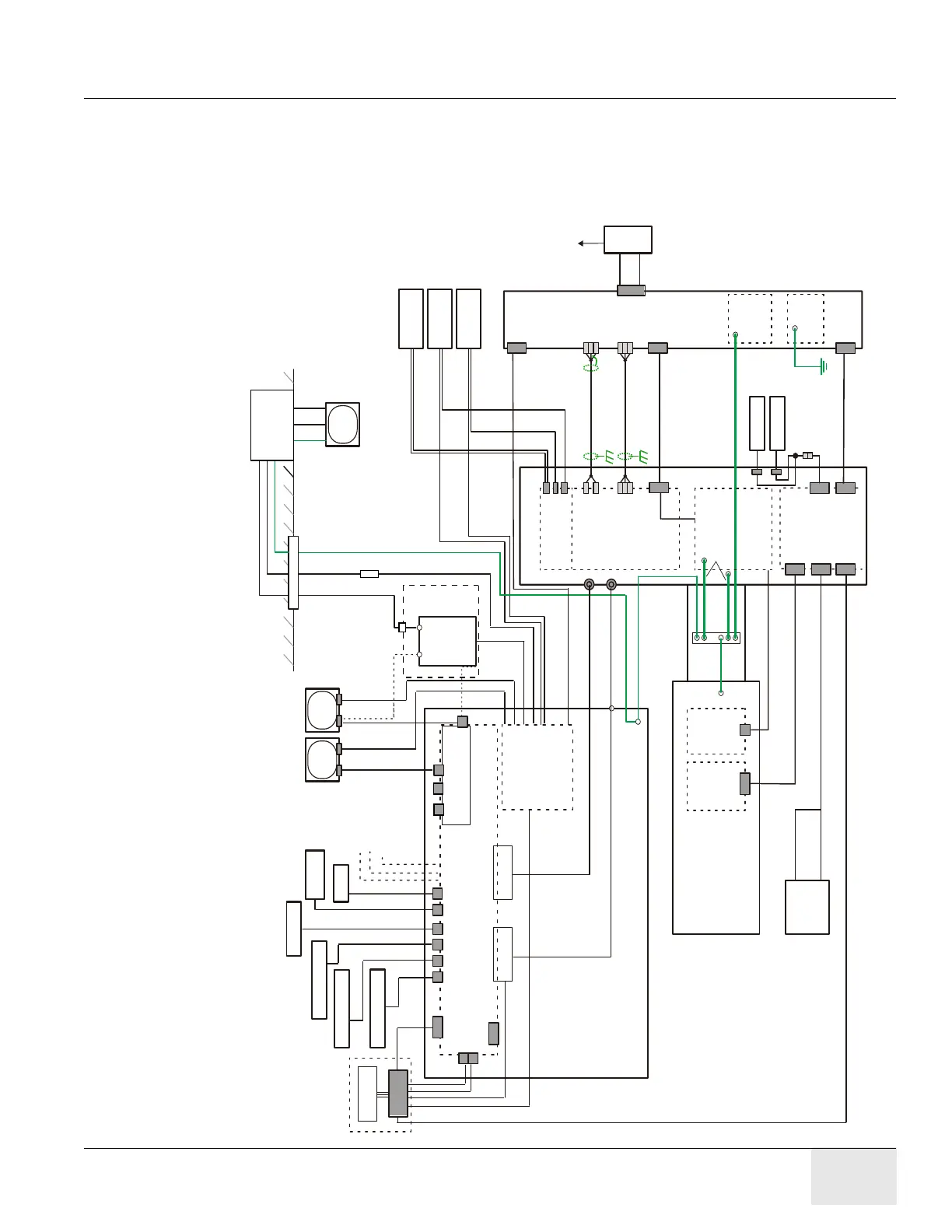

Figure 2-1 System Interconnect Diagram (with Z820 Host Computer)
RUN # 102
LAN (RJ45)
RUN # 103
DAS Data (Fiber)
RUN # 101 Scan INTL (Interlock)
RUN # 053
Console Power
NIO 16 Console
RUN # 104 Table IF
RUN # 054 120 VAC (bundle)
J28
Table
Footswitch
Footswitches
System Ground Bus
Vault Ground
Bulkhead
TGPG
Footswitch
Scan Display
Console Monitors
COM
Keyboard
#2 GND
J26
Footswitch
Mouse
Media Tower
Barcode Reader
EXT HDD
InSite Modem
AW
Power Panel
Ceiling
5116219
5548852 (DVI)
22132195323527
Power
Video
Splitter
Out Out
In
5573673
5573770
Monitor
In room Monitor
Optic
IPC PANEL
Injector
Power
Respiratory
Monitor
EKG
Monitor
Foot SW HHC
GTCB
Power Power Signal
Trackball
J9
Signal
Signal
RUN #055
1/0 Ground
1/0 GND
RUN #056
#2 Ground
DIP Ethernet
RUN #
/KTCB
DP1
DP0
DP2DP3
Video Card
DP
Host Computer
Hospital Net
GSCB
GSCB Power
5404262
5408703
5408703
DVI
DVI
GSCB Cable
Audio In/Out
/J28-2
Gantry
(DVI)
DVI
5432953-4
5432953-3
PDU
050
HVDC Power
RUN #
051
HVAC
Axial Mtr Power
RUN #
120/208Y Power
052
HVDC
LVAC 120V
Power Pan
RUN #
100
Control
System InterconnectIRU=
J11
TS1 TS2 TS4
TS2 TS3 TS5
Power Pan
* *
* Shields grounded with clamp at gantry base.
J1
TS4
UPS
To A1 Power DISCONNECT
120VAC 120VAC
2391751
2391751-3
5169224
In Console
Junction Box
