Chapter 2 - Upgrade Procedure Page 27
2.) Move and place the console to the operator room.
3.) Adjust two rubber footer to prevent console from sliding.

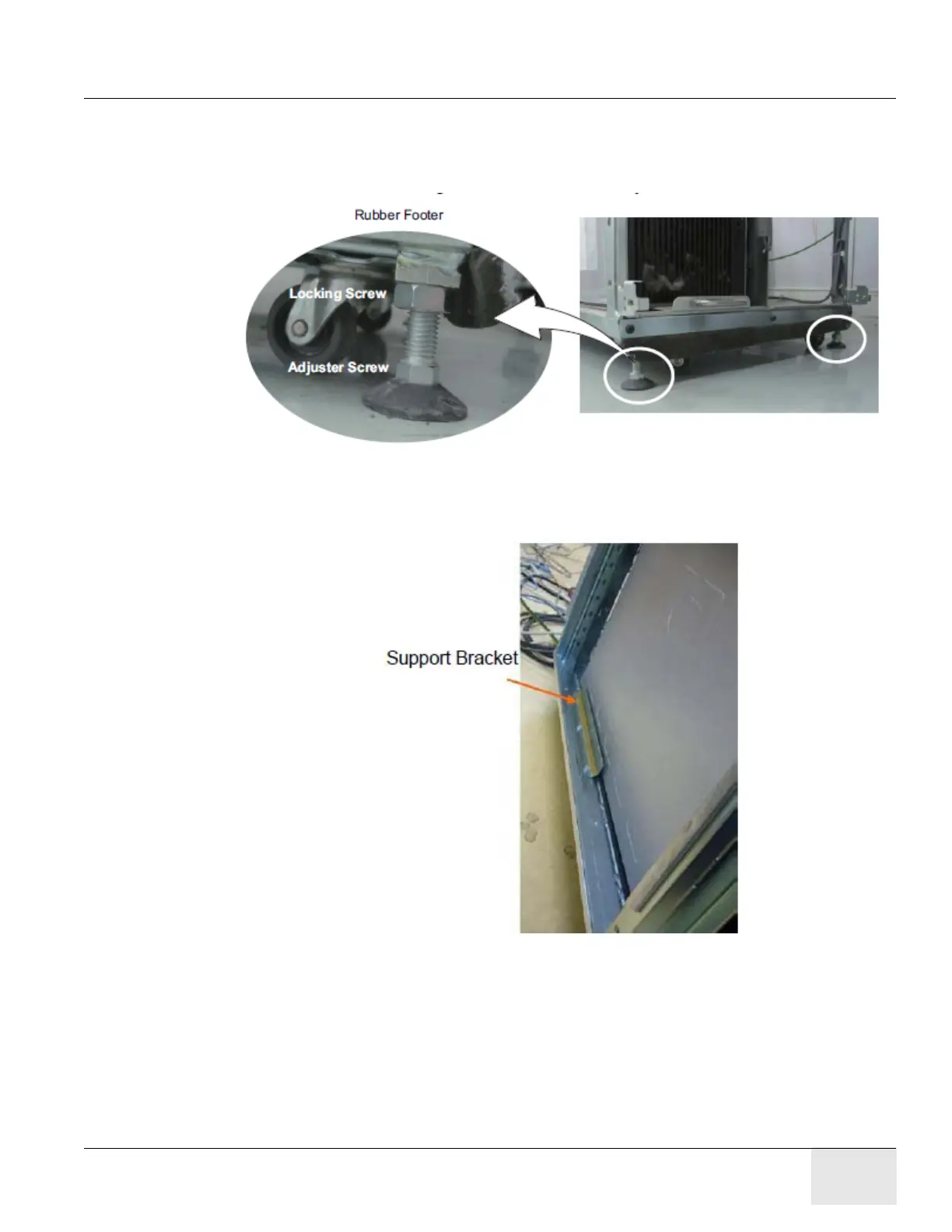

Figure 2-5 Rubber Footer Adjustment
4.) Remove the Host PC support bracket from left side of Z820.
Figure 2-6 Host PC Support Bracket
2.2.3 GPU Card Installation
Note: If customer does not purchase ASiR option, please ignore this section.
Please refer to ASiR Upgrade Installation Manual (5344359-1EN_r5 or later) to install GPU card
(shipped with B77092CB) in Z820 Host Computer.
