GE S2020 - Figure 85: RJ45 Port

GE Reason Switches
Chapter 9 – Installation
262
REASON SWITCHES-TM-EN-3

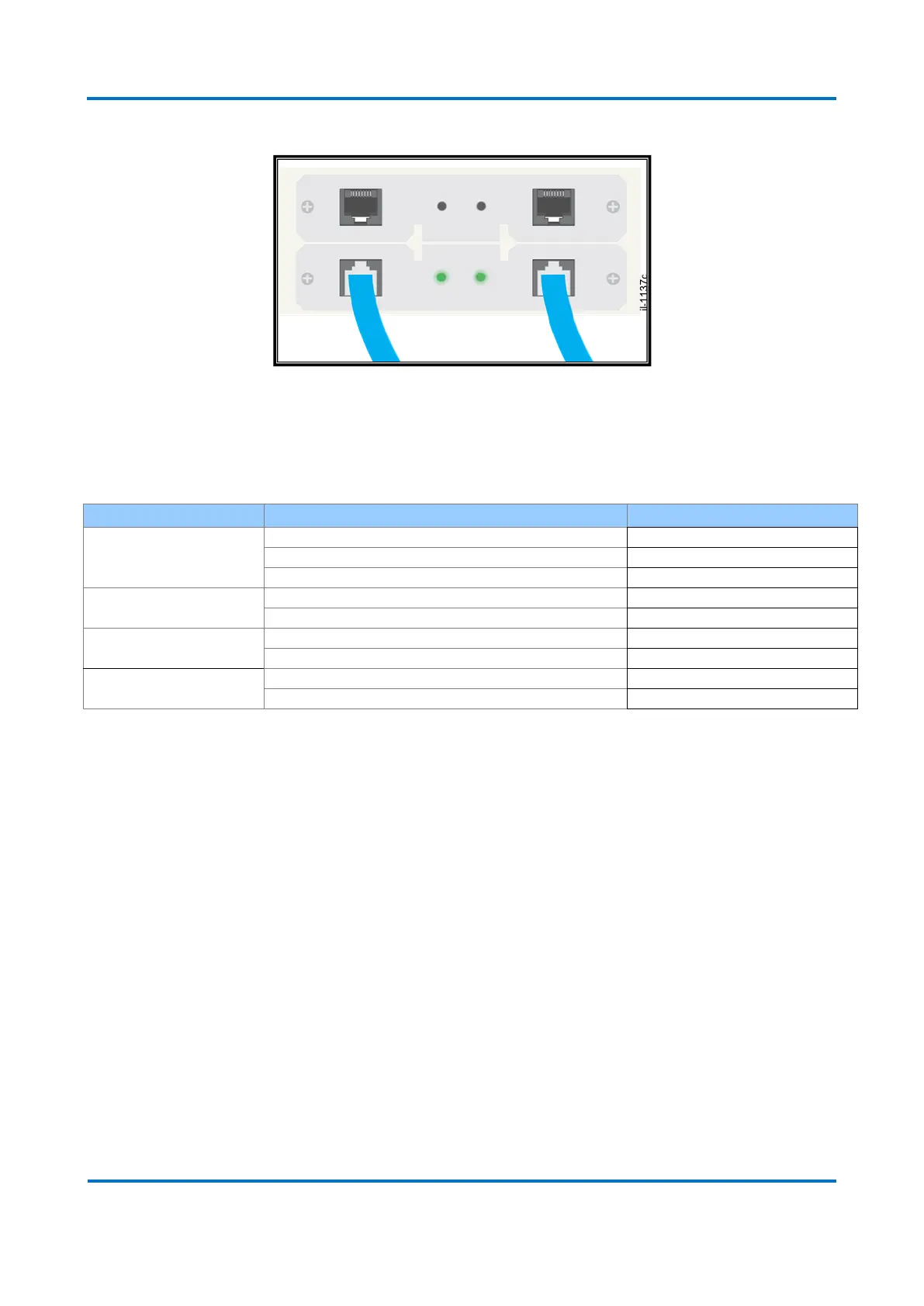

Figure 85: RJ45 port
S2020 and S2024G HMI have one LED per port, indicating information as follows.
Information
Colour
Description
Link
Off
No connection
Orange
10/100 Mbps connection
Green
1000 Mbps connection
Sync
Off
PTP clock unsynchronized
Green
PTP clock synchronized
Power (1 and 2)
Off
Power Supply off
Green
Power Supply operating
Failsafe
Off
Failsafe relay non-operating
Green
Failsafe relay operation
