2 Mechanical Implementation
All GE Reason Switches have similar hardware architectures, the equipment housing
is composed by metalwork where the boards are fixed. After mounting, a cover is
mounted in the top side of the equipment.
GE Reason Switches are 19’’ rack mounting with 1U high (44.45 mm) and a depth of
310 mm. The case is pre- finished steel painted with epoxy paint.

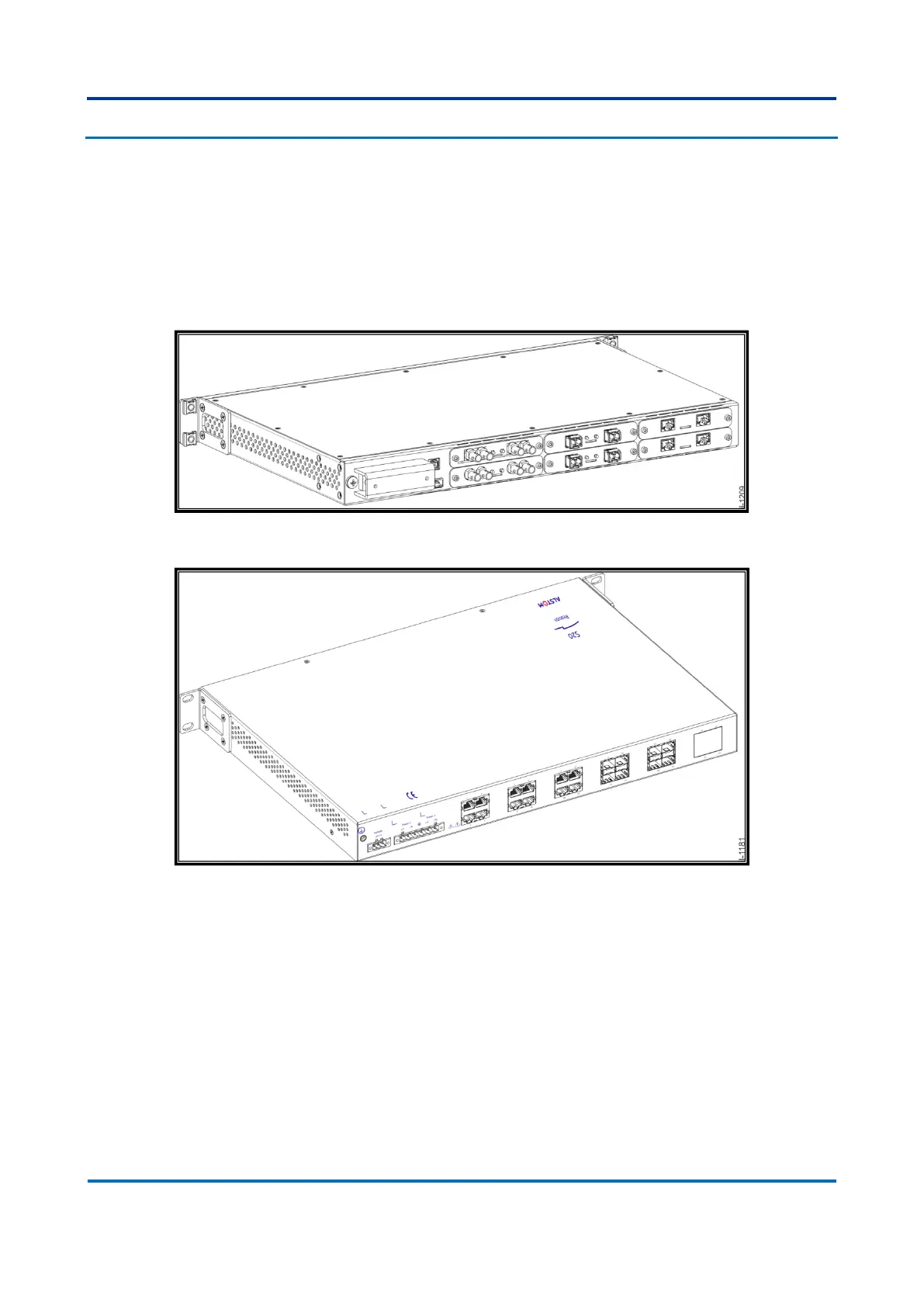

Figure 2: T1000 Switch
Figure 3: S2020 Switch
