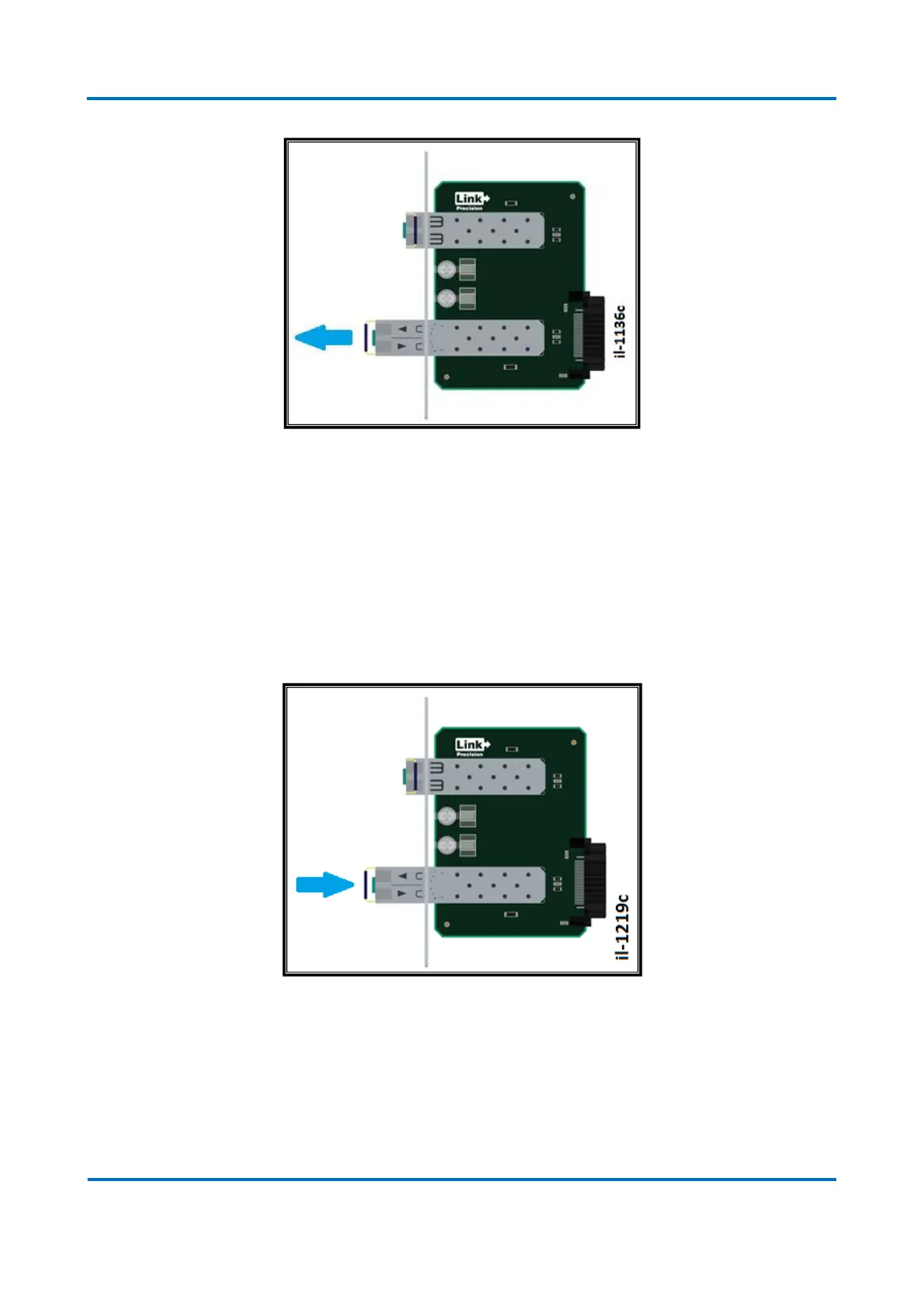

Figure 94: Removal direction of the SFP transceiver
Special attention should be paid when inserting the SFP transceiver. Figure below
illustrates the adequate orientation to SFP modules installed both in upper and lower
slots. When installing the SFP transceivers, these shall be inserted with the safety
catch locked in position.
Be sure that the SFP transceivers are completely inserted and that they are locked in
position at the end of its insertion.
Figure 95: Insertion module of the SFP transceiver
