SecoGear 24kV-27kV Air Insulation Switchgear
14

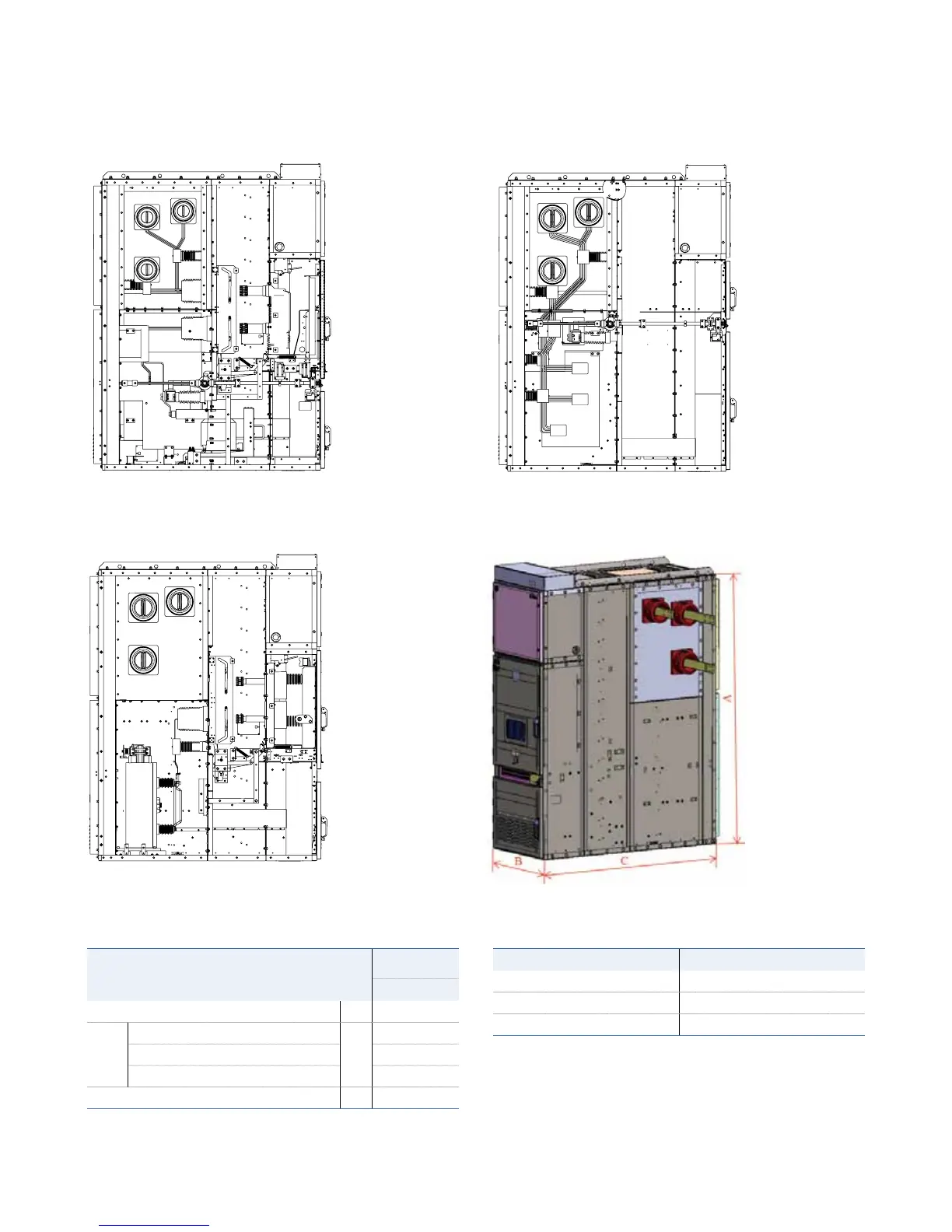

Figure 3/9: Incoming with ES & VT panel (1250/2500A) Figure 3/10: Riser with ES panel (1250/2500)
Figure 3/11: CPT panel (2500A)
Figure 3/12: Typical dimensions and Weights of SecoGear
(including withdrawable circuit-breaker parts)
Description
Dimension in
mm
27kV
Height A 2400
Width
Rated current of branch 1250A 31.5kA
B
800
VT
Rated current of branch 2500A 31.5kA 1000
Depth C 1800
Rated current Weight
A Kg
1250 800-1000
2500 1000-1200
